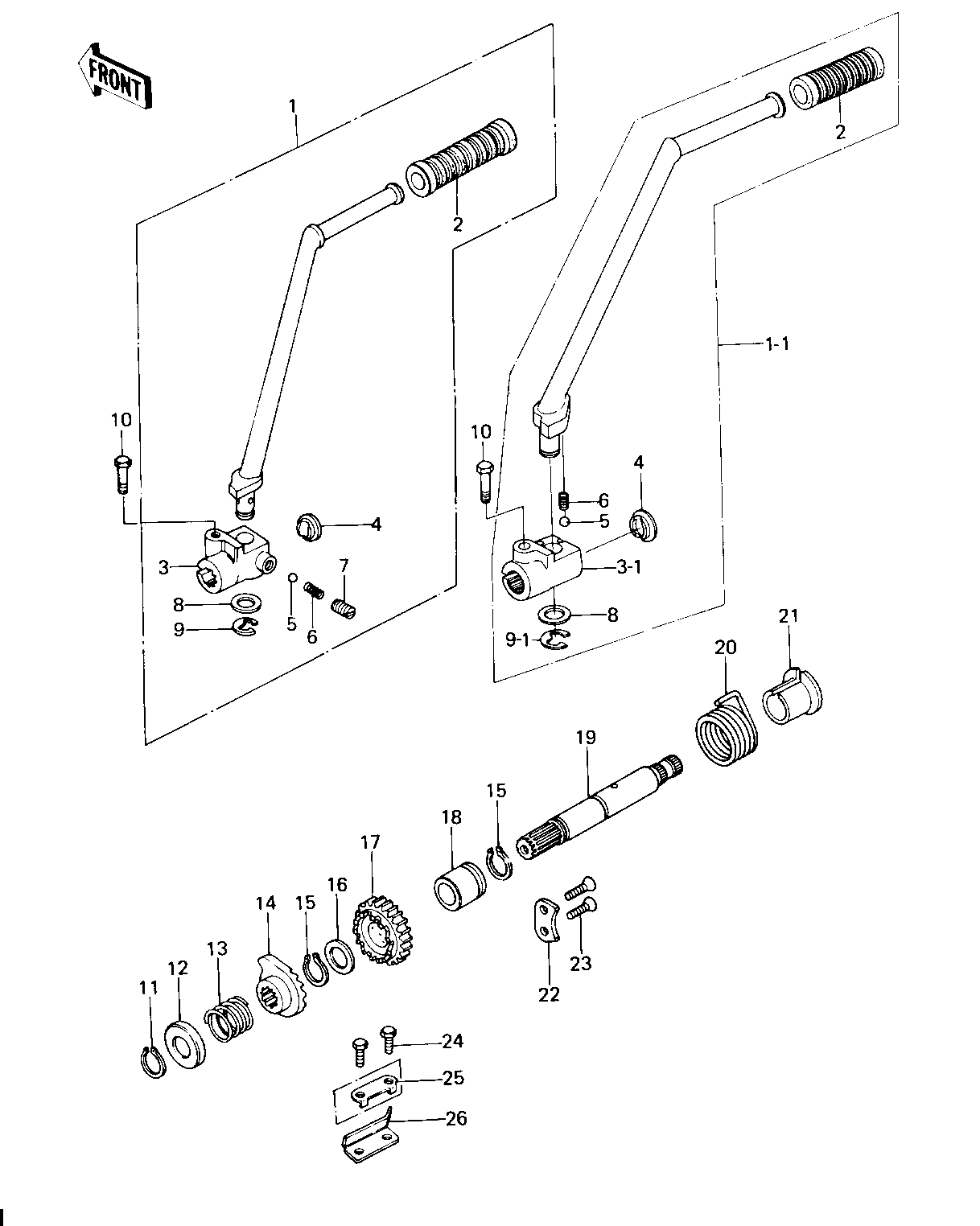

1978 Custom - KICKSTARTER MECHANISM

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PEDAL ASSY,KICK 1 13064-1005 2
PEDAL ASSY,KICK 1-1 13064-1005 2
RUBBER KICK PEDAL 2 13063-004 2
BOSS,KICK PEDAL 3 13061-1002 2 USE FOR 13064-1003
BOSS,KICK 3-1 13061-1008 2 USE FOR 13064-1006
PLUG,A,KICKSTARTER 4 92066-058 2
BALL STEEL 1/4' 5 600A0800 2
SPRING 6 92081-154 2
PLUG,B,KICKSTARTER 7 92066-061 2 USE FOR 1304-1003
WASHER,PLAIN 8 92022-1019 2
CIRCLIP 10MM 9 482J0100 2 USE FOR 1304-1003
CIRCLIP 10MM 9-1 482J0100 2 USE FOR 1304-1005
BOLT-HEX HEAD,6X32 10 110N0632 2
CIRCLIP,19MM 11 480J1900 2
CAP,KICKSTARTER 12 92102-008 2
SPRING RATCHET 13 92081-104 2
RATCHET,KICK SHAFT 14 13078-011 2
CIRCLIP, 20MM 15 480J2000 2
WASHER THRUST 16 92022-112 2
GEAR,KICKSTARTER,20T 17 13068-035 2
BUSHING,KICK SHAFT 18 92028-175 2
SHAFT,KICKSTARTER 19 13066-045 2
SPRING,KICK RETURN 20 92082-006 2
GUIDE,KICK SPRING 21 13070-009 2
PLATE-DRUM LEV POSTION 22 13169-007 2
SCREW CNTSNK HD 6X12 23 221B0612 2
BOLT-UPSET 24 112G0614 2
WASHER,LOCK,6MM 25 92024-075 2 KZ860-C1/C2
STOPPER,KICKSTARTER 26 13072-018 2
