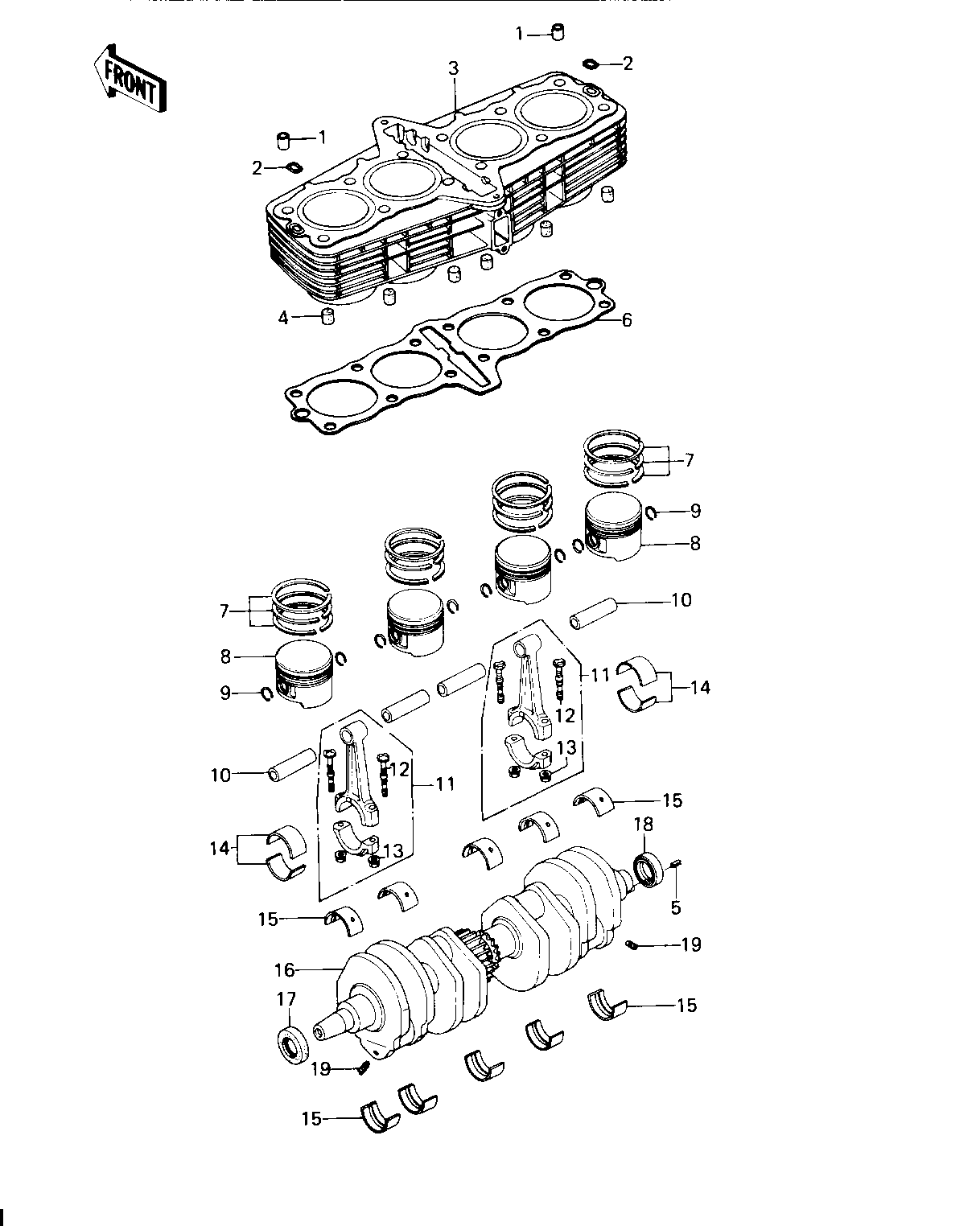

1978 Custom - CYLINDERS/PISTONS/CRANKSHAFT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN,11X14X12.3 1 92043-1266 2
RING-O 2 92055-1147 2
CYLINDER 3 11005-1039 2
CYLINDER 3 11005-1039 2
DAMPER RUBBER 4 92075-075 2
PLUG,DAMPER 4 92066-1016 2
PIN-SPRING,4X8 5 555A0408 2
GASKET,CYLINDER BASE 6 11009-046 2
RING SET,PISTON,STD 7 13008-059 2
RING SET,0.020",O.S. 7 13025-061 2
RING SET,0.040",O.S. 7 13024-060 2
PISTON,STD 8 13001-1002 2
PISTON,STD 8 13001-1002 2
PISTON,0.020",O.S. 8 13029-077 2
PISTON,0.040",O.S. 8 13027-069 2
CIRCLIP PISTON PIN 9 92036-005 2
PIN-PISTON 10 13002-032 2
CONNECTING ROD ASSY, 11 13251-1007-JJ 2 "H" MARK
CONNECTING ROD ASSY 11 13251-1003-HH 2 "H" MARK
CONNECTING ROD ASSY, 11 13251-1007-JJ 2 "I" MARK
CONNECTING ROD ASSY, 11 13251-1007-JJ 2 "I" MARK
CONNECTING ROD ASSY, 11 13251-1007-JJ 2 "J" MARK
CONNECTING ROD ASSY, 11 13251-1007-JJ 2 "J" MARK
BOLT,CONNECTING ROD 12 92001-175 2
BOLT,CONNECTING ROD 12 92001-1793 2
NUT,CONNECTING ROD 13 92016-060 2
METAL,CONNECT ROD BR 14 13034-050 2 GREEN OR "A" MARK
METAL,CONNECT ROD BR 14 13034-051 2 BLACK OR "B" MARK
METAL,CONNECT ROD BR 14 13034-052 2 BROWN OR "C" MARK
BUSHING,CRANKSHAFT 15 92028-1102 2
CRANKSHAFT ASSY 16 13037-069 2
OIL SEAL,HSCY22397 17 92050-080 2
OIL SEAL,HSCY25397 18 92050-081 2
SCREW,SLOTTED,6X8 19 291H0608 2
