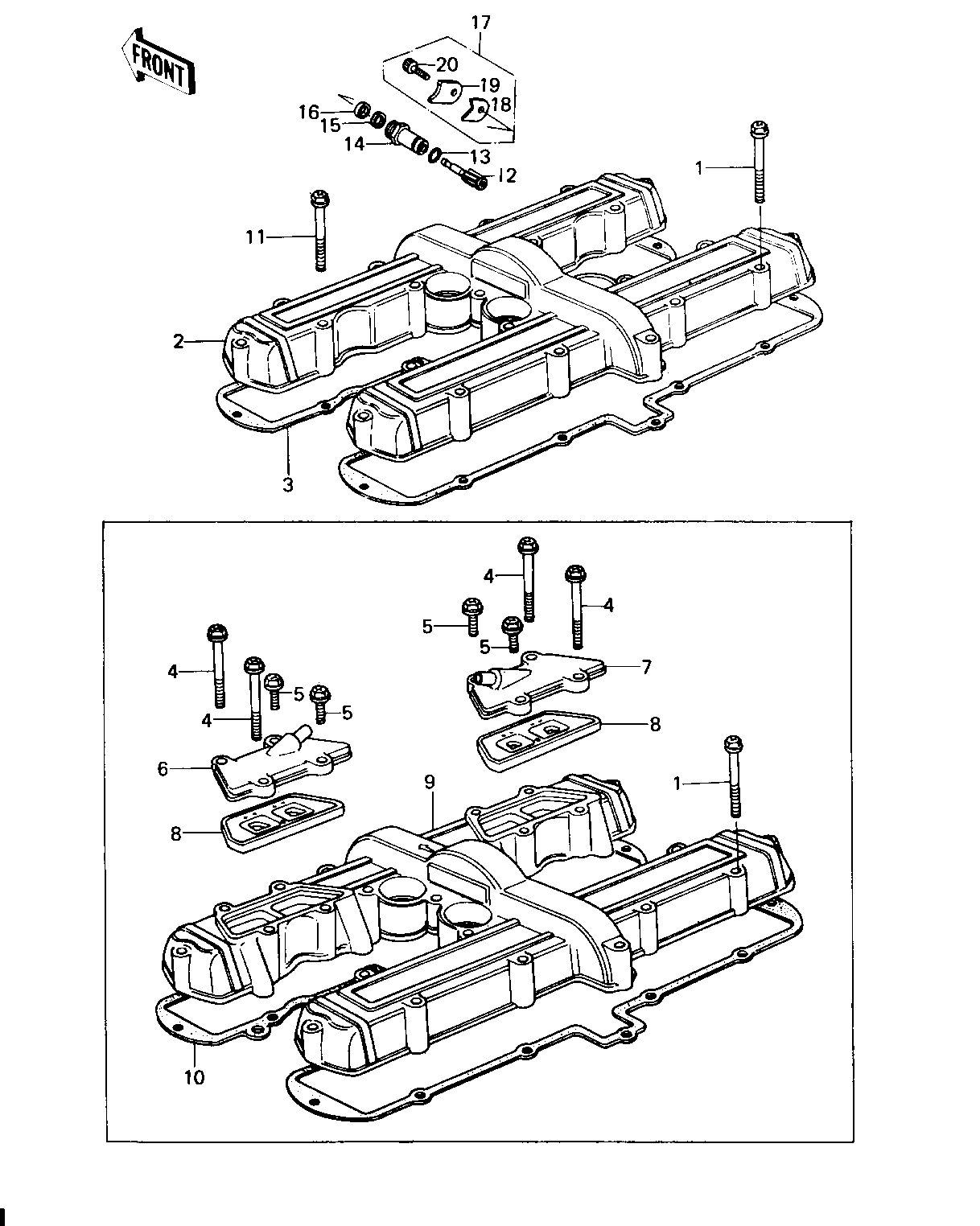

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,HEX HEAD,6X45 | 1 | 92001-165 | 20 | ||
| COVER,CYLINDER HEAD | 2 | 11022-009-2H | 1 | KZ860-C1/C2 | |
| COVER,CYLINDER HEAD | 2 | 14025-1065 | 1 | KZ860-C3 | |
| GASKET,CYL HEAD COVE | 3 | 11009-1025 | 1 | KZ860-C1/C2 | |
| GASKET,CYL HEAD COVE | 10 | 11009-1065 | 1 | KZ860-C3 | |
| BOLT,HEX HEAD,6X45 | 11 | 92001-165 | 4 | KZ860-C1/C2 | |
| BOLT,HEX HEAD,6X45 | 11 | 92001-165 | 4 | KZ860-C3 | |
| GEAR,TACHOMETER,10T | 12 | 13223-011 | 1 | ||
| RING-O,10MM | 13 | 92055-1149 | 1 | ||
| OIL SEAL | 15 | 92050-075 | 1 | ||
| GASKET,TACHOMETER GE | 16 | 92065-103 | 1 | ||
| HOLDER SET,TACHOMETE | 17 | 13091-5001 | 1 | ||
| HOLDER,TACHOMETER2.3 | 19 | 13091-1008 | 1 | ||
| BOLT,6X14 | 20 | 120P0614 | 1 |
