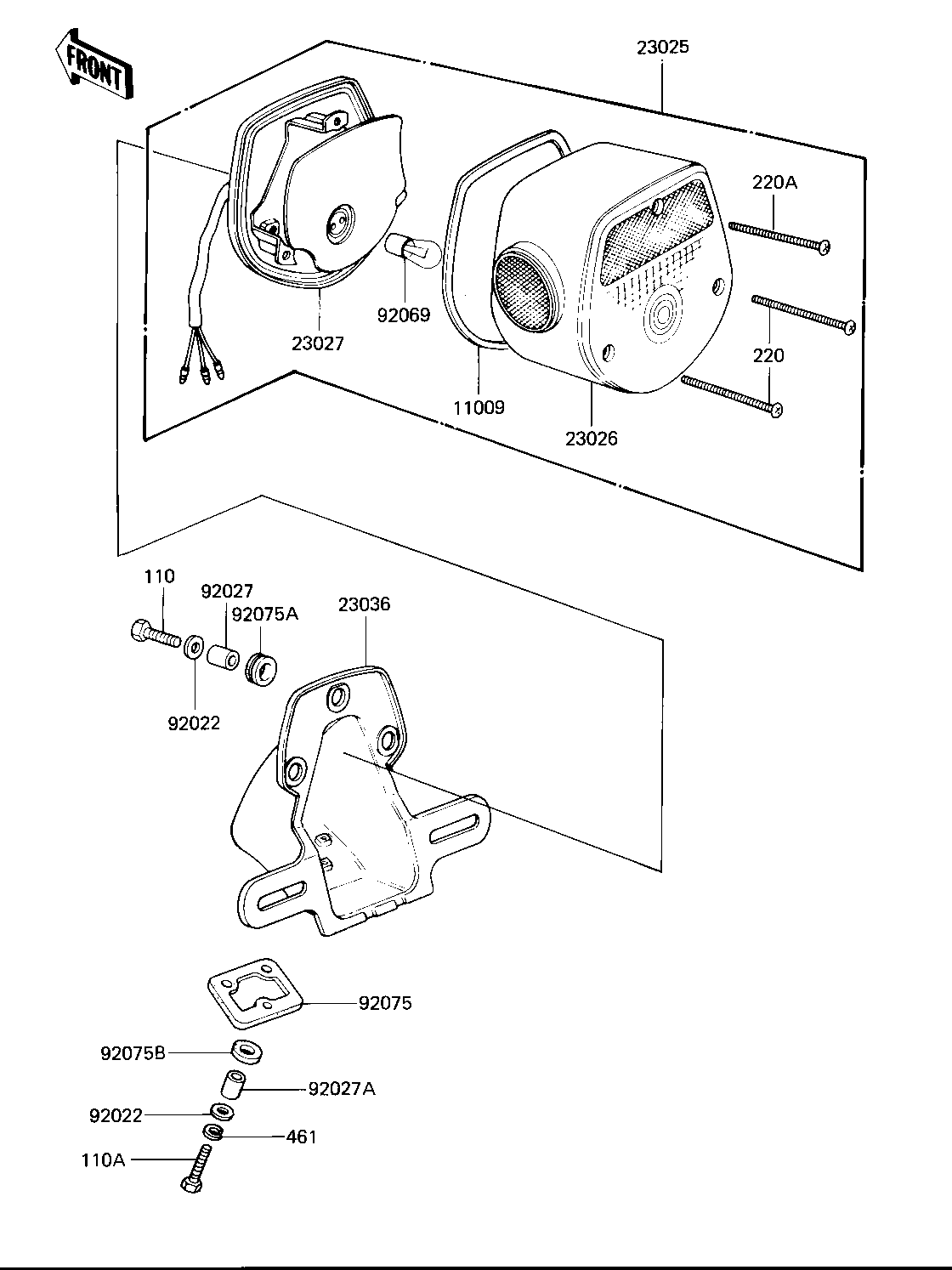

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TAIL LAMP LENS | 11009 | 23028-019 | 1 | ||
| LAMP-TAIL | 23025 | 23025-1031 | 1 | ||
| LENS,TAIL LAMP | 23026 | 23026-028 | 1 | ||
| BODY-COMP-TAIL LAMP | 23027 | 23027-1019 | 1 | ||
| BRACKET TAIL LAMP | 23036 | 23036-1036 | 1 | ||
| WASHER 6.5X20X1.6T | 92022 | 92022-125 | 6 | ||
| COLLAR,6.8X10X8.5 | 92027 | 92027-129 | 3 | ||
| COLLAR 6.8X10X14.5 | 92027A | 92027-156 | 3 | ||
| BULB,12V 32/3CP | 92069 | 92069-059 | 1 | ||
| DAMPER RUBBER,RR FEND | 92075 | 35039-004 | 1 | ||
| DAMPER RUBBER | 92075A | 92075-076 | 3 | ||
| DAMPER RUBBER,RR FEND | 92075B | 92075-121 | 3 | ||
| BOLT-UPSET,6X20 | 110 | 112G0620 | 3 | ||
| BOLT-UPSET | 110A | 112G0625 | 3 | ||
| SCREW PAN HEAD 4X50 | 220 | 220E0450 | 2 | ||
| SCREW | 220A | 220R0455 | 1 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 3 |
