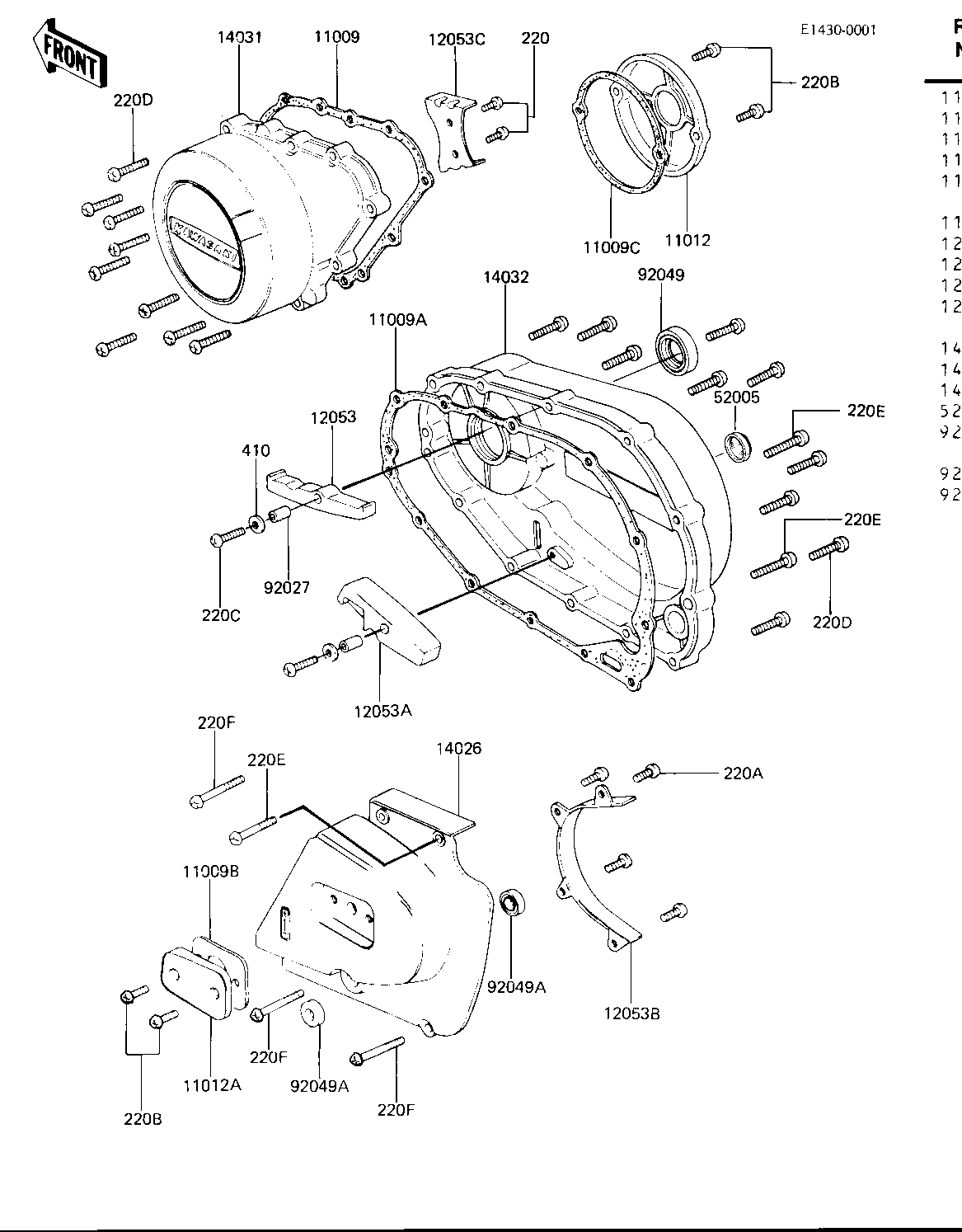

1981 KZ440-B2 - ENGINE COVERS ('81 B2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,GENERATER COV. | 11009 | 11009-1032 | 1 | ||
| GASKET,CLUTCH COVER | 11009A | 11009-1033 | 1 | ||
| GASKET,CLUTCH ADJ CAP | 11009B | 14049-004 | 1 | ||
| GASKET,BREAKER COVER | 11009C | 14050-010 | 1 | ||
| COVERBRK POINT,BUFF | 11012 | 14027-019-80 | 1 | ||
| COVER,CLUTCH ADJUSTNG | 11012A | 14028-006-80 | 1 | ||
| GUIDE,PRIMARY CHAIN | 12053 | 12053-1004 | 1 | ||
| GUIDE,PRIMARY CHAIN | 12053A | 12053-1005 | 1 | ||
| GUIDE,CHAIN | 12053B | 12053-1009 | 1 | ||
| GUIDE,CHAIN | 12053C | 12053-1014 | 1 | ||
| COVER CHAIN | 14026 | 14026-1011-80 | 1 | ||
| COVER,GENERATOR,BUFF | 14031 | 14031-1023 | 1 | ||
| COVER,CLUTCH | 14032 | 14032-1038 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| COLLAR,8X15 | 92027 | 92027-1079 | 2 | ||
| OIL SEAL,R.H CRNKSFT | 92049 | 92050-065 | 1 | ||
| OIL SEAL,TB13225.5 | 92049A | 92051-005 | 2 | ||
| SCREW PAN HEAD 5X8 | 220 | 220B0508 | 2 | ||
| SCREW PAN HEAD 6X10 | 220A | 220B0610 | 4 | ||
| SCREW PAN HEAD 6X18 | 220B | 220B0618 | 4 | ||
| SCREW PAN HEAD 6X25 | 220C | 220B0625 | 2 | ||
| SCREW PAN HEAD 6X30 | 220D | 220B0630 | 19 | ||
| SCREW PAN HEAD 6X40 | 220E | 220B0640 | 3 | ||
| SCREW PAN HEAD 6X50 | 220F | 220B0650 | 3 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 2 |
| GASKET,GENERATER COV. | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CLUTCH COVER | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CLUTCH ADJ CAP | |
| REF # | 11009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,BREAKER COVER | |
| REF # | 11009C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVERBRK POINT,BUFF | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CLUTCH ADJUSTNG | |
| REF # | 11012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,PRIMARY CHAIN | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,PRIMARY CHAIN | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,CHAIN | |
| REF # | 12053B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,CHAIN | |
| REF # | 12053C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER CHAIN | |
| REF # | 14026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,GENERATOR,BUFF | |
| REF # | 14031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CLUTCH | |
| REF # | 14032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GAUGE,OIL LEVEL | |
| REF # | 52005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,8X15 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,R.H CRNKSFT | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,TB13225.5 | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X8 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X10 | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X18 | |
| REF # | 220B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X25 | |
| REF # | 220C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X30 | |
| REF # | 220D |
|---|---|
| PART NUMBER | |
| QUANTITY | 19 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X40 | |
| REF # | 220E |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X50 | |
| REF # | 220F |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
