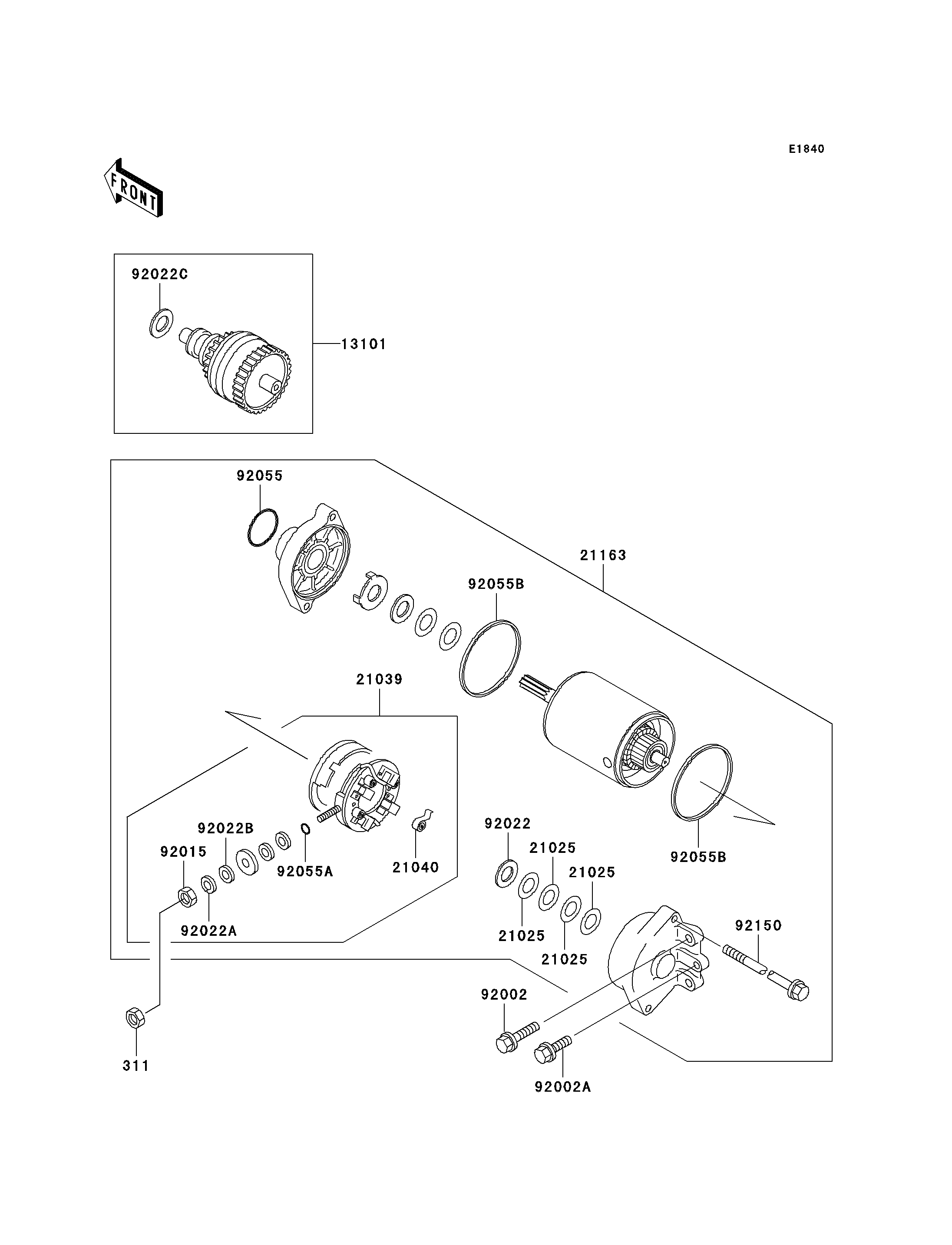

1999 SXI PRO - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
311
13101
21025
21025
21025
21025
21039
21040
21163
92002
92002A
92015
92022
92022A
92022B
92022C
92055
92055A
92055B
92055B
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX,6MM 311 311R0600 1
GEAR-ASSY 13101 13101-3708 1
WASHER,9.1X18X0.2 21025 21025-011 4
BRUSH,CARBON 21039 21039-3703 1
SPRING-BRUSH 21040 21040-1055 4
STARTER-ELECTRIC 21163 21163-3709 1
BOLT,6X25 92002 92002-3714 2
BOLT,6X12 92002A 92002-3763 1
NUT,6MM 92015 92015-3710 1
WASHER,9.1X18X0.8 92022 92022-1132 1
WASHER,6MM 92022A 92022-3711 1
WASHER,6MM 92022B 92022-3713 1
WASHER,12X24X1.0 92022C 92022-3731 1
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 1
RING-O,STARTER MOTOR 92055B 92055-1381 2
BOLT 92150 92150-3772 2
