Parts Diagrams |

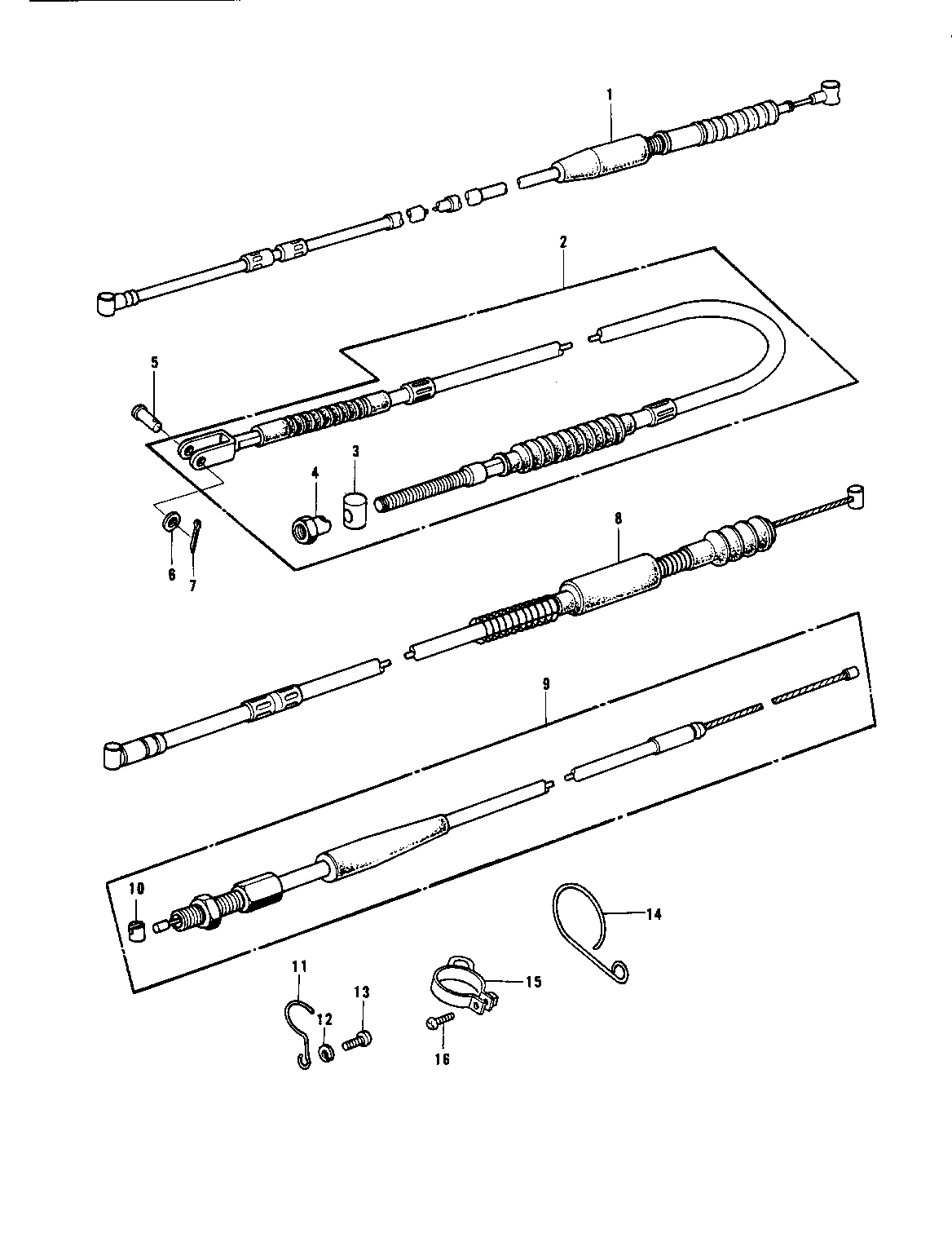

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CABLE,FRONT BRAKE | 1 | 54005-084 | 1 | ||
| CABLE,REAR BRAKE | 2 | 54022-029 | 1 | ||
| PIN-BRAKE ROD | 3 | 92043-065 | 1 | ||
| NUT-BRAKE ROD ADJUST | 4 | 92015-042 | 1 | ||
| PIN R BRK CABLE JOINT | 5 | 92043-034 | 1 | ||
| WASHER PLAIN 6MM | 6 | 411B0600 | 1 | ||
| PIN COTTER 1.6X15 | 7 | 550D1615 | 2 | KX400 | |
| PIN COTTER 2.0X15 | 7 | 550D2015 | 2 | KX400-A2 | |
| CABLE,CLUTCH | 8 | 54011-063 | 1 | ||
| CABLE,CONTROL | 9 | 54012-126 | 1 | ||
| PIECE,THROTTLE CABLE | 10 | 54013-001 | 1 | ||
| CLAMP,CABLE | 11 | 92037-092 | 1 | ||
| WASHER SPRING 6MM | 12 | 461F0600 | 1 | ||
| SCREW PAN HEAD 6X12 | 13 | 220B0612 | 1 | ||
| CLAMP,CABLE | 14 | 92037-159 | 1 | ||
| CLAMP,FRONT BRK CABLE | 15 | 92037-196 | 1 | ||
| SCREW PAN HEAD 6X20 | 16 | 220B0620 | 1 |
| CABLE,FRONT BRAKE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE,REAR BRAKE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-BRAKE ROD | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-BRAKE ROD ADJUST | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN R BRK CABLE JOINT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 1.6X15 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KX400 |
| PIN COTTER 2.0X15 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KX400-A2 |
| CABLE,CLUTCH | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE,CONTROL | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIECE,THROTTLE CABLE | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CABLE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CABLE | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,FRONT BRK CABLE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X20 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
