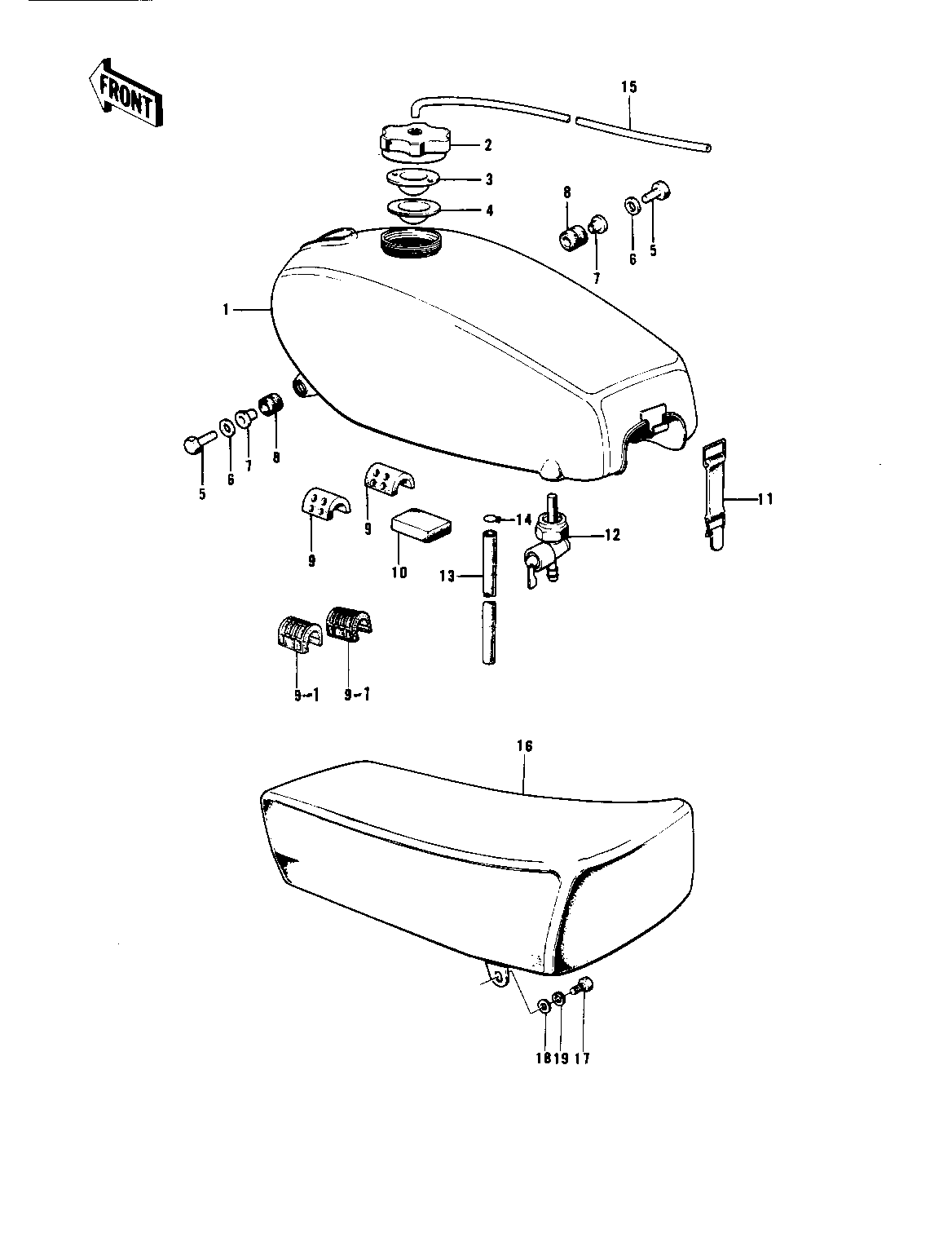

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK-FUEL,LIME GREEN | 1 | 51001-095-2G | 1 | KX400 | |
| TANK-FUEL,C.LIME | 1 | 51001-095-3X | 1 | KX400-A2 | |
| CAP,FUEL TANK | 2 | 51049-1002 | 1 | ||
| CAP,FUEL TANK | 2 | 51049-1002 | 1 | ||
| WASHER,FUEL TANK CAP | 3 | 51058-004 | 1 | ||
| GASKET,FUEL TANK CAP | 4 | 51059-012 | 1 | ||
| BOLT-UPSET | 5 | 112G0630 | 2 | ||
| WASHER SPRING 6MM | 6 | 461F0600 | 2 | ||
| COLLAR,FUEL TANK | 7 | 92027-216 | 2 | ||
| DAMPER RUBBER | 8 | 92075-197 | 2 | ||
| DAMPER RUBBER | 9 | 92075-198 | 2 | KX400 | |
| DAMPER RUBBER,FL TNK | 9-1 | 92075-215 | 2 | KX400-A2 | |
| MAT FUEL TANK | 10 | 51067-002 | 1 | KX400 | |
| BAND,FUEL TANK | 11 | 92072-076 | 1 | KX400 | |
| BAND,FUEL TANK | 11 | 92072-076 | 1 | KX400-A2 | |
| FUEL COCK ASSY | 12 | 51023-033 | 1 | ||
| HOSE,FUEL | 13 | 92059-144 | 1 | ||
| CLAMP-PIPE | 14 | 92037-072 | 2 | ||
| TUBE-VINYL,5X280 | 15 | 700Q05280 | 1 | ||
| SEAT-ASSY | 16 | 53001-113 | 1 | ||
| BOLT HEX HEAD 8X16 | 17 | 110N0816 | 2 | ||
| WASHER PLAIN 8MM | 18 | 411B0800 | 2 | ||
| WASHER SPRING 8MM | 19 | 461F0800 | 2 |
