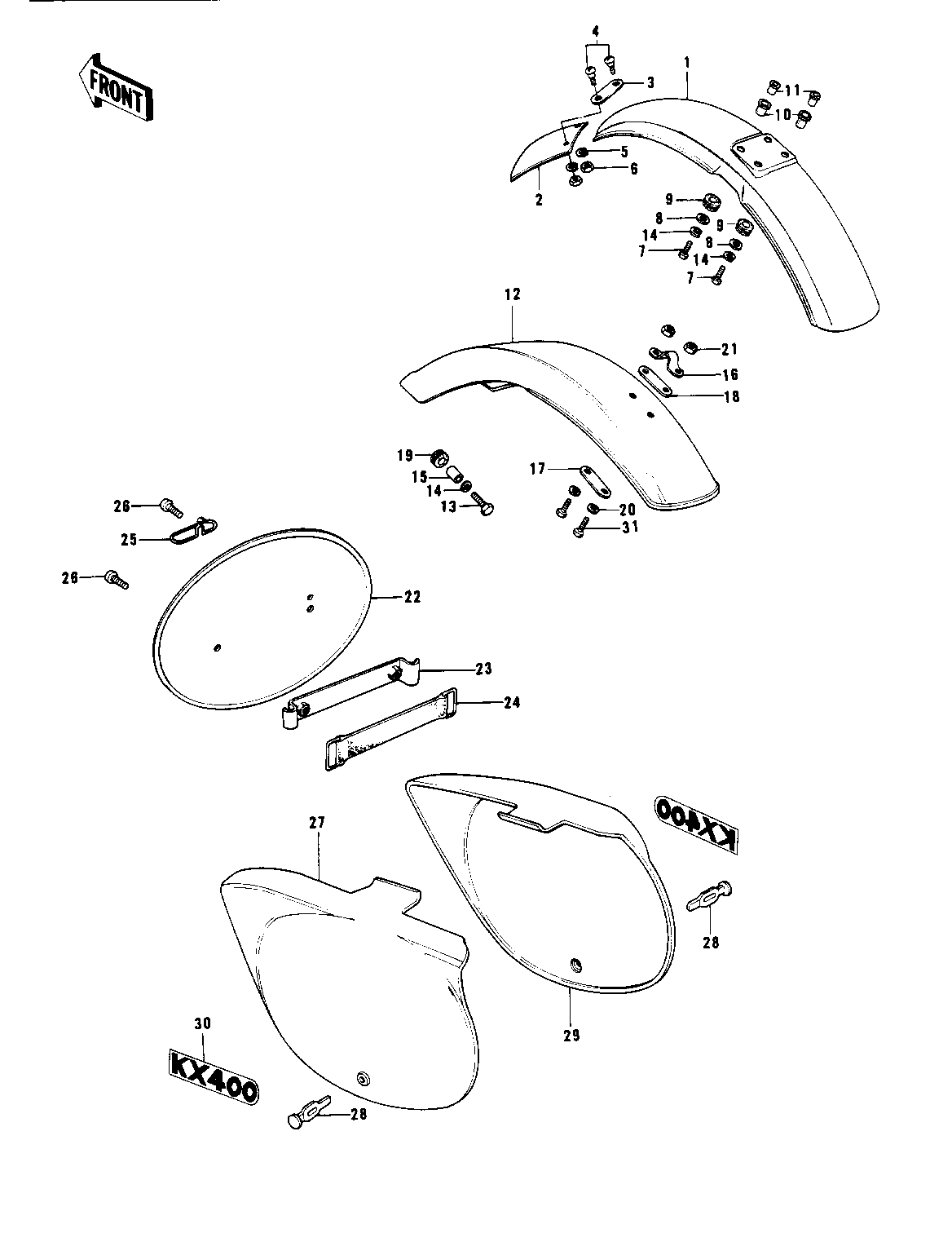

1975 KX400 - FENDERS/SIDE COVERS/NUMBER PLATE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FR 1 35004-096 1 KX400
FENDER-FR,BLACK 1 35004-096-10 1 KX400-A2
FLAP,FRONT FENDER 2 35019-005 1
PLATE,FENDER FLAP 3 35020-012 1
BOLT,5X12 4 92001-134 2
WASHER SPRING 5MM 5 461F0500 2
NUT,5MM 6 311B0500 2
BOLT-UPSET 7 112G0625 4
WASHER,PLAIN,7MM 8 92022-228 4
DAMPER RUBBER,RR FEND 9 92075-121 4
DAMPER RUBBER 10 92075-103 4
COLLAR 11 92027-194 4
FENDER-RR,BLACK 12 35022-132-10 1 KX400
FENDER-RR,BLACK 12 35022-132-10 1 KX400-A2
BOLT 6X22 13 112B0622 2 KX400
BOLT-UPSET 6X14 13 112B0614 2 KX400-A2
WASHER SPRING 6MM 14 461F0600 6
COLLAR 15 92027-122 2
BRACKET,REAR FENDER 16 35025-027 1
PLATE,REAR FENDER 17 35041-002 1
DAMPER RUBBER,FENDER 18 92075-245 2
DAMPER RUBBER 19 92075-118 2
WASHER PLAIN 6MM 20 411B0600 2
NUT,6MM 21 92019-019 2
PLATE,FRONT NUMBER 22 58029-031 1
BRACKET,NUMBER PLATE 23 58030-008 1
BAND BATTERY 24 92072-006 1
CLAMP,NUMBER PLATE 25 92037-158 1
SCREW,6X10 26 92009-1286 2
COVER,L.HSIDE 27 36001-051 1
BAND,SIDE COVER 28 92072-069 2
COVER,RH.SIDE 29 36007-045 1
EMBLEM,SIDE COVER 30 56018-208 2 KX400
EMBLEM,SIDE COVER 30 56018-229 2 KX400-A2
BOLT 6X22 31 112B0622 2
