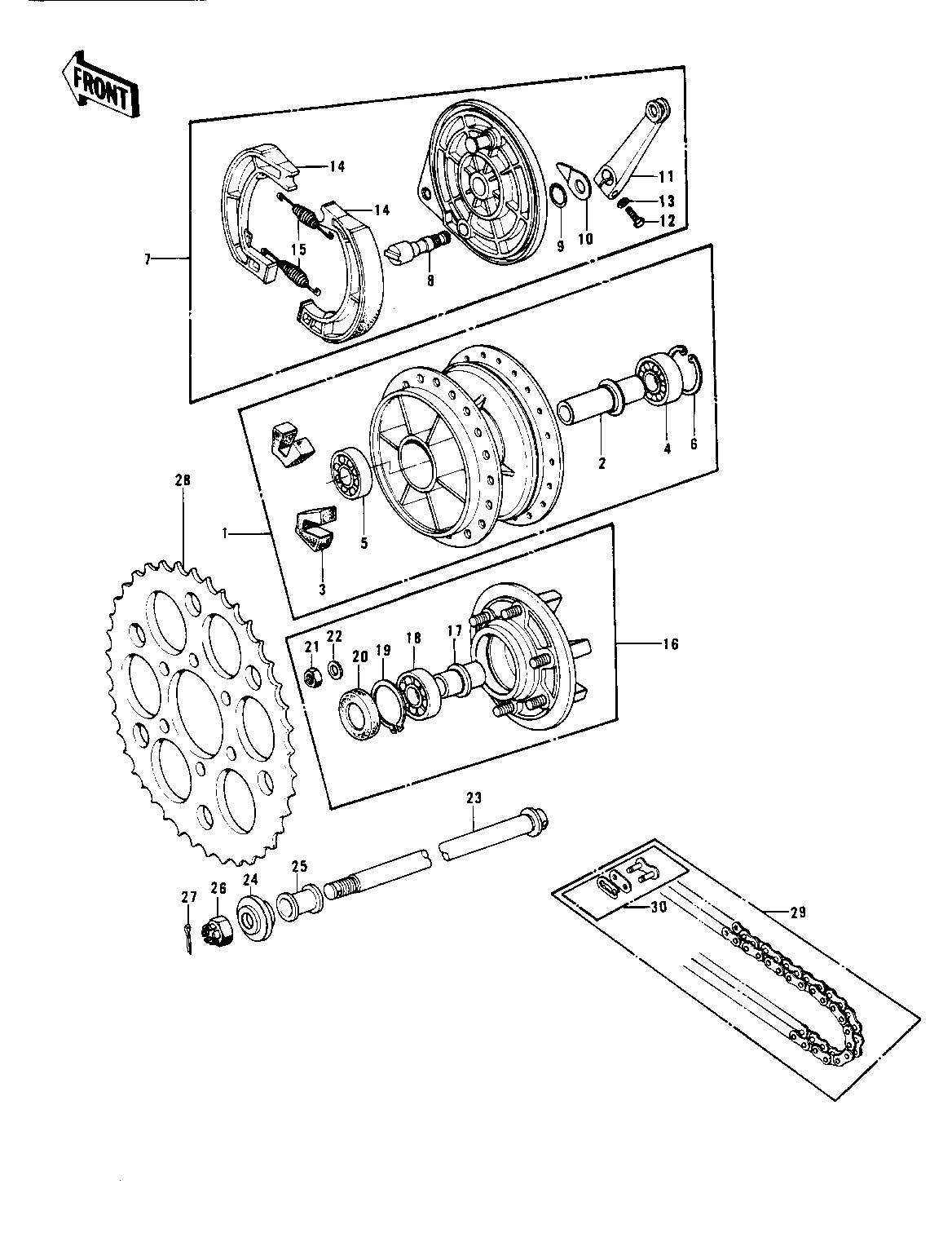

1975 KX400 - REAR HUB/BRAKE/CHAIN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM ASSY,RR BRK,BLK 1 42005-045-21 1
COLLAR,RR BRK DRUM 2 42010-028 1
DAMPER,REAR HUB SHOCK 3 42014-024 6
BEARING-BALL 4 601B6303U 1
BEARING BALL #6303 5 601B6303 1
CIRCLIP,47M/M 6 92033-1042 1
PANEL-ASY,RR BRK,BLK 7 42006-059 1
CAM SHAFT,RR BRK PNL 8 42026-016 1
DUST SHIELD BRAKE CAM 9 41051-001 1
INDICATOR,FR BRK SHOE 10 41085-017 1
LEVER,REAR BRAKE CAM 11 42029-038 1
BOLT-UPSET 12 112G0625 1
WASHER PLAIN 6MM 13 410B0600 1
SHOE,BRAKE 14 42019-011 2
SPRING-BRAKE SHOE 15 42020-004 2
COUPLING ASSY,RR BRK 16 42008-027 1
SLEEVE,COUPLING 17 42036-023 1
BEARING BALL #6205 18 601B6205 1
RING,SNAP,56.2M/M 19 92033-1043 1
OIL SEAL WTC35527 20 92052-006 1
NUT,8MM 21 92019-018 6
WASHER PLAIN 8MM 22 410B0800 6
AXLE,REAR 23 42031-051 1
COLLAR,REAR AXLE 24 42032-055 1
COLLAR,REAR AXLE 25 42032-056 1
NUT CASTLE,16MM 26 92015-055 1
PIN-COTTER,4.0X35 27 550D4035 1
REAR SPROCKET 46T 28 42041-155 1 STD
REAR SPROCKET 44T 28 42041-157 (1
REAR SPROCKET 48T 28 42041-154 (1
DR CHAIN 520X106 29 92057-097 1 DID520TM
CHAIN JOINT 520 30 92058-1002 1
