Parts Diagrams |

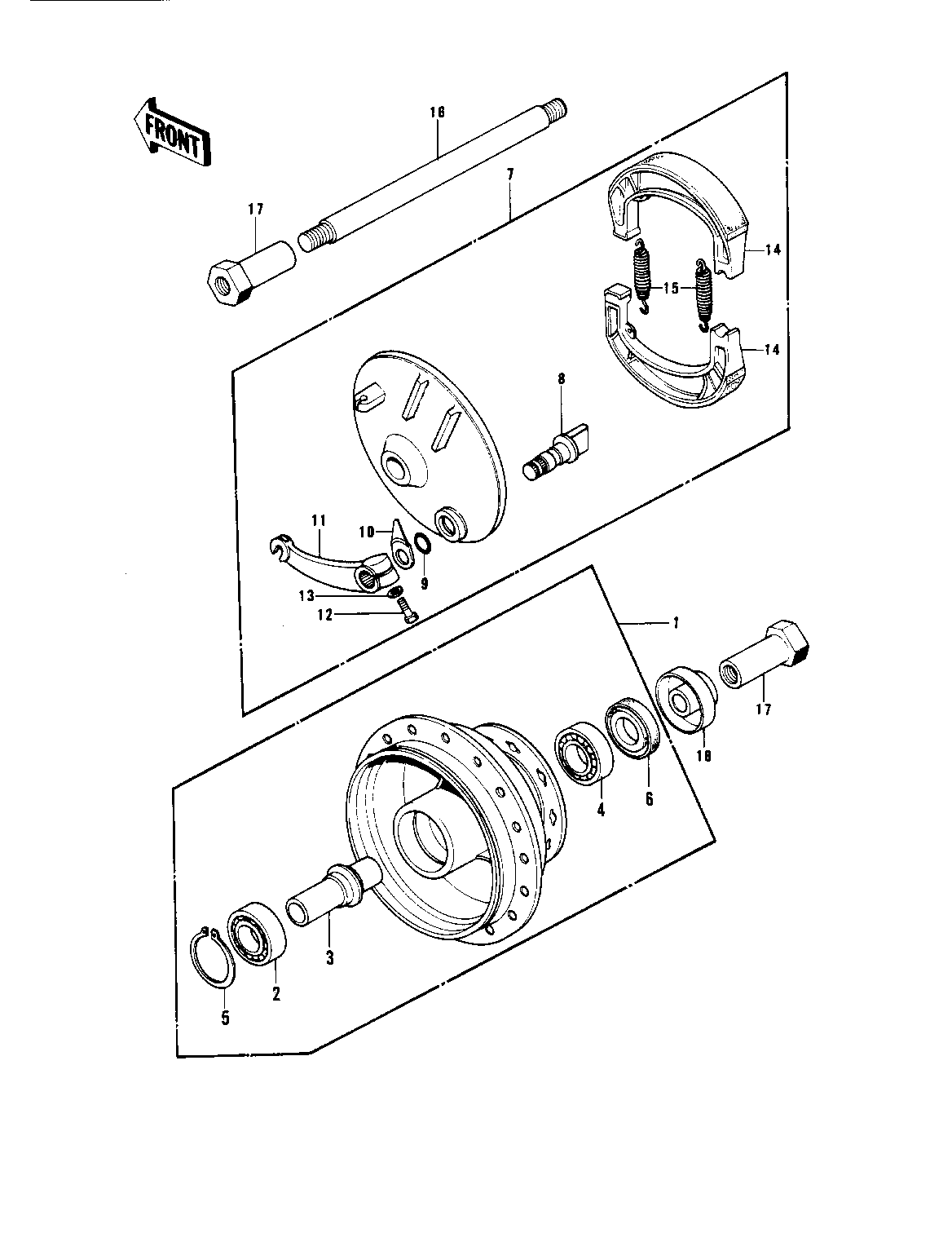

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,FR BRK,BLK | 1 | 41034-034-21 | 1 | KX400 | |
| DRUM-ASSY,FR BRK,F.BK | 1 | 41034-039-21 | 1 | KX400-A2 | |
| BEARING,FRONT DRUM | 2 | 92045-033 | 1 | ||
| COLLAR,FR BRK DRUM | 3 | 41039-027 | 1 | ||
| BEARING BALL #6302 | 4 | 601B6302 | 1 | ||
| CIRCLIP,42MM | 5 | 92033-1041 | 1 | ||
| OIL SEAL,#22427 | 6 | 654A224207 | 1 | ||
| PANEL-ASY,FR BRK BLK | 7 | 41035-065-21 | 1 | ||
| CAM SHAFT,REAR BRAKE | 8 | 42026-021 | 1 | ||
| DUST SHIELD BRAKE CAM | 9 | 41051-001 | 1 | ||
| INDICATOR,FR BRK SHOE | 10 | 41085-017 | 1 | ||
| LEVER,FRONT BRAKE CAM | 11 | 41053-023 | 1 | KX400 | |
| LEVER,FRONT BRAKE CAM | 11 | 41053-025 | 1 | KX400-A2 | |
| BOLT-UPSET | 12 | 112G0625 | 1 | ||
| WASHER PLAIN 6MM | 13 | 410B0600 | 1 | ||
| SHOE-BRAKE | 14 | 41048-1068 | 2 | ||
| SPRING-BRAKE SHOE | 15 | 42020-004 | 2 | ||
| AXLE,FRONT | 16 | 41068-048 | 1 | ||
| COLLAR,FRONT AXLE | 17 | 41069-031 | 2 | ||
| COLLAR,FRONT AXLE | 18 | 41069-030 | 1 |
| DRUM-ASSY,FR BRK,BLK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX400 |
| DRUM-ASSY,FR BRK,F.BK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX400-A2 |
| BEARING,FRONT DRUM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FR BRK DRUM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6302 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,42MM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,#22427 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-ASY,FR BRK BLK | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAM SHAFT,REAR BRAKE | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST SHIELD BRAKE CAM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INDICATOR,FR BRK SHOE | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,FRONT BRAKE CAM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX400 |
| LEVER,FRONT BRAKE CAM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX400-A2 |
| BOLT-UPSET | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOE-BRAKE | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING-BRAKE SHOE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| AXLE,FRONT | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FRONT AXLE | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FRONT AXLE | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
