Parts Diagrams |

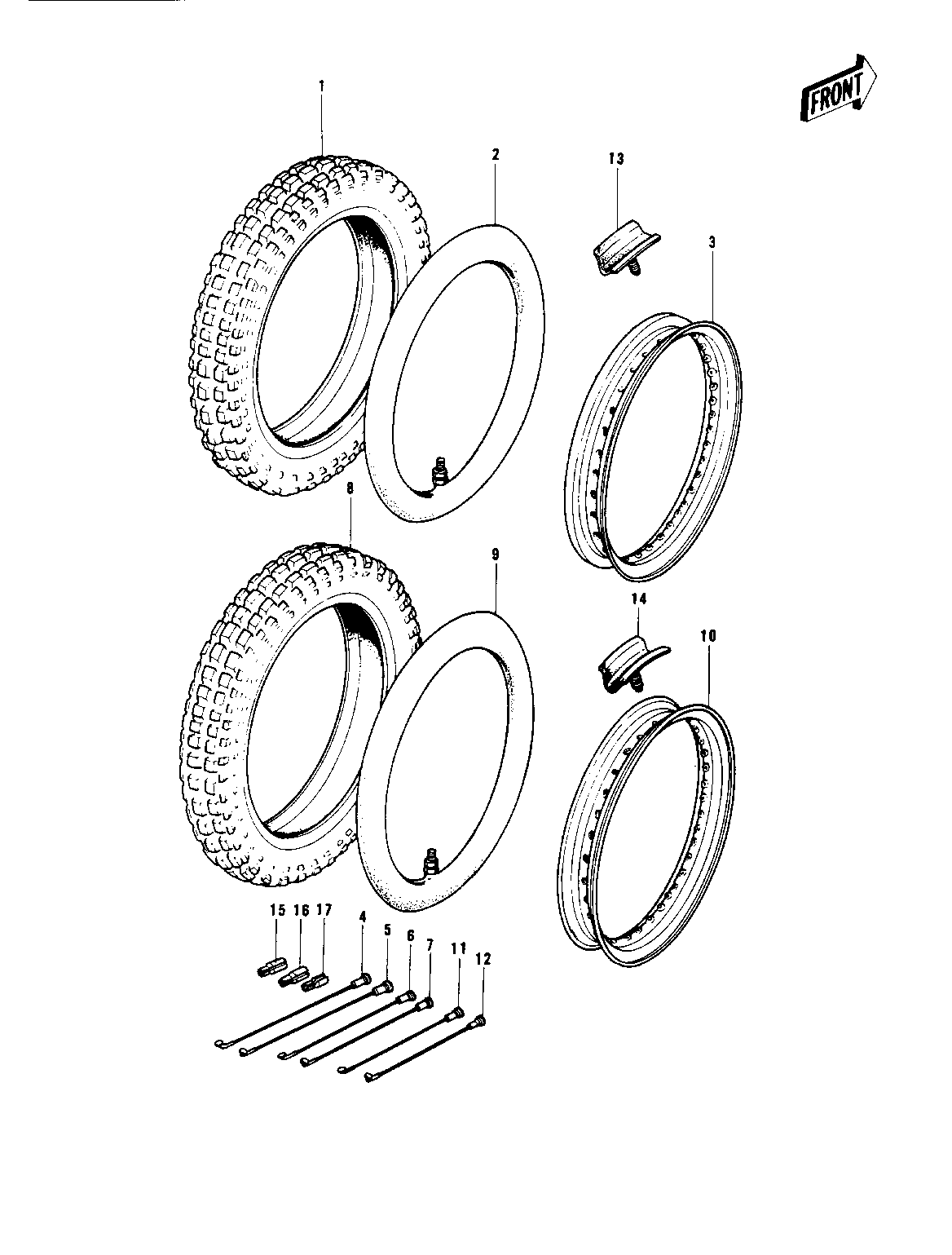

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 300-21 DUN MX | 1 | 41017-012 | 1 | ||
| TUBE,2.75/3.70-21 | 2 | 41022-1021 | 1 | ||
| RIM 1,60A-21E | 3 | 41025-083 | 1 | ||
| SPOKE-ASY,FR INNER | 4 | 41027-078 | 9 | 237M/MX87 | |
| SPOKE-ASY,FR INNER | 5 | 41027-079 | 9 | 223M/MX100 | |
| SPOKE-ASY FR OUTER | 6 | 41028-077 | 9 | 237M/MX89 | |
| SPOKE-ASY,RR OUTER | 7 | 41028-079 | 9 | 223M/MX84 | |
| TIRE 460-18 DUN MX | 8 | 41017-013 | 1 | ||
| TUBE 350/375/410-18 | 9 | 41022-031 | 1 | ||
| RIM,2.15BX18E | 10 | 41025-084 | 1 | ||
| SPOKE-ASY,RR INNER | 11 | 41027-080 | 18 | 162M/MX106 | |
| SPOKE-ASY,RR OUTER | 12 | 41028-078 | 18 | 161M/MX79 | |
| PROTECTOR,BEAD 1.60A | 13 | 41024-010 | 1 | ||
| PROTECTORBEAD | 14 | 41024-009 | 1 | ||
| WEIGHT,BALANCE,10G | 15 | 41075-1007 | AR | ||
| WEIGHT,BALANCE,10G | 15 | 41075-1007 | AR | ||
| WEIGHT,BALANCE,20G | 16 | 41075-1008 | AR | ||
| WEIGHT,BALANCE,20G | 16 | 41075-1008 | AR | ||
| WEIGHT,BALANCE,30G | 17 | 41075-1009 | AR | ||
| WEIGHT,BALANCE,30G | 17 | 41075-1009 | AR |
| TIRE 300-21 DUN MX | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,2.75/3.70-21 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM 1,60A-21E | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,FR INNER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 237M/MX87 |
| SPOKE-ASY,FR INNER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 223M/MX100 |
| SPOKE-ASY FR OUTER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 237M/MX89 |
| SPOKE-ASY,RR OUTER | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 223M/MX84 |
| TIRE 460-18 DUN MX | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE 350/375/410-18 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,2.15BX18E | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,RR INNER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | 162M/MX106 |
| SPOKE-ASY,RR OUTER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | 161M/MX79 |
| PROTECTOR,BEAD 1.60A | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PROTECTORBEAD | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,10G | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,10G | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,20G | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,20G | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,30G | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,30G | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
