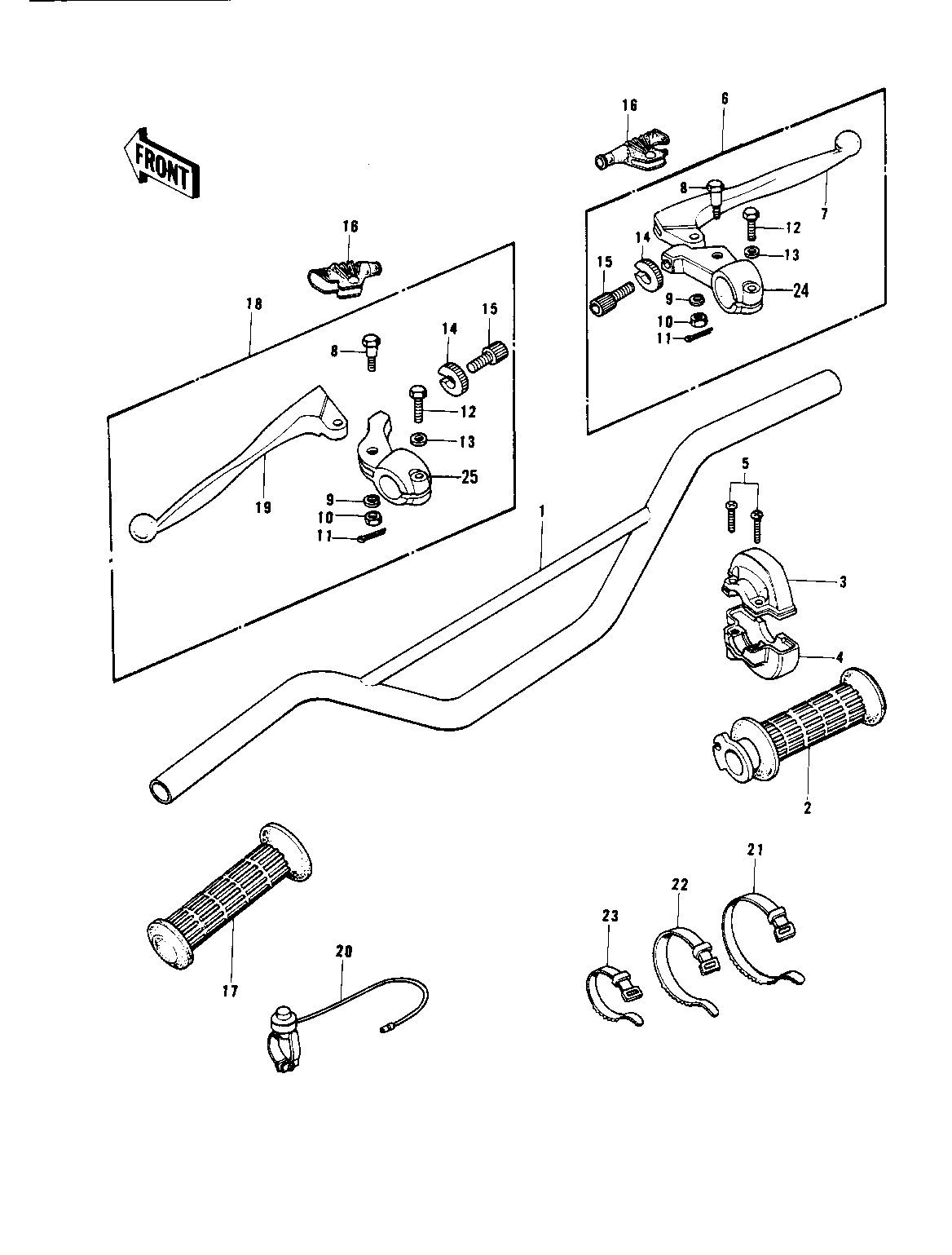

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HANDLEBAR | 1 | 46004-032 | 1 | ||
| GRIP,THROTTLE | 2 | 46019-037 | 1 | ||
| CASE,R.H,GRIP,UPPER | 3 | 32099-1014 | 1 | ||
| HOUSING-ASSY-CONTROL | 4 | 46091-5006 | 1 | ||
| SCREW,5X18 | 5 | 220E0518A | 2 | ||
| LEVER ASSY,FRNT BRAKE | 6 | 46021-032 | 1 | ||
| FRONT BRAKE LEVER | 7 | 46058-018 | 1 | ||
| BOLT,HEX HEAD,6MM | 8 | 92001-140 | 2 | ||
| WASHER SPRING 6MM | 9 | 461F0600 | 2 | ||
| NUT CASTLE | 10 | 320B0600 | 2 | ||
| PIN COTTER 1.6X15 | 11 | 550D1615 | 2 | ||
| BOLT, HEX HEAD 6X22 | 12 | 110N0622 | 2 | ||
| WASHER PLAIN 6MM | 13 | 411B0600 | 2 | ||
| NUT,CABLE ADJUST LOCK | 14 | 46056-006 | 2 | ||
| SCREW,CABLE ADJUST | 15 | 46055-009 | 2 | ||
| BOOTS,LEVER HOLDER | 16 | 49006-1017 | 2 | ||
| RUBBER,L.H GRIP | 17 | 46075-027 | 1 | ||
| LEVER ASSY,CLUTCH | 18 | 46076-048 | 1 | ||
| LEVER, CLUTCH | 19 | 46092-021 | 1 | ||
| SWITCH,ASSY,ENG STOP | 20 | 27010-1018 | 1 | ||
| BAND,SHORT | 21 | 92072-030 | 2 | KX400 | |
| BAND,SHORT | 21 | 92072-030 | 4 | KX400-A2 | |
| BAND,MIDDLE | 22 | 92072-031 | 2 | KX400 | |
| BAND,WIRING HARNESS | 22 | 92072-056 | 1 | KX400-A2 | |
| BAND-RUBBER | 23 | 92072-035 | 2 | KX400 | |
| BAND,MIDDLE | 23 | 92072-031 | 2 | KX400-A2 | |
| HOLDER,FR BRAKE LEVER | 24 | 46060-010 | 1 | ||
| HOLDER,CLUTCH LEVER | 25 | 46094-014 | 1 |
