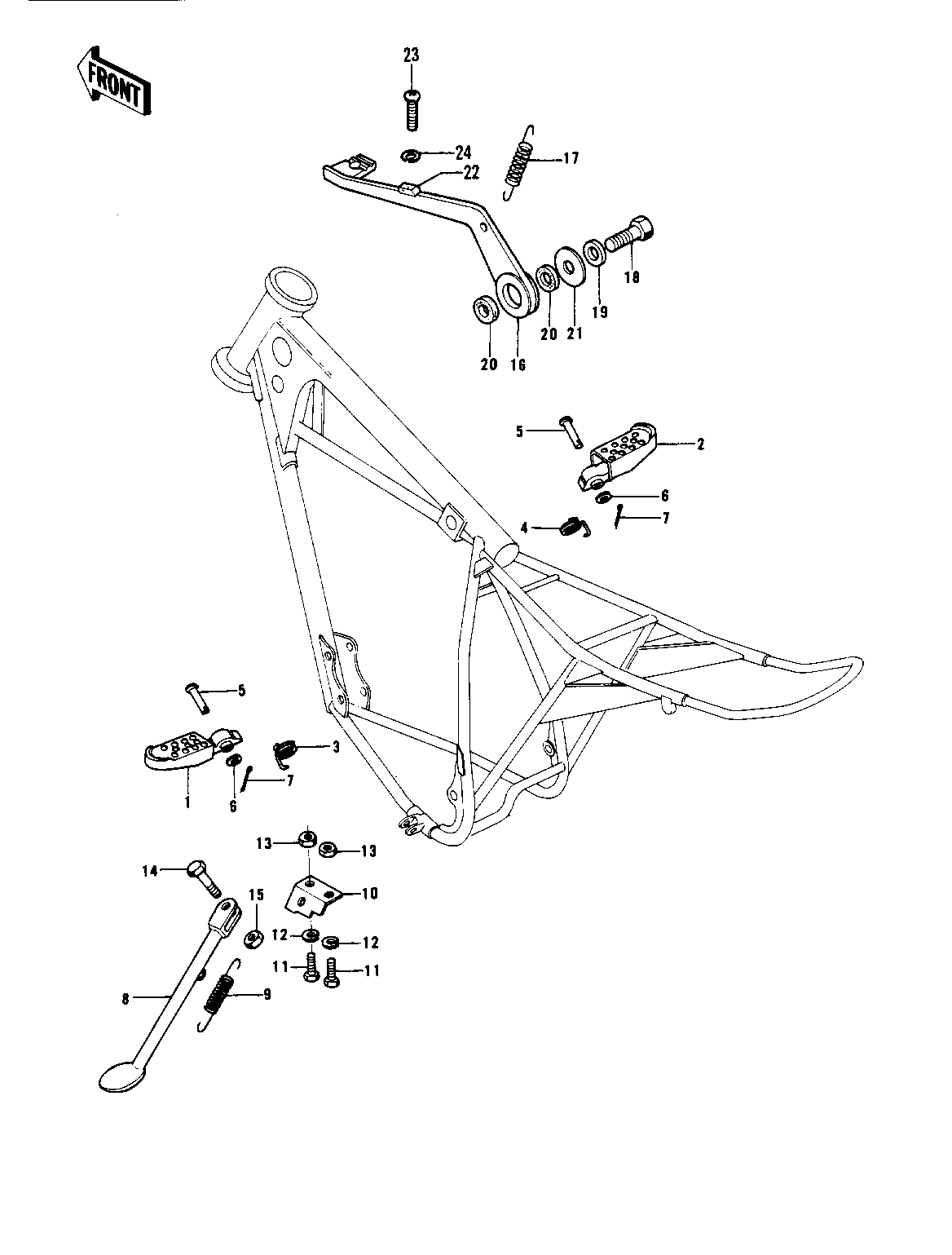

1975 KX400 - FOOTRESTS/STAND/BRAKE PEDAL
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BAR,FOOTREST,L.H | 1 | 34028-025 | 1 | ||
| BAR,FOOTREST,R.H | 2 | 34028-026 | 1 | ||
| SPRING,L.H,FOOTREST | 3 | 92081-1254 | 1 | ||
| SPRING,R.H,FOOTREST | 4 | 92081-1255 | 1 | ||
| PIN,FOOTREST BAR FIT | 5 | 92043-115 | 2 | ||
| WASHER PLAIN 8MM | 6 | 410B0800 | 2 | ||
| PIN,COTTER,2.5X15 | 7 | 550D2515 | 2 | ||
| STAND-SIDE | 8 | 34024-045 | 1 | ||
| SPRING,SIDE STAND | 9 | 34025-008 | 1 | ||
| BRACKET, SIDE STRAND | 10 | 34008-009 | 1 | ||
| BOLT-SMALL-UPSET,8X22 | 11 | 115B0822 | 2 | ||
| WASHER SPRING 8MM | 12 | 461F0800 | 2 | ||
| NUT 8MM | 13 | 312B0800 | 2 | ||
| BOLT,10X28 | 14 | 113G1028 | 1 | ||
| NUT 10MM | 15 | 315B1000 | 1 | ||
| PEDAL,BRAKE | 16 | 43077-005 | 1 | ||
| SPRING,BRAKE PEDAL | 17 | 43005-035 | 1 | ||
| BOLT-UPSET 6X14 | 18 | 112B0614 | 1 | ||
| WASHER SPRING 6MM | 19 | 461F0600 | 1 | ||
| "0" RING,16MM | 20 | 670B2016 | 2 | ||
| WASHER,PLAIN,6MM | 21 | 92022-284 | 1 | ||
| DAMPER RUBBER BRK PED | 22 | 92075-267 | 1 | ||
| SCREW PAN HEAD 5X10 | 23 | 220B0510 | 1 | ||
| WASHER SPRING 5MM | 24 | 461F0500 | 1 |
| BAR,FOOTREST,L.H | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAR,FOOTREST,R.H | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,L.H,FOOTREST | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,R.H,FOOTREST | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,FOOTREST BAR FIT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,COTTER,2.5X15 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STAND-SIDE | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SIDE STAND | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET, SIDE STRAND | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET,8X22 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT 8MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X28 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 10MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PEDAL,BRAKE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE PEDAL | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET 6X14 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,16MM | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,6MM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER BRK PED | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X10 | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
