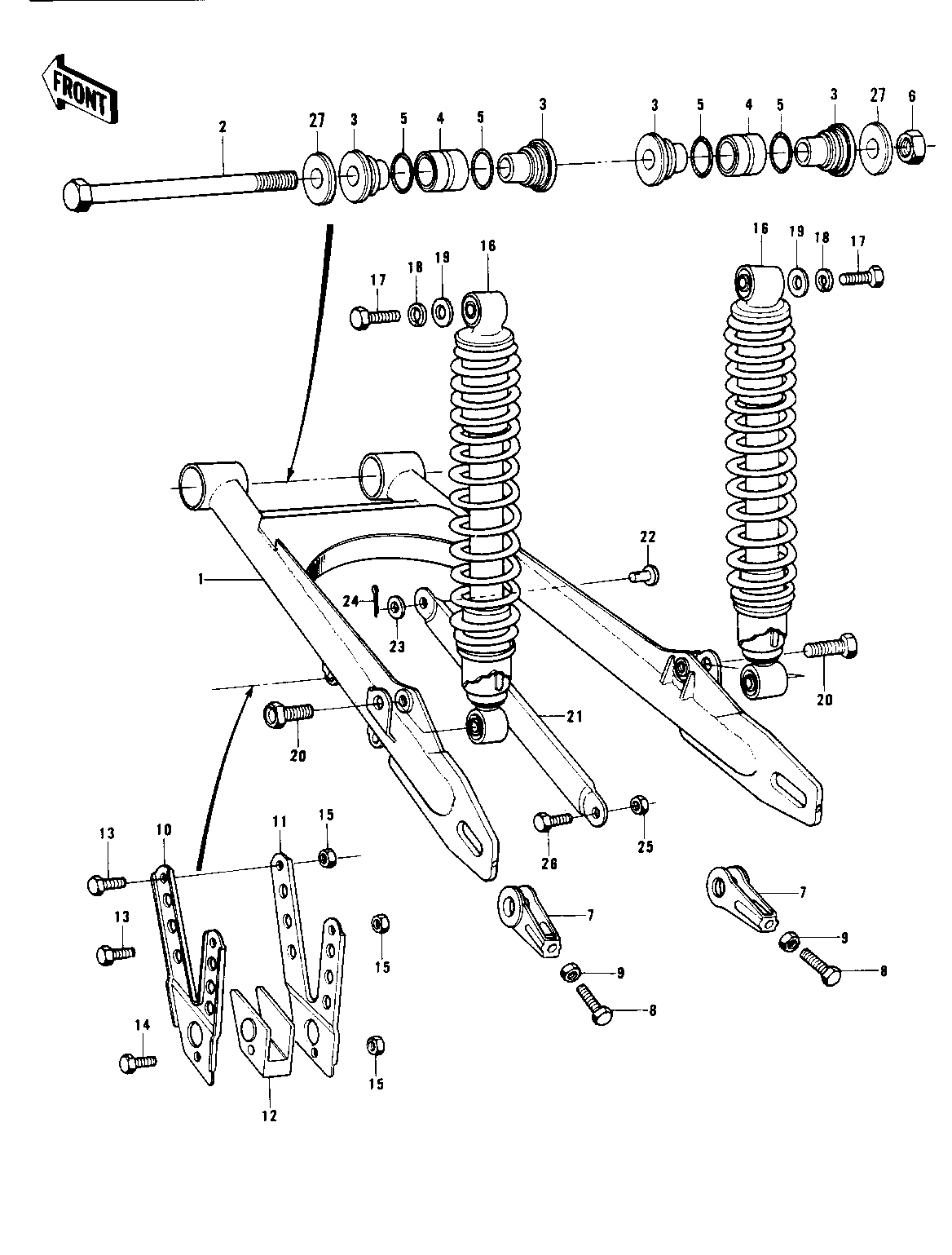

1975 KX400 - SWING ARM/SHOCK ABSORBERS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ARM,SWING | 1 | 33001-079 | 1 | ||
| SHAFT,SWING ARM PIVOT | 2 | 33032-042 | 1 | KX400 | |
| SHAFT,SWING ARM PIVOT | 2 | 33032-048 | 1 | KX400-A2 | |
| SLEEVE,SWING ARM | 3 | 33034-020 | 4 | ||
| BEARING,NEEDLE | 4 | 92046-047 | 2 | ||
| "0" RING,22MM | 5 | 670B3022 | 4 | KX400 | |
| OIL SEAL | 5 | 92056-008 | 4 | KX400-A2 | |
| NUT,12MM | 6 | 92019-017 | 1 | ||
| ADJUSTER,CHAIN | 7 | 33040-067 | 2 | ||
| BOLT,CHAIN ADJUSTER | 8 | 92001-132 | 2 | ||
| NUT,8MM | 9 | 312G0800 | 2 | ||
| GUARD,CHAIN,L.H | 10 | 55020-017 | 1 | ||
| GUARD,CHAIN,R.H | 11 | 55020-018 | 1 | ||
| GUARD,CHAIN | 12 | 55020-019 | 1 | ||
| BOLT 6X35 | 13 | 110R0635 | 2 | ||
| BOLT-UPSET,6X40 | 14 | 112G0640 | 1 | ||
| NUT,6MM | 15 | 92019-019 | 3 | ||
| SHOCK ABSBR RR | 16 | 45014-104 | 2 | KX400 | |
| SHOCK ABSBR RR | 16 | 45014-112 | 2 | KX400-A2 | |
| BOLT-UPSET,6X12 | 17 | 112G0612 | 2 | ||
| WASHER SPRING 6MM | 18 | 461F0600 | 2 | ||
| WASHER,PLAIN,7MM | 19 | 92022-228 | 2 | ||
| BOLT,HEX HEAD,12X35 | 20 | 92001-133 | 2 | ||
| TORQUE LINK,RR BRAKE | 21 | 43007-040 | 1 | ||
| PIN,TORQUE LINK | 22 | 92043-105 | 1 | ||
| WASHER,PLAIN | 23 | 92022-239 | 1 | ||
| PIN COTTER 2.0X20 | 24 | 550D2020 | 1 | ||
| NUT,10MM | 25 | 92019-016 | 1 | ||
| BOLT,10X28 | 26 | 113G1028 | 1 | ||
| WASHER PLAIN 12MM | 27 | 411B1200 | 2 | KX400-A2 |
| ARM,SWING | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,SWING ARM PIVOT | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX400 |
| SHAFT,SWING ARM PIVOT | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX400-A2 |
| SLEEVE,SWING ARM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING,NEEDLE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "0" RING,22MM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | KX400 |
| OIL SEAL | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | KX400-A2 |
| NUT,12MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ADJUSTER,CHAIN | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,CHAIN ADJUSTER | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUARD,CHAIN,L.H | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,CHAIN,R.H | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,CHAIN | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X35 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X40 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SHOCK ABSBR RR | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KX400 |
| SHOCK ABSBR RR | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KX400-A2 |
| BOLT-UPSET,6X12 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,7MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,12X35 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TORQUE LINK,RR BRAKE | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,TORQUE LINK | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 2.0X20 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X28 | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 12MM | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KX400-A2 |
