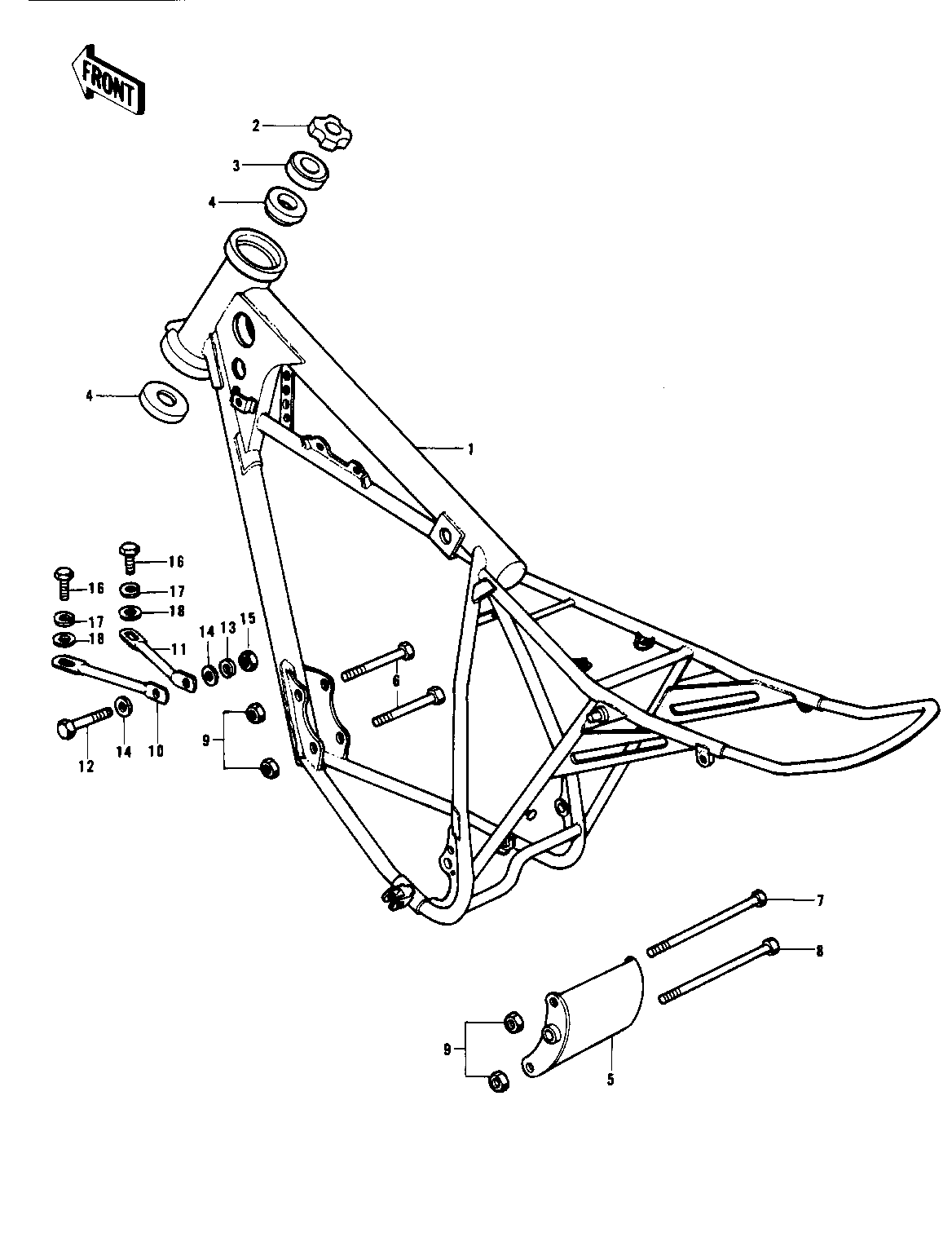

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME | 1 | 32002-124 | 1 | ||
| NUT | 2 | 92015-1546 | 1 | ||
| CAP,STEERING STEM | 3 | 46098-015 | 1 | ||
| BEARING,STEERING STEM | 4 | 92047-017 | 2 | ||
| BRACKET,ENGINE MOUNT | 5 | 32117-009 | 1 | ||
| BOLT,HEX HEAD,10X65 | 6 | 92001-1255 | 2 | KX400 | |
| BOLT,HEX HEAD,10X65 | 6 | 92001-1255 | 2 | KX400-A2 | |
| BOLT, FLANGED, 10X110 | 7 | 92001-1602 | 1 | ||
| BOLT,FLANGED,10X115 | 8 | 92001-1603 | 1 | ||
| NUT,10MM | 9 | 92019-016 | 4 | ||
| PLATE,ENG MOUNT,L.H | 10 | 32030-051 | 1 | ||
| PLATE,ENG MOUNT,R.H | 11 | 32030-052 | 1 | ||
| BOLT,10X28 | 12 | 113G1028 | 1 | ||
| WASHER SPRING 10MM | 13 | 461F1000 | 1 | ||
| WASHER PLAIN 10MM | 14 | 411B1000 | 2 | ||
| NUT,10MM | 15 | 314B1000 | 1 | ||
| BOLT,8X20 | 16 | 115G0820 | 2 | ||
| WASHER SPRING 8MM | 17 | 461F0800 | 2 | ||
| WASHER PLAIN 8MM | 18 | 411B0800 | 2 |
