Parts Diagrams |

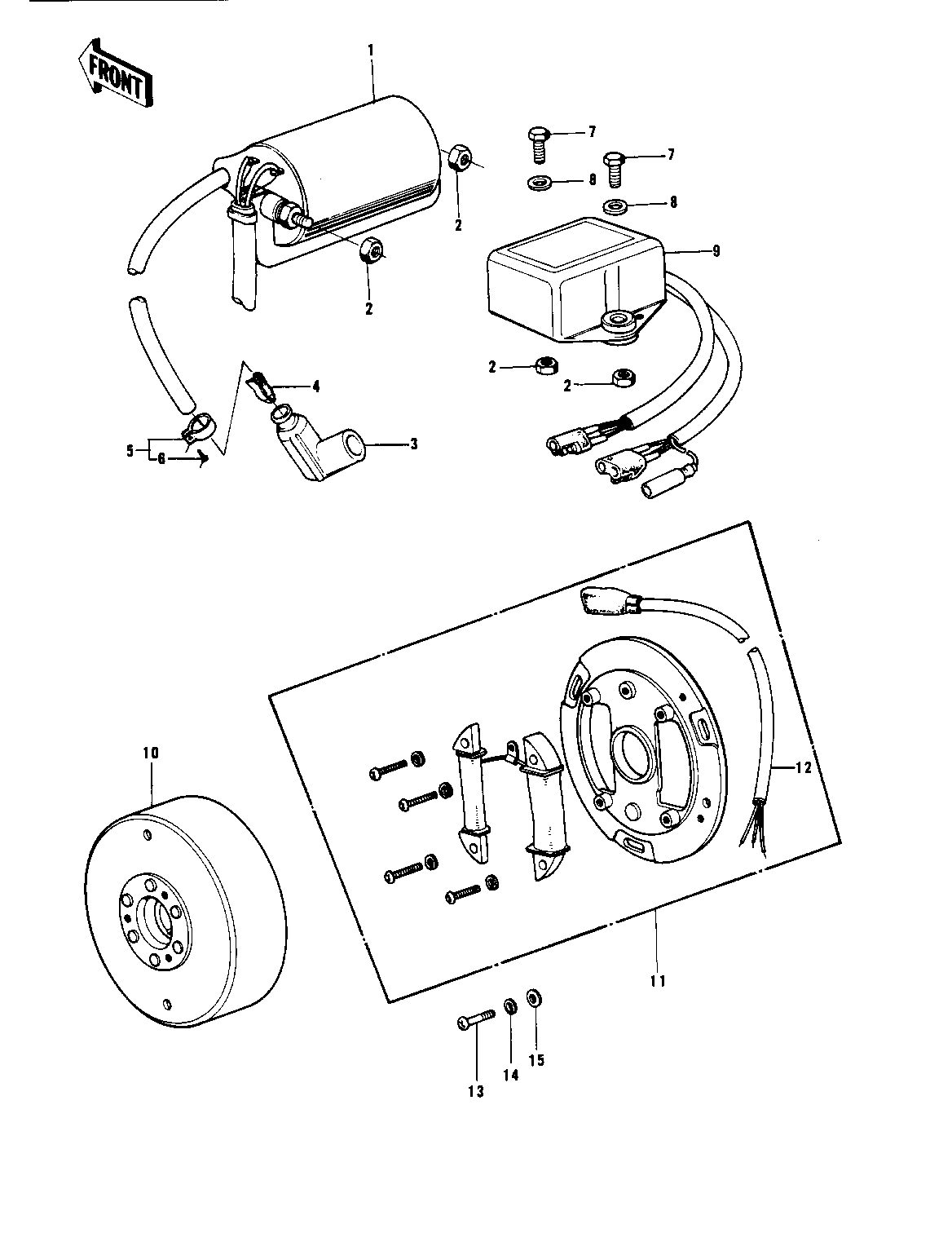

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COIL,IGNITION | 1 | 21121-070 | 1 | ||
| NUT,6MM | 2 | 92019-019 | 4 | ||
| CAP,SPARK PLUG | 3 | 21130-1006 | 1 | ||
| CAP,SPARK PLUG | 3 | 21130-1006 | 1 | ||
| TERMINAL,PLUG CAP | 4 | 21169-001 | 1 | ||
| CLAMP,SPARK PLUG CAP | 5 | 92037-1173 | 1 | ||
| CLAMP,SPARK PLUG CAP | 5 | 92037-1173 | 1 | ||
| SCREW-PAN-CROS | 6 | 220B0310 | 1 | ||
| BOLT-UPSET | 7 | 112G0618 | 2 | ||
| WASHER PLAIN | 8 | 92022-024 | 2 | ||
| IGNITION UNIT | 9 | 21119-022 | 1 | ||
| FLYWHEEL,MAGNETO | 10 | 21050-019 | 1 | ||
| STATOR ASSY,MAGNETO | 11 | 21003-029 | 1 | ||
| WIRING HARNESS,MAGNTO | 12 | 21029-032 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 13 | 214B0516A | 3 | ||
| WASHER SPRING 5MM | 14 | 461F0500 | 3 | ||
| WASHER PLAIN 5MM | 15 | 411B0500 | 3 |
