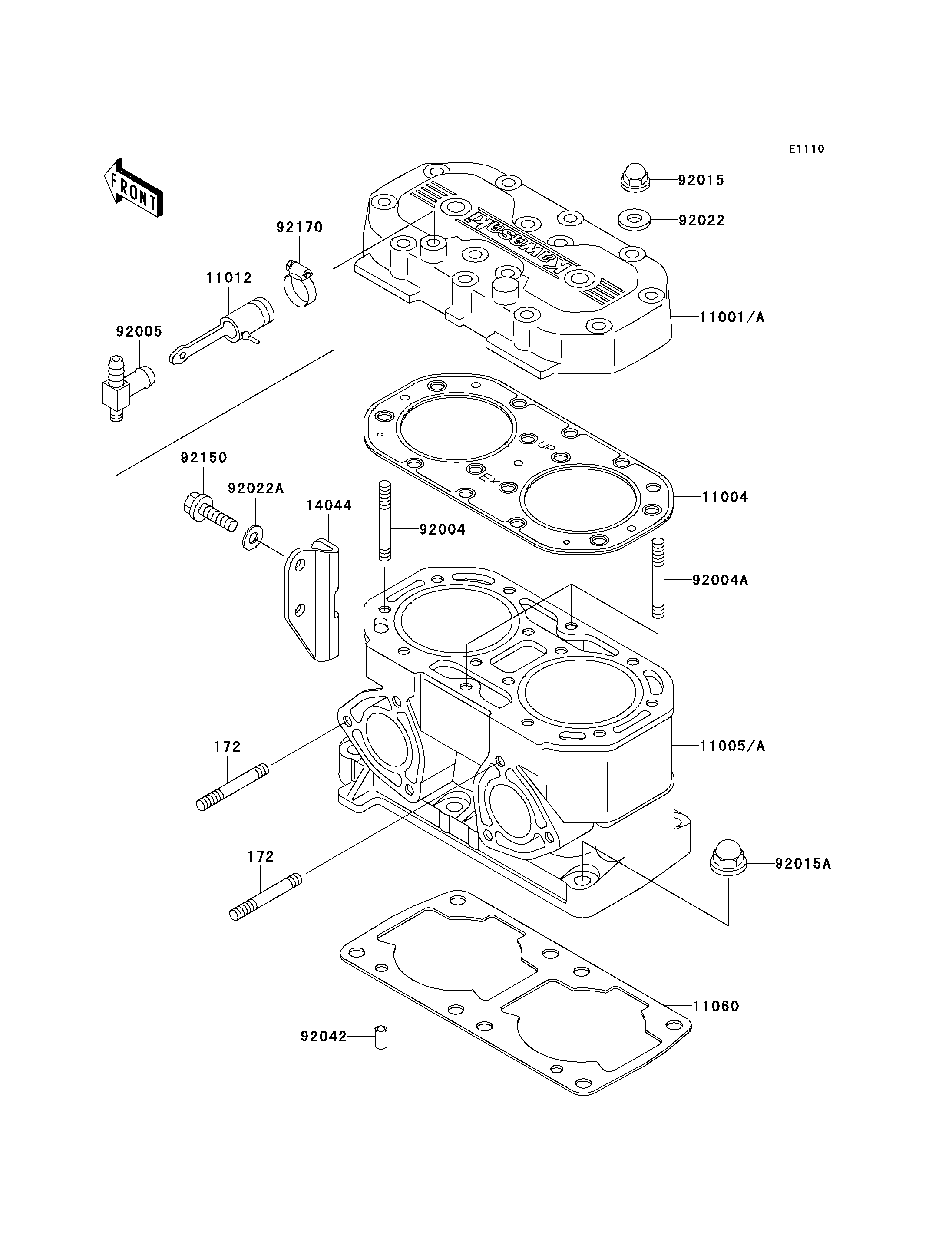

1999 SXI PRO - Cylinder Head/Cylinder

DOWNLOAD PDF
SELECT A NEW PART
172
172
11001
11004
11005
11012
11060
14044
92004
92004A
92005
92015
92015A
92022
92022A
92042
92150
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-STUD 172 172R0830 6
HEAD-CYLINDER 11001 11001-3728 1
GASKET-HEAD 11004 11004-3714 1
CYLINDER-ENGINE 11005 11005-3729 1
CAP 11012 11012-3757 1
GASKET,CYLINDER BASE 11060 11060-3711 1
HOLDER-CABLE 14044 14044-3728 1
STUD,8X43 92004 92004-3715 12
STUD,8X43 92004A 92004-3719 2
FITTING 92005 92005-3711 1
NUT,CAP,8MM 92015 92015-1371 14
NUT,10MM 92015A 92015-1649 8
WASHER,8.2X18X1.5 92022 92022-1964 14
WASHER,8.2X18X1.5 92022A 92022-3743 2
PIN,DOWEL,6.3X8X14 92042 92042-007 2
BOLT,8X16 92150 92150-3846 2
CLAMP 92170 92170-3729 1
