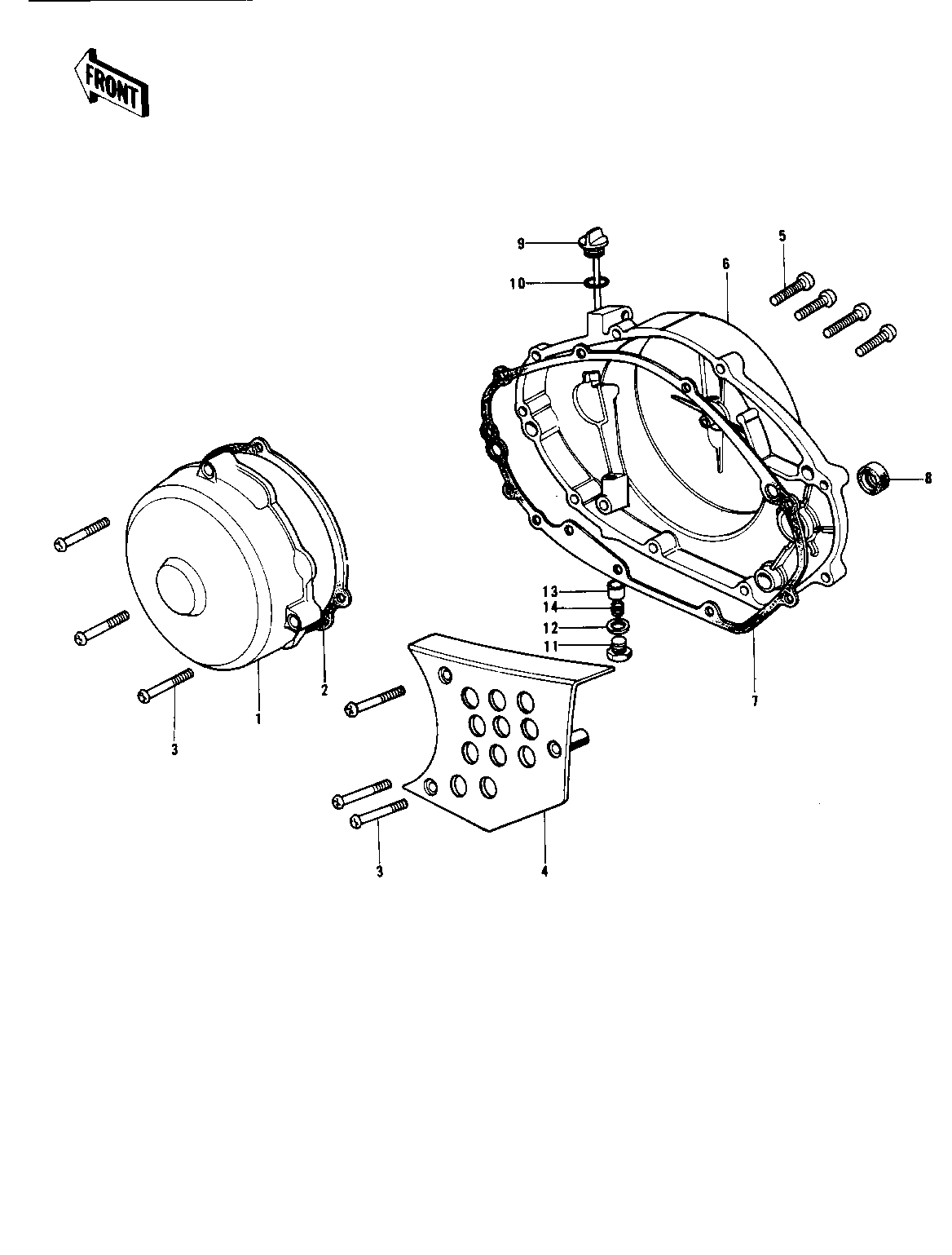

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,L.H ENGINE | 1 | 14031-065 | 1 | ||
| GASKET,L.H ENG COVER | 2 | 14045-016 | 1 | ||
| SCREW PAN HEAD 6X40 | 3 | 220B0640 | 3 | ||
| COVER,FRONT CHAIN | 4 | 14026-017 | 1 | ||
| SCREW PAN HEAD 6X30 | 5 | 220B0630 | 9 | ||
| COVER,R.H ENGINE | 6 | 14032-087 | 1 | ||
| GASKET,R.H ENG COTER | 7 | 14046-027 | 1 | ||
| OIL SEAL SB20285 | 8 | 92049-012 | 1 | ||
| PLUG,OIL FILLER | 9 | 16115-019 | 1 | ||
| "0" RING,20MM | 10 | 670B2020 | 1 | ||
| PLUG,OIL DRAIN | 11 | 92067-014 | 1 | ||
| GASKET,DRAIN PLUG | 12 | 92065-088 | 1 | ||
| BUSHING | 13 | 92028-133 | 1 | ||
| SPRING | 14 | 92081-118 | 1 |
