Parts Diagrams |

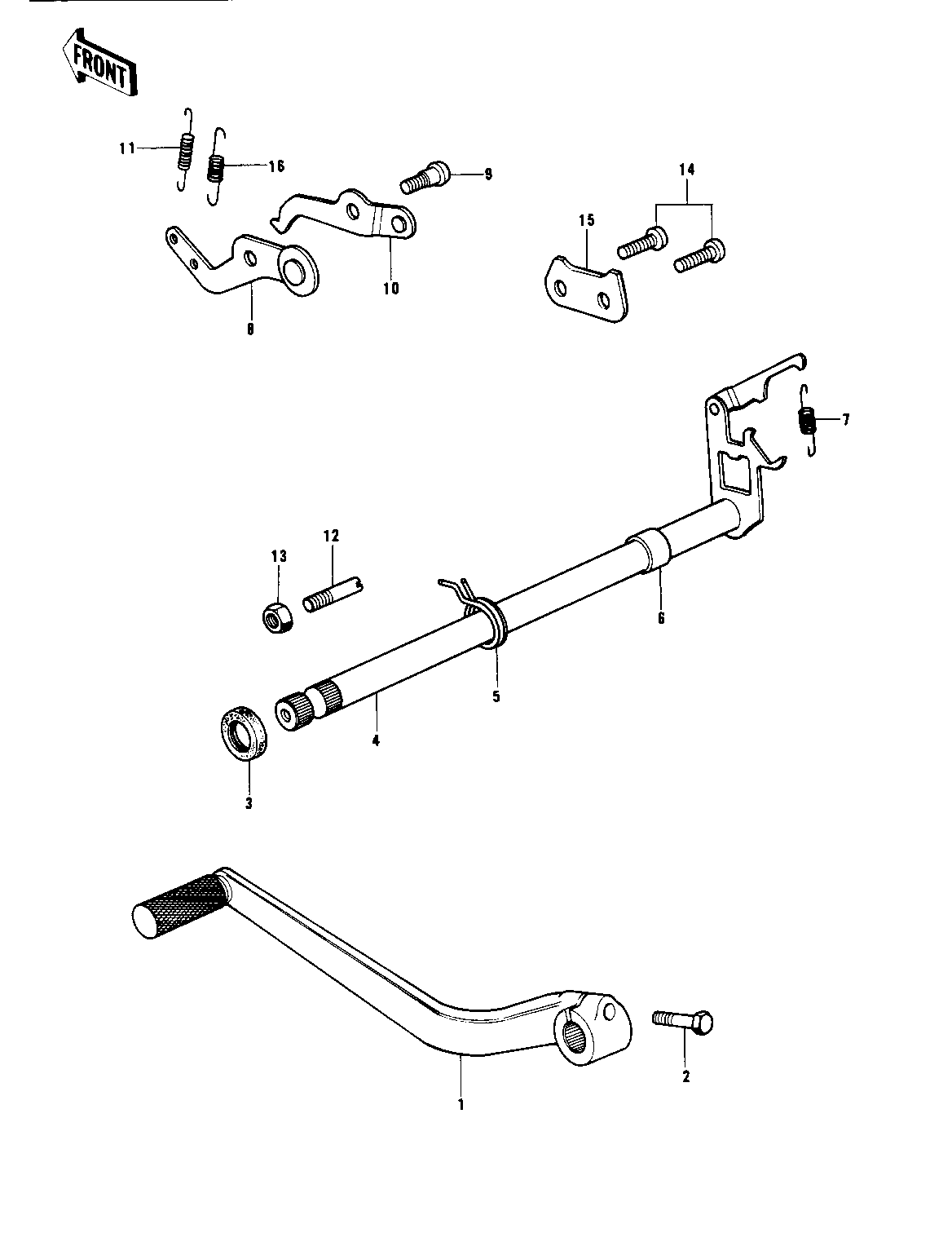

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PEDAL,GEAR CHANGE | 1 | 13156-061 | 1 | ||
| BOLT-UPSET,6X20 | 2 | 112G0620 | 1 | ||
| OIL SEAL,TB13225.5 | 3 | 92051-005 | 1 | ||
| LEVER ASSY GEAR CHNG | 4 | 13161-031 | 1 | ||
| SPRING,TENTION | 5 | 92081-1129 | 1 | ||
| SPRING,TENTION | 5 | 92081-1129 | 1 | ||
| COLLAR | 6 | 92027-189 | 1 | ||
| SPRING,CHANGE LEVER | 7 | 92144-1720 | 1 | ||
| LEVER ASSY,GEAR CHNG | 8 | 13236-008 | 1 | ||
| SCREW-PAN HEAD | 9 | 92011-023 | 1 | ||
| LEVER ASSY,GEAR CHNG | 10 | 13236-005 | 1 | ||
| SPRING | 11 | 92081-119 | 1 | ||
| BOLT,RETURN SPRING | 12 | 92001-1401 | 1 | ||
| NUT 8MM | 13 | 312B0800 | 1 | ||
| SCREW PAN HEAD 6X14 | 14 | 220B0614 | 2 | ||
| PLATE,CHANGE DRUM | 15 | 13169-012 | 1 | ||
| SPRING-COIL | 16 | 92081-091 | 1 |
| PEDAL,GEAR CHANGE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X20 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,TB13225.5 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY GEAR CHNG | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,TENTION | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,TENTION | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CHANGE LEVER | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY,GEAR CHNG | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN HEAD | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY,GEAR CHNG | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,RETURN SPRING | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 8MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE,CHANGE DRUM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-COIL | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
