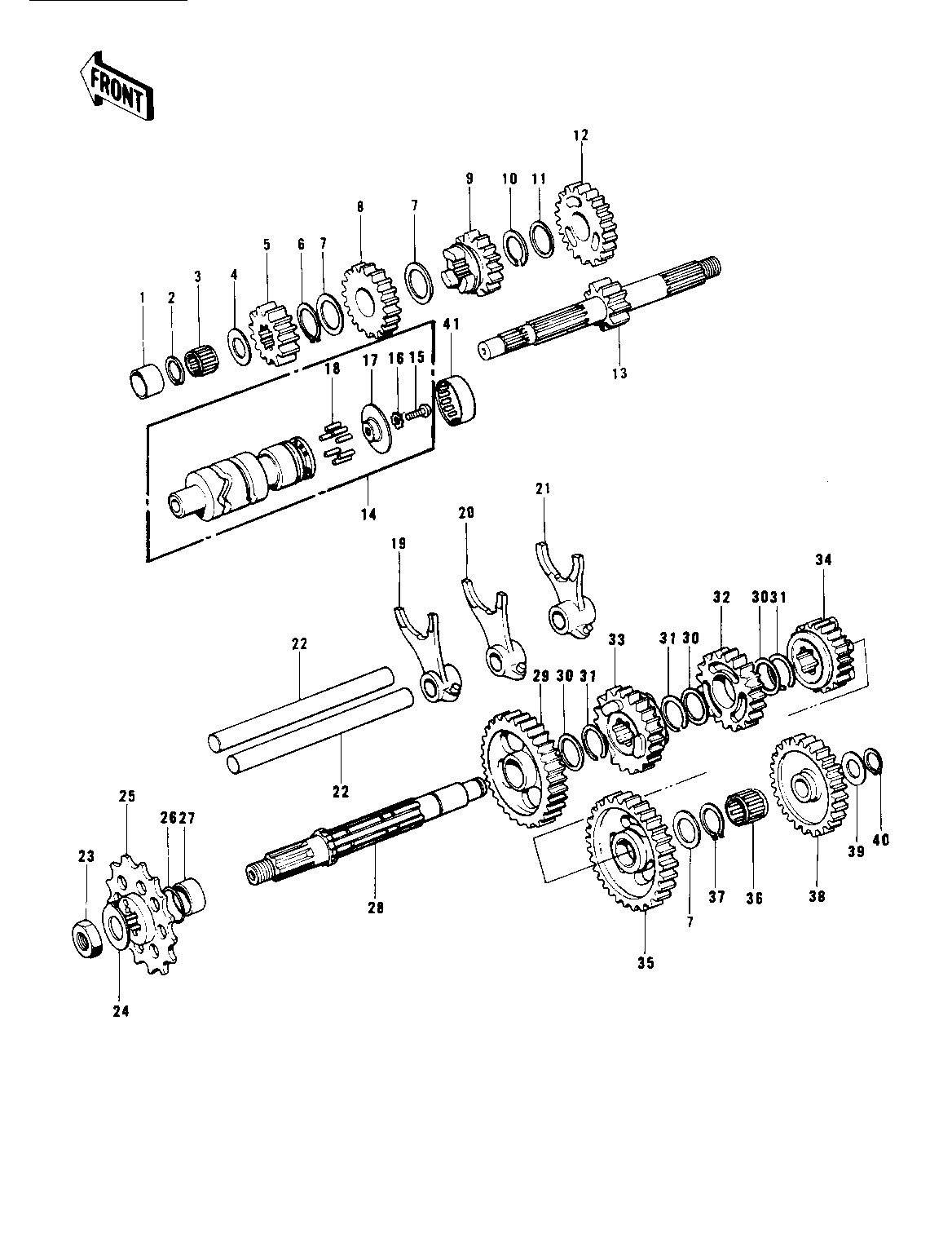

1975 KX400 - TRANSMISSION/CHANGE DRUM

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BUSHING 1 92028-132 1
CIRCLIP 17MM 2 92033-009 1
BEARING,BALL,KT172313 3 92046-035 1
WASHER,PLAIN 4 92022-281 1
2ND GEAR,DRIVE,13T 5 13130-042 1
CIRCLIP 6 92033-015 1
WASHER 7 92022-252 3
4TH GEAR,DRIVE 16T 8 13134-028 1
3RD GEAR,DRIVE,15T 9 13132-041 1
CIRCLIP 10 92033-027 1
WASHER 11 92022-254 1
TOP GEAR,DRIVE,17T 12 13136-054 1
SHAFT,DRIVE,10T 13 13127-052 1
DRUM ASSY,GEAR SHIFT 14 13239-015 1
SCREW PAN HEAD 6X14 15 220B0614 1
WASHER LOCK 6MM 16 464H0600 1
HOLDER,CHANGE DRUM 17 13142-014 1
PIN,CHANG DRUM 18 92042-029 1
FORK,SELECTOR 19 13140-055 1
FORK,SELECTOR 20 13140-056 1
FORK,SELECTOR,4TH&TOP 21 13140-072 1
ROD,CLUTCH RELEASE 22 13209-012 2
NUT 18MM 23 92015-019 1
WASHER,LOCK,18MM 24 92024-067 1
ENGINE SPROCKET 15T 25 13144-050 1 STD
ENGINE SPROCKET 14T 25 13144-051 1
"O" RING 26 92055-035 1
COLLAR-ENG SPROKET 27 92027-163 1
SHAFT,OUTPUT 28 13128-039 1
2ND GEAR,OUTPUT,23T 29 13131-049 1
WASHER 30 92022-253 3
CIRCLIP 31 92033-026 3
3RD GEAR,OUTPUT SHAFT 32 13133-034 1
4TH GEAR,OUTPUT 19T 33 13135-034 1 KX400
4TH GEAR,OUTPUT 19T 33 13135-034 1 KX400-A2
TOP GEAR,OUTPUT,18T 34 13137-036 1
LOW GEAR,OUTPUT,25T 35 13129-057 1
BEARING-NEEDLE,KT2026 36 92046-1170 1
CIRCLIP,19MM 37 480J1900 1
IDLE GEAR 38 13073-010 1
WASHER-THRUST 39 92022-197 1
CIRCLIP 16MM 40 480J1600 1
BEARING,NEEDLE,344012 41 92046-040 1
