Parts Diagrams |

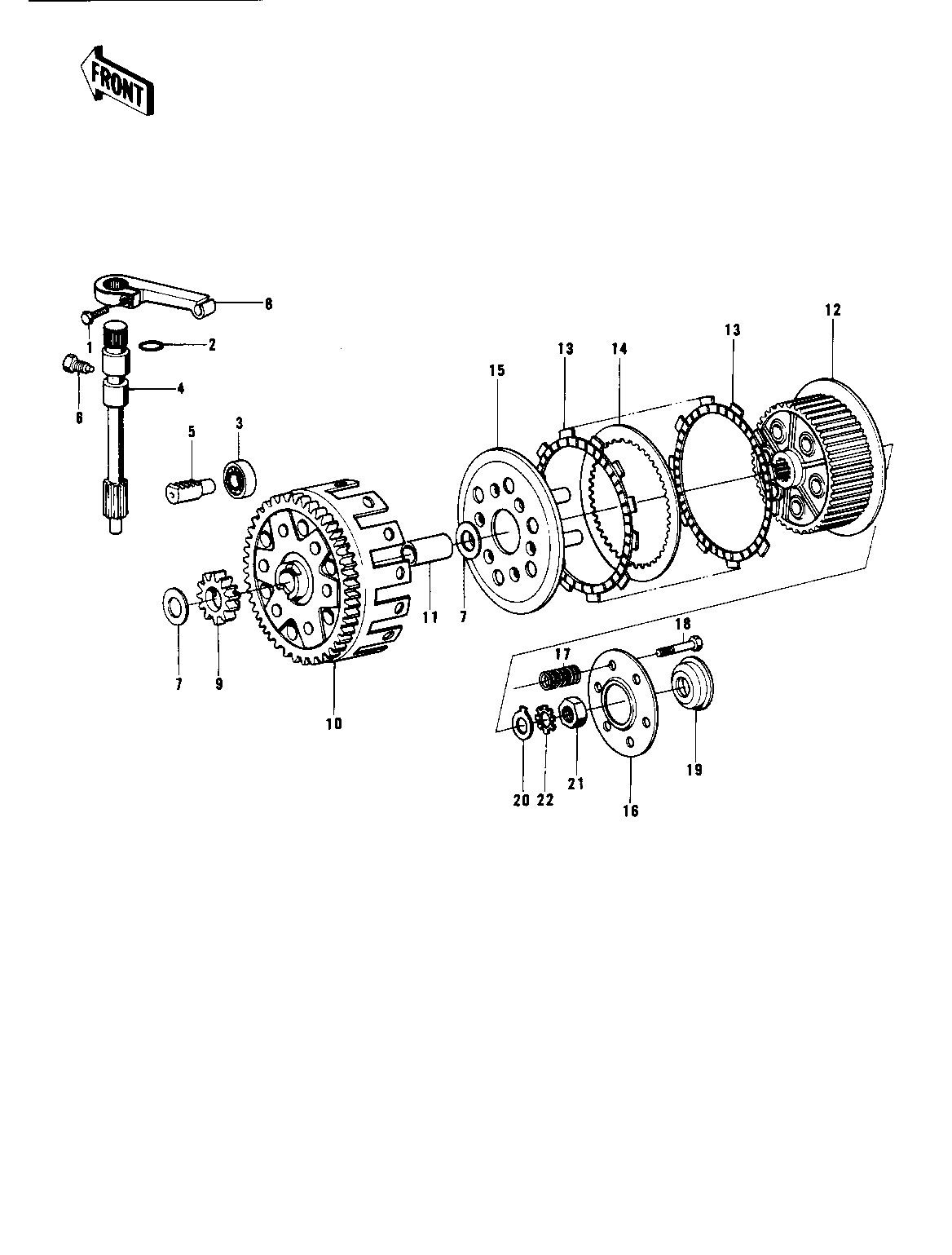

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET | 1 | 112G0618 | 1 | ||
| "0" RING, 10MM | 2 | 670B2010 | 1 | ||
| BEARING,BALL #627 | 3 | 92045-026 | 1 | ||
| SHAFT,CLUTCH RELEASE | 4 | 13106-006 | 1 | ||
| ROD,CLUTCH PUSH | 5 | 13116-025 | 1 | ||
| WASHER,PLAIN | 7 | 92022-270 | 2 | ||
| LEVER,CLUTCH RELEASE | 8 | 13103-022 | 1 | ||
| PINION,KICKSTARTER | 9 | 13075-009 | 1 | ||
| HOUSHING,CLUTCH | 10 | 13095-038 | 1 | ||
| BUSHING | 11 | 92028-105 | 1 | ||
| HUB,CLUTCH | 12 | 13087-035 | 1 | ||
| PLATE,CLUTCH FRICTION | 13 | 13088-038 | 6 | ||
| PLATE,CLUTCH STEEL | 14 | 13089-024 | 5 | ||
| WHEEL,CLUTCH | 15 | 13086-014 | 1 | ||
| HOLDER,CLUTCH SPRING | 16 | 13091-012 | 1 | ||
| SPRING CLUTCH | 17 | 92081-042 | 6 | ||
| BOLT-UPSET | 18 | 112G0618 | 6 | ||
| PUSHER,CLUTCH RELEASE | 19 | 13114-008 | 1 | ||
| WASHER, | 20 | 92024-052 | 1 | ||
| NUT | 21 | 92015-064 | 1 | ||
| WASHER,LOCK,14MM | 22 | 464H1400 | 1 |
