Parts Diagrams |

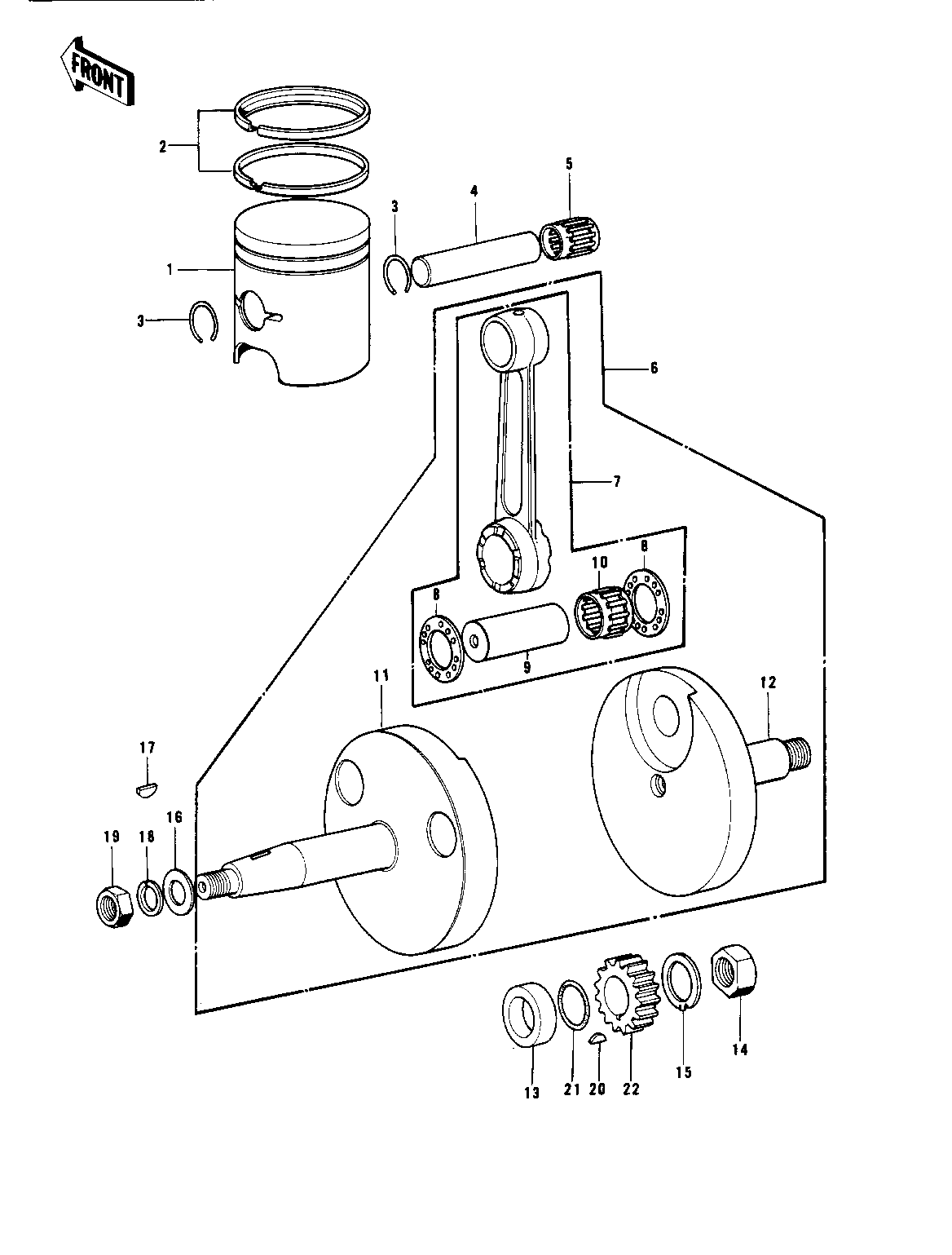

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON,STD | 1 | 13001-076 | 1 | ||
| PISTON,0.020" O/S | 1 | 13029-076 | (1 | ||
| RING SET,STD | 2 | 13008-057 | 1 | ||
| RING SET,0.020" O/S | 2 | 13025-060 | (1 | ||
| CIRCRIP,PISTON PIN | 3 | 92036-024 | 2 | ||
| PIN-PISTON | 4 | 13002-030 | 1 | ||
| BEARING-SMALL END,KTV | 5 | 13033-1055 | 1 | ||
| CRANKSHAFT ASSY | 6 | 13036-042 | 1 | ||
| CONNECTING ROD SET | 7 | 13044-027 | 1 | ||
| WASHER,CONROD SIDE | 8 | 92026-093 | 2 | ||
| PIN,CRANK | 9 | 13035-032 | 1 | ||
| BEARING,BIG END | 10 | 13034-035 | 1 | ||
| CRANKSHAFT,L.H | 11 | 13037-054 | 1 | ||
| CRANKSHAFT,R.H | 12 | 13038-050 | 1 | ||
| COLLAR,CRANKSHAFT | 13 | 92027-190 | 1 | ||
| NUT 18MM | 14 | 92015-019 | 1 | ||
| WASHER LOCK 18MM | 15 | 92024-015 | 1 | ||
| WASHER-PLAIN,14MM | 16 | 92022-172 | 1 | ||
| WOODRUFF KEY | 17 | 92038-001 | 1 | ||
| WASHER SPRING 14MM | 18 | 461F1400 | 1 | ||
| NUT 14MM | 19 | 92015-043 | 1 | ||
| WOODRUFF KEY | 20 | 510A5100 | 1 | ||
| "0" RING,22MM | 21 | 670B3022 | 1 | ||
| GEAR,PRIMART | 22 | 13121-024 | 1 |
| PISTON,STD | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON,0.020" O/S | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | |
| RING SET,STD | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING SET,0.020" O/S | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | |
| CIRCRIP,PISTON PIN | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-SMALL END,KTV | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT ASSY | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONNECTING ROD SET | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,CONROD SIDE | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,CRANK | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,BIG END | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,L.H | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,R.H | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,CRANKSHAFT | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 18MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER LOCK 18MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,14MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 14MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 14MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,22MM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,PRIMART | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
