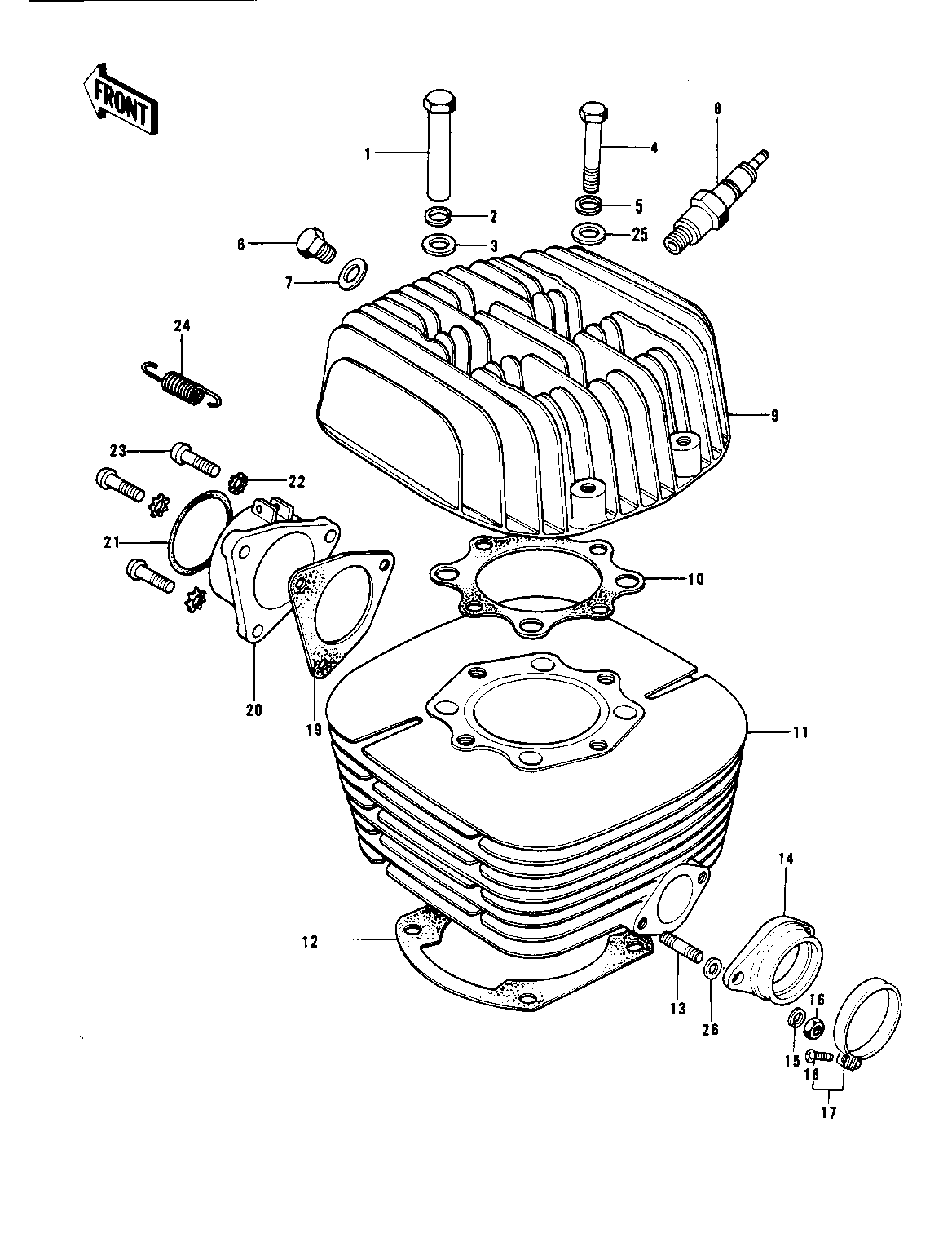

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT,CYLINDER HEAD | 1 | 92015-065 | 4 | ||
| WASHER SPRING 14MM | 2 | 461F1400 | 4 | ||
| WASHER PLAIN 14MM | 3 | 411B1400 | 4 | ||
| BOLT,10X45 | 4 | 92001-1182 | 4 | ||
| WASHER SPRING 8MM | 5 | 461F0800 | 4 | ||
| PLUG,CYLINDER HEAD | 6 | 92067-021 | 1 | ||
| GASKET-CYL HEAD PLUG | 7 | 92065-068 | 1 | ||
| SPARK PLUG B9EV | 8 | B9EV | 1 | ||
| CYLINDER HEAD,F.BLACK | 9 | 11001-105-21 | 1 | ||
| GASKET,CYLINDER HEAD | 10 | 11004-070 | 1 | ||
| CYLINDER,FLAT BLACK | 11 | 11005-148-21 | 1 | ||
| GASKET,CYLINDER BASE | 12 | 11009-035 | 1 | ||
| STUD 8X20 | 13 | 172G0820 | 2 | KX400 | |
| STUD,8X16 | 13 | 172G0816 | 2 | KX400-A2 | |
| HOLDER,CARBURETOR | 14 | 16065-043 | 1 | ||
| WASHER SPRING 8MM | 15 | 461F0800 | 2 | ||
| NUT 8MM | 16 | 318B0800 | 2 | ||
| CLAMP,AIR CLEANER | 17 | 92037-160 | 1 | ||
| SCREW PAN HEAD 6X30 | 18 | 220E0630 | 1 | ||
| GASKET,EXHAUST HOLDER | 19 | 18050-006 | 1 | KX400 | |
| GASKET,EXHAUST PIPE | 19 | 18050-010 | 1 | KX400-A2 | |
| HOLDER,EXHAUST PIPE | 20 | 18062-008 | 1 | ||
| WASHER LOCK 6MM | 22 | 464H0600 | 3 | ||
| SCREW PAN HEAD 6X25 | 23 | 220B0625 | 3 | KX400 | |
| SCREW PAN HEAD 6X22 | 23 | 220B0622 | 3 | KX400-A2 | |
| SPRING-CONNECTOR | 24 | 18071-003 | 2 | ||
| WASHER PLAIN 8MM | 25 | 410B0800 | 4 | KX400-A2 | |
| GASKET,CARB HOLDER | 26 | 16062-021 | 2 | F/NO. 905881- |
| NUT,CYLINDER HEAD | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 14MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 14MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X45 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG,CYLINDER HEAD | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-CYL HEAD PLUG | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPARK PLUG B9EV | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER HEAD,F.BLACK | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER HEAD | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER,FLAT BLACK | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD 8X20 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KX400 |
| STUD,8X16 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KX400-A2 |
| HOLDER,CARBURETOR | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT 8MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,AIR CLEANER | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X30 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST HOLDER | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX400 |
| GASKET,EXHAUST PIPE | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX400-A2 |
| HOLDER,EXHAUST PIPE | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER LOCK 6MM | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X25 | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | KX400 |
| SCREW PAN HEAD 6X22 | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | KX400-A2 |
| SPRING-CONNECTOR | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | KX400-A2 |
| GASKET,CARB HOLDER | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | F/NO. 905881- |
