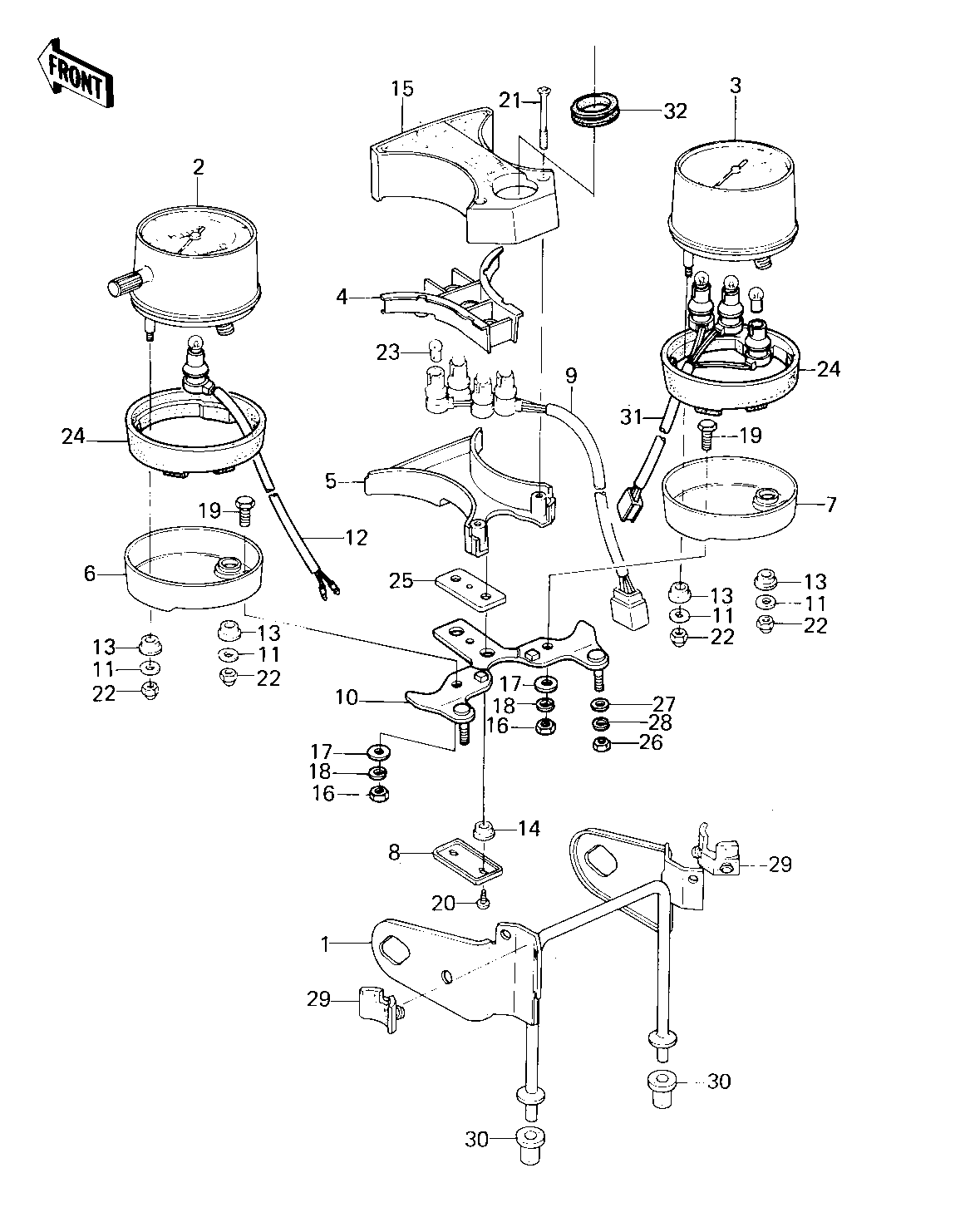

1979 KZ400-H1 - METERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LAMP 1 11034-1535 1
SPEEDOMETER,MPH 2 25005-1040 1
SPEEDOMETER,KPH (Canada) 2 25005-1053 1
TACHOMETER,X1000R/MIN 3 25015-1068 1
PLATE,SOCKET 4 13169-1133 1
COVER,PILOT BOX,LOWER 5 14025-1093 1
COVER,SPEEDOMETER 6 14025-1094 1
COVER,TACHOMETER 7 14025-1095 1
COVER,PILOT BOX DAMPR 8 14025-1096 1
SOCKET ASSY,PILOT BOX 9 23008-1031 1
BRACKET,METER 10 25008-1021 1
WASHER,5.2X16X16X1.2T 11 25009-004 4
SOCKET ASSY 12 25010-022 1
DAMPER RUBBER-METER 13 25019-013 4
DAMPER RUBBER,MET FIT 14 25019-023 2
COVER,PILOT BOX,UPPER 15 25023-1008 1
NUT,8MM 16 311B0800 2
WASHER PLAIN 8MM 17 411B0800 2
WASHER SPRING 8MM 18 461F0800 2
BOLT,METER,8X16 19 92001-1154 2
SCREW,TAPPING,4X10 20 92009-1040 2
SCREW-CSK-RD-CROS,4X4 21 222C0445 2
NUT-CAP,5MM 22 322N0500 4
BULB 12V 3W 23 92069-018 8
DAMPER,METER 24 92075-1498 2
DAMPER,PILOT BOX 25 92075-1136 1
NUT 6MM 26 311B0600 2
WASHER PLAIN 6MM 27 411B0600 2
WASHER SPRING 6MM 28 461F0600 2
DAMPER,LAMP BRACKET 29 92075-1106 2
DAMPER,LAMP BRACKET 30 92075-1107 2
SOCKET ASSY,TACHOMETR 31 23008-1049 1
DAMPER,PILOT BOX 32 92075-1204 1
