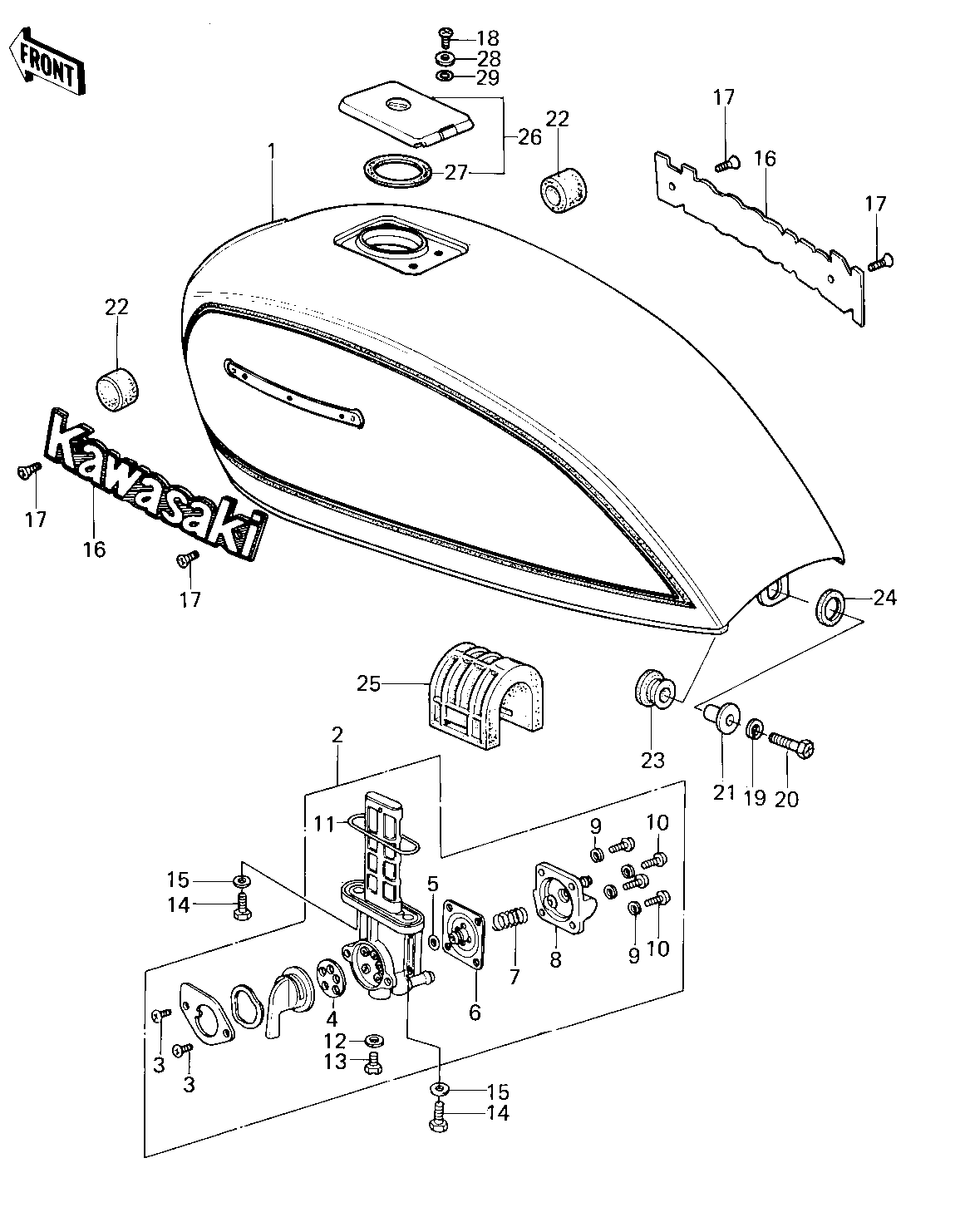

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK-FUEL,EBONY | 1 | 51001-1026-8G | 1 | ||
| TAP ASSY,FUEL | 2 | 51023-1030 | 1 | ||
| SCREW PAN HEAD 4X8 | 3 | 220B0408 | 2 | ||
| GASKET,TAP VALVE | 4 | 11009-1068 | 1 | ||
| "0" RING,DIAPHRAGM | 5 | 92055-1068 | 1 | ||
| DIAPHRAGM ASSY,TAP | 6 | 43028-1009 | 1 | ||
| SPRING,DIAPHRAGM | 7 | 92081-1054 | 1 | ||
| COVER ASSY,TAP DIAPRM | 8 | 16146-1006 | 1 | ||
| WASHER SPRING 4MM | 9 | 461F0400 | 4 | ||
| SCREW PAN HEAD 4X10 | 10 | 220B0410 | 4 | ||
| "O" RING,TAP FLANGED | 11 | 43058-1006 | 1 | ||
| GASKET,DRAIN BOLT | 12 | 11009-1045 | 1 | ||
| BOLT,DRAIN | 13 | 92001-1089 | 1 | ||
| BOLT,6X20,FUEL TAP | 14 | 92001-1091 | 2 | ||
| WASHER-PLAIN | 15 | 92022-183 | 2 | ||
| EMBLEM,FUEL TANK | 16 | 56014-1038 | 2 | ||
| SCREW-CSK-CROS | 17 | 221C0306 | 4 | ||
| SCREW PAN HEAD 5X10 | 18 | 220B0510 | 2 | ||
| WASHER SPRING 6MM | 19 | 461F0600 | 1 | ||
| BOLT,HEX HEAD,6X25 | 20 | 92001-1284 | 1 | ||
| COLLAR | 21 | 92027-251 | 1 | ||
| DAMPER RUBBER-FL TANK | 22 | 92075-101 | 2 | ||
| RUBBER,FENDER COVER | 23 | 92075-174 | 1 | ||
| DAMPER RUBBER | 24 | 92075-175 | 1 | ||
| DAMPER RUBBER | 25 | 92075-284 | 1 | ||
| CAP ASSY TANK | 26 | 51048-1018 | 1 | ||
| GASKET,FUEL TANK CAP | 27 | 11009-1051 | 1 | ||
| WASHER,PLAIN | 28 | 92022-1038 | 2 | ||
| "0" RING | 29 | 92055-1023 | 2 |
