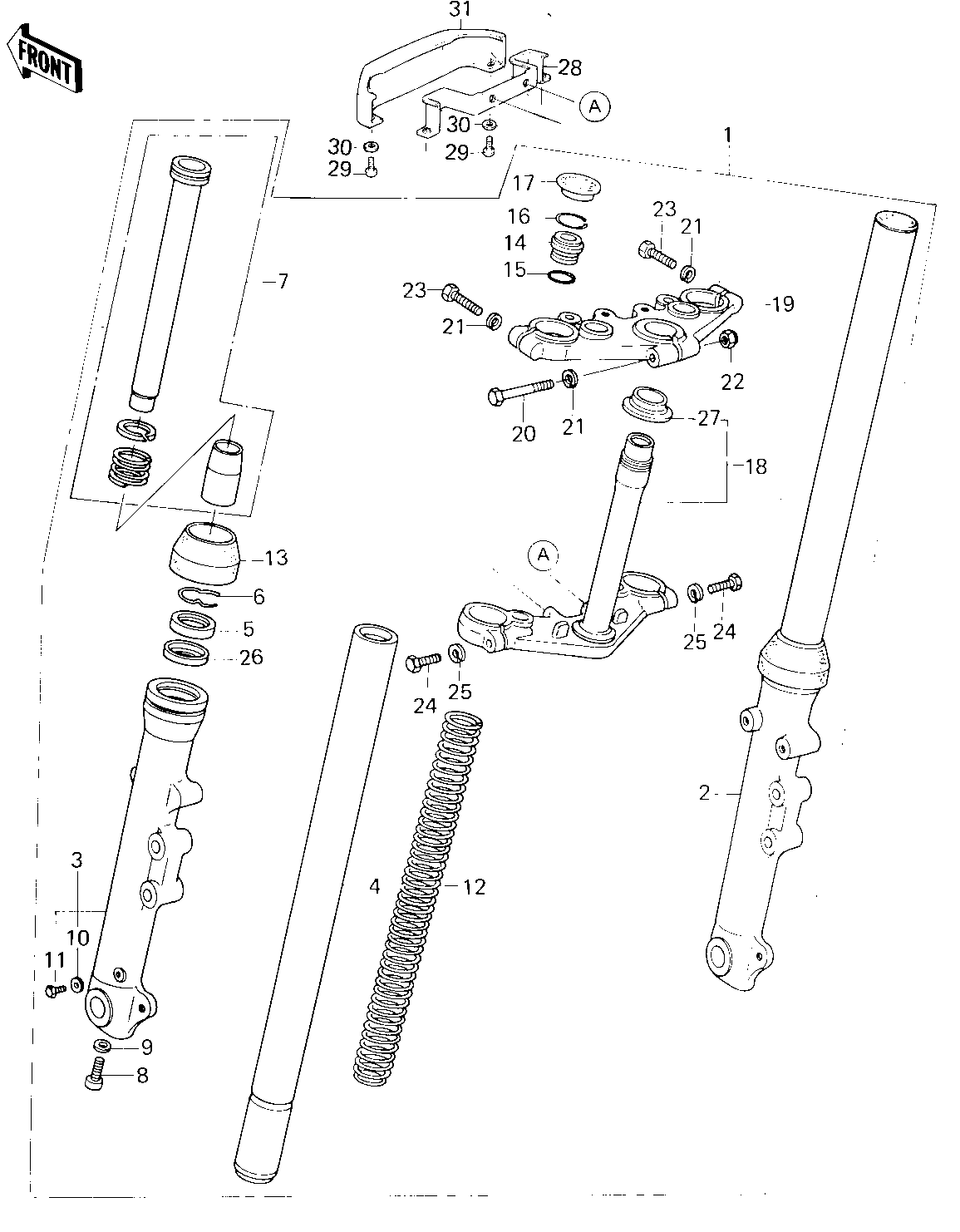

1979 KZ400-H1 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1214 1
TUBE,RH,FORK OUTER 2 44006-1029 1
TUBE,LH,FORK OUTER 3 44005-1029 1
TUBE,FORK INNER 4 44013-1025 2
OIL SEAL,FORK 5 92049-1077 2
RING,OIL SEAL STOPER 6 44043-057 2
CYLINDER-FORK 7 44022-1028 2
BOLT,FORK CYLINDER 8 44041-078 2
GASKET,FORK CYL BOLT 9 44045-051 2
GASKET,DRAIN PLUG 10 44045-047 2
BOLT HEX HEAD 6X8 11 110B0608 2
SPRING,FORK INNER 12 44026-1037 2
DUST SHIELD,FORK 13 92093-1063 2
GUIDE,SPRING 14 44029-022 2
"O" RING 15 44046-025 2
CIRCLIP 16 44044-023 2
CAP,RUBBER,FORK TOP 17 11012-1021 2
STEM,STEERING 18 44037-1014 1
HEAD,STEERING STEM 19 44039-1023 1
BOLT,HEX HEAD,8X55 20 92001-1064 1
WASHER SPRING 8MM 21 461F0800 3
NUT,LOCK,8MM 22 92015-1124 1
BOLT,HEX HEAD,8X40 23 92001-1063 2
BOLT,HEX HEAD 10X35 24 92001-1252 2
WASHER SPRING 10MM 25 461F1000 2
SPACER,FORK 26 92026-1005 2
CONE STRNG STEM BERNG 27 92047-006 1
BRACKET,FORK COVER 28 11034-1698 1
SCREW PAN HEAD 4X10 29 220B0410 2
WASHER PLAIN 4MM 30 410B0400 2
COVER,FORK 31 44033-1042 1
