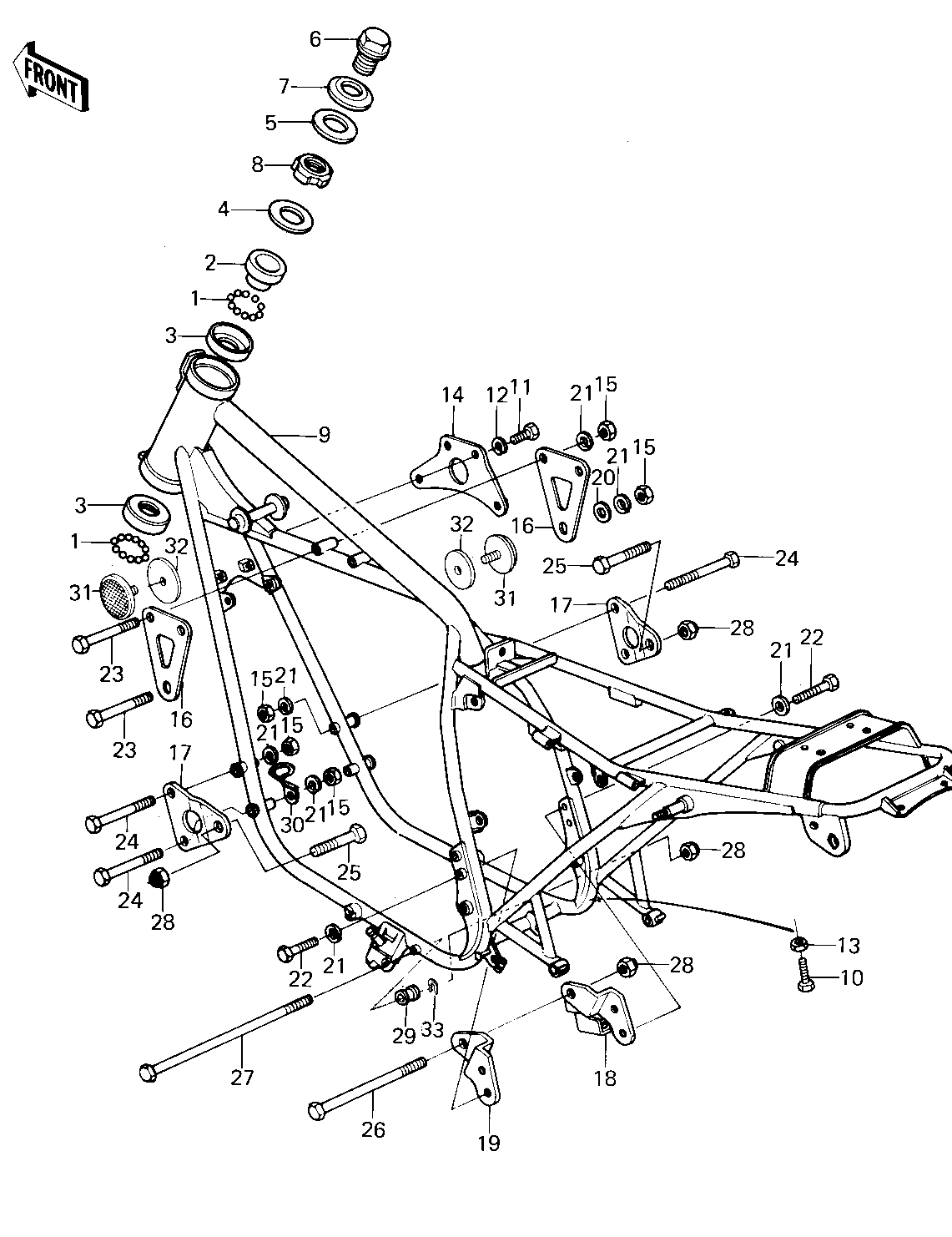

1979 KZ400-H1 - FRAME/FRAME FITTINGS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALL STEEL 1/4' 1 600A0800 38
CONE STRNG STEM BERNG 2 92047-006 1
RACE STRNG STEM BERNG 3 92048-006 2
CAP, STEERING STEM 4 46098-016 1
WASHER,WAVE 5 46100-003 1
BOLT,STEERG STEM HEAD 6 92007-031 1
WASHER,STEERG STM HD 7 92022-230 1
NUT STEERING STEM LCK 8 92090-007 1
FRAME-COMP 9 32002-1248 1
BOLT-UPSET,6X20 10 112G0620 1
BOLT-UPSET 6X14 11 112B0614 2
WASHER SPRING 6MM 12 461F0600 2
NUT 6MM 13 311B0600 1
BRACKET,IGNITON COIL 14 32058-049 1
NUT,8MM 15 311B0800 7
BRACKET,ENGINE,HEAD 16 32029-1097 2
BRACKET,ENGINE,FRONT 17 32029-1098 2
BRACKET,ENG,REAR,R.H. 18 32029-1099 1
BRACKET,ENG REAR,L.H. 19 32029-1100 1
WASHER PLAIN 8MM 20 411B0800 1
WASHER SPRING 8MM 21 461F0800 11
BOLT,FLANGED,8X35 22 92001-1577 4
BOLT,FLANGED,8X60 23 92001-1581 3
BOLT,HEX HEAD,8X65 24 92001-1236 4
BOLT,HEX HEAD,10X50 25 92001-1254 2
BOLT,HEX HEAD,10X200 26 92001-1260 1
BOLT,10X300,REAR LOWR 27 92001-1272 1
NUT,LOCK,10MM 28 92019-021 4
COLLAR,ENG MOUNTING 29 92027-160 AR
COLLAR 29 92027-250 AR
CLAMP,CABLE 30 92037-1015 1
REFLECTOR,REFLEX 31 28012-016 2
DAMPER RUBBER,REFLECT 32 92094-011 2
SHIM-ENG FIT FR,0.5MM 33 92025-053 AR
