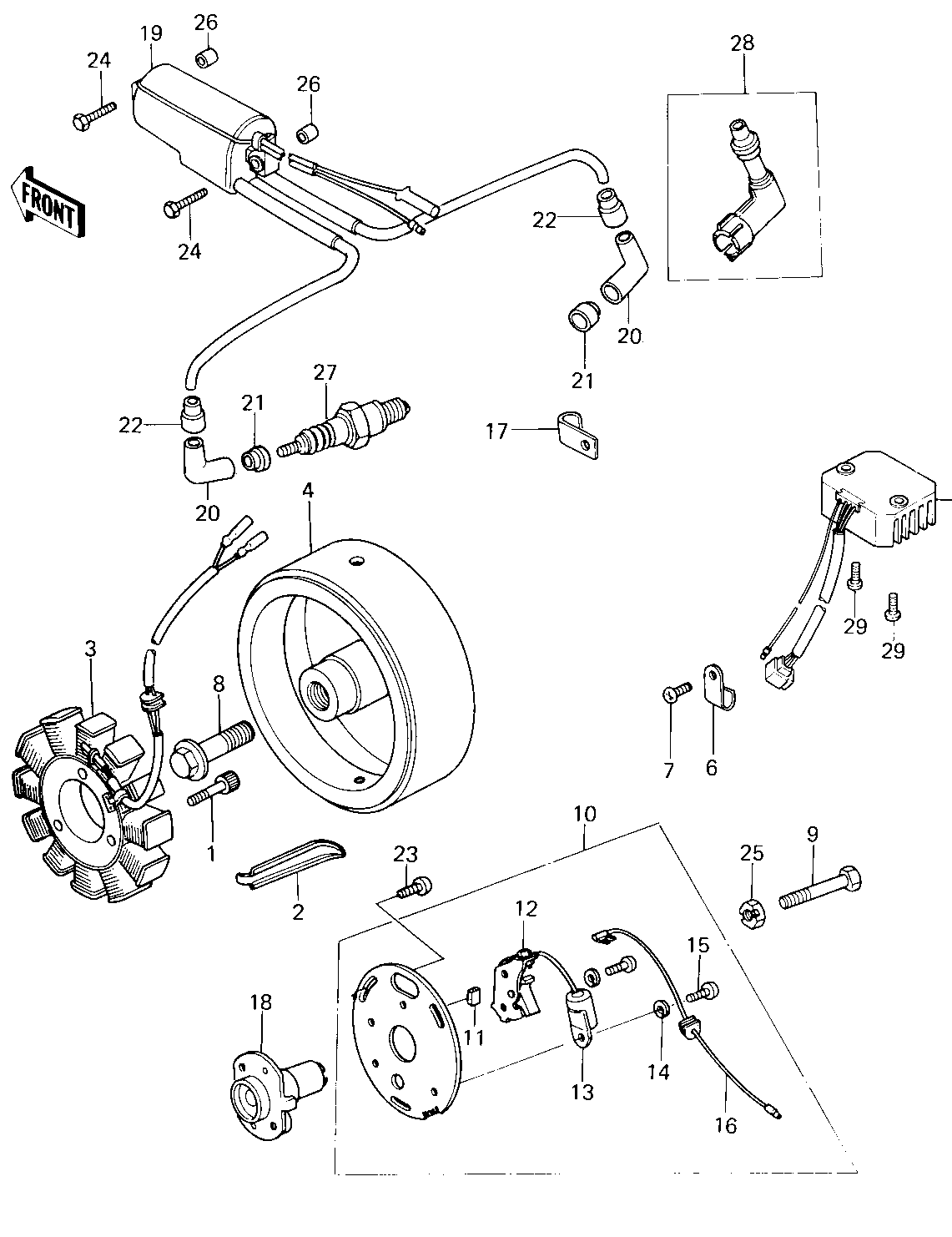

1979 KZ400-H1 - IGNITION/GENERATOR/REGULATOR
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,ALLEN,6X28 | 1 | 120P0628 | 3 | ||
| PLATE,LEAD CLAMP | 2 | 13169-1008 | 1 | ||
| STATOR.ASSY,GENERATER | 3 | 21003-1009 | 1 | ||
| FLYWHEEL | 4 | 21050-1004 | 1 | ||
| REGULATOR | 5 | 21066-029 | 1 | ||
| CLAMP,WIRING HARNESS | 6 | 21126-008 | 1 | ||
| SCREW PAN HEAD 6X10 | 7 | 220B0610 | 1 | ||
| BOLT,10X40 | 8 | 92002-1303 | 1 | ||
| BOLT-8X63 | 9 | 92001-1397 | 1 | ||
| BREAKER ASSY,CONTACT | 10 | 21008-1014 | 1 | ||
| FELT OIL | 11 | 21019-005 | 1 | ||
| BREAKER,CONTACT | 12 | 21008-027 | 1 | ||
| CONDENSER | 13 | 21013-1004 | 1 | ||
| WASHER SPRING 6MM | 14 | 461F0600 | 4 | ||
| SCREW PAN HEAD 4X6 | 15 | 220B0406 | 4 | ||
| WIRE,LEAD,BREAKER | 16 | 26011-1030 | 1 | ||
| CLAMP,WIRING HARNESS | 17 | 21126-008 | 1 | ||
| GOVERNOR,BREAKER | 18 | 21148-1002 | 1 | ||
| COIL-IGNITION | 19 | 21121-1174 | 1 | ||
| CAP-SPARK PLUG,RTFM20 | 20 | 21130-1007 | 2 | ||
| GROMMET-PLUG CAP,A | 21 | 21131-004 | 2 | ||
| GROMMET,SPARK PLG CAP | 22 | 21132-005 | 2 | ||
| SCREW PAN HEAD 5X12 | 23 | 220B0512 | 3 | ||
| BOLT, IGNITION COIL | 24 | 92003-170 | 2 | ||
| WASHER,SPARK ADVANCER | 25 | 92022-244 | 1 | ||
| COLLAR,IGNITION COIL | 26 | 92027-276 | 2 | ||
| SPARK PLUG B7ES | 27 | B7ES | 2 | ||
| CAP,SPARK PLUG | 28 | 21160-005 | 2 | USE FOR CANADIAN MARKET | |
| SCREW PAN HEAD 6X14 | 29 | 220B0614 | 2 |
