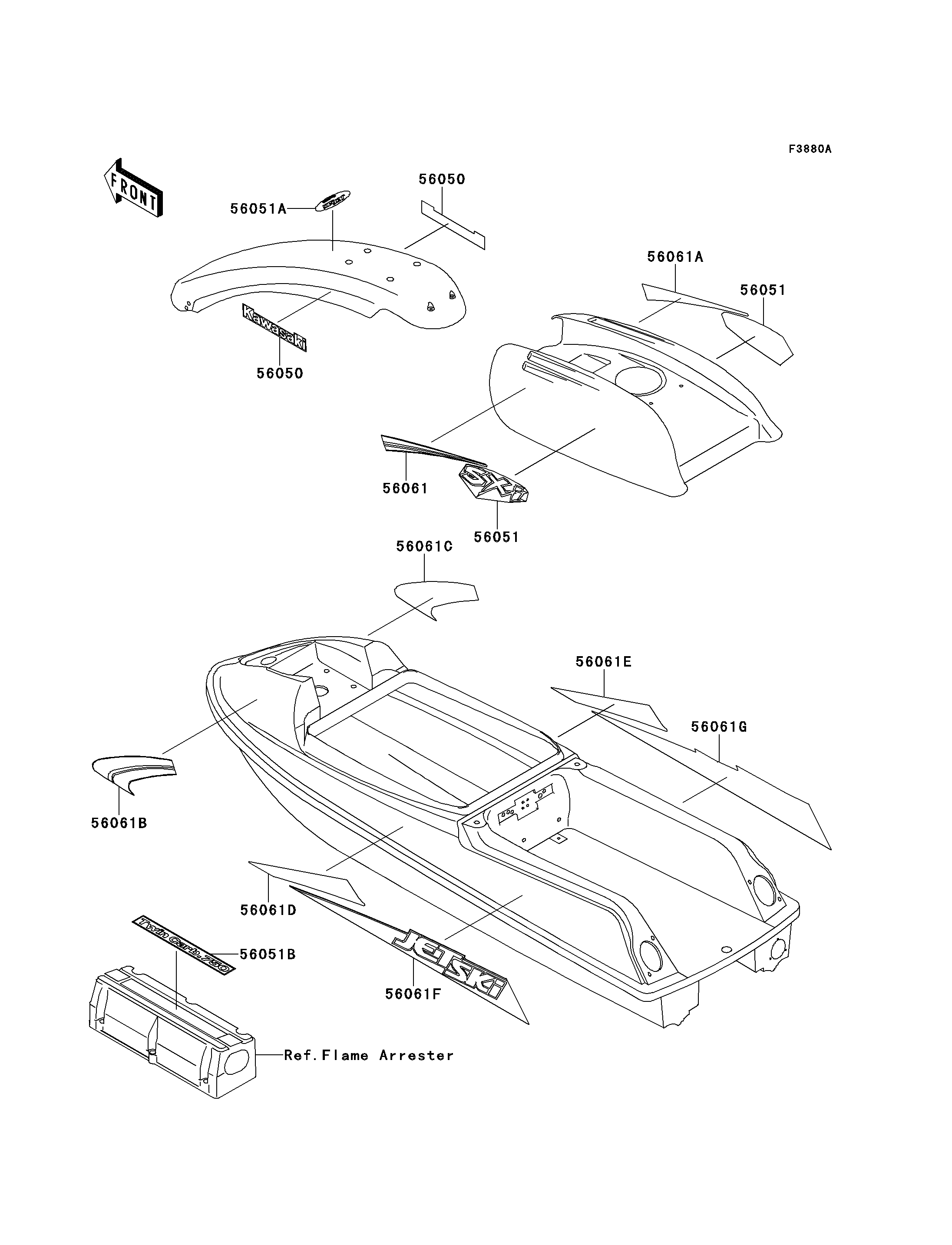

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,HANDLE COVER,KAWASAKI | 56050 | 56050-1981 | 2 | ||
| MARK,ENGINE HOOD,SXI | 56051 | 56051-3730 | 2 | ||
| MARK,METER COVER,JET SKI | 56051A | 56051-3735 | 1 | ||
| MARK,TWIN CARB.750 | 56051B | 56051-3742 | 1 | ||
| PATTERN,ENGINE HOOD,LH | 56061 | 56061-3746 | 1 | ||
| PATTERN,ENGINE HOOD,RH | 56061A | 56061-3747 | 1 | ||
| PATTERN,DECK,FR,LH | 56061B | 56061-3748 | 1 | ||
| PATTERN,DECK,FR,RH | 56061C | 56061-3749 | 1 | ||
| PATTERN,DECK,CNT,LH | 56061D | 56061-3750 | 1 | ||
| PATTERN,DECK,CNT,RH | 56061E | 56061-3751 | 1 | ||
| PATTERN,DECK,RR,LH | 56061F | 56061-3752 | 1 | ||
| PATTERN,DECK,RR,RH | 56061G | 56061-3753 | 1 |
| MARK,HANDLE COVER,KAWASAKI | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,ENGINE HOOD,SXI | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,METER COVER,JET SKI | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,TWIN CARB.750 | |
| REF # | 56051B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,LH | |
| REF # | 56061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,RH | |
| REF # | 56061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,LH | |
| REF # | 56061B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,RH | |
| REF # | 56061C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,CNT,LH | |
| REF # | 56061D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,CNT,RH | |
| REF # | 56061E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,LH | |
| REF # | 56061F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,RH | |
| REF # | 56061G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
