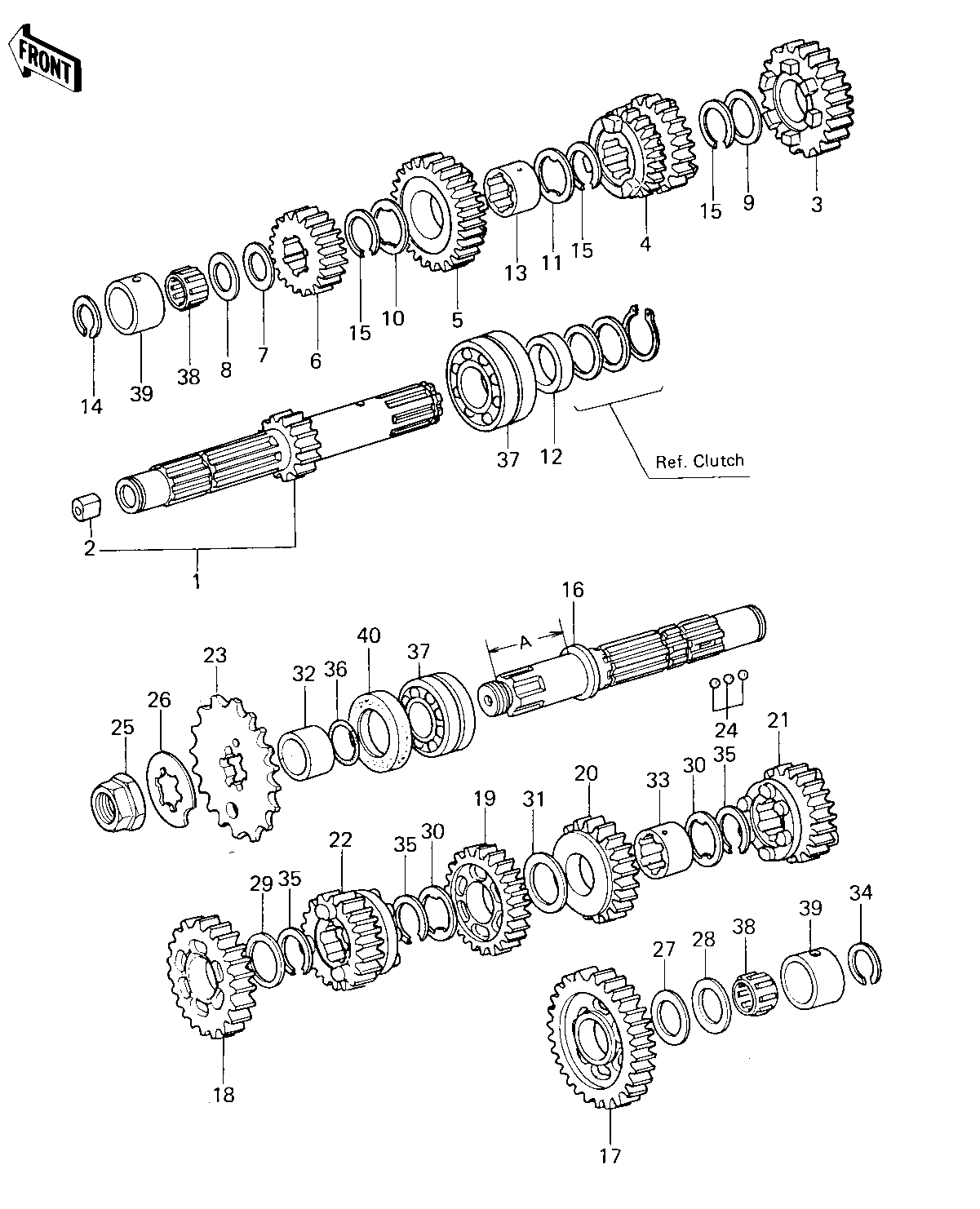

1979 KZ400-H1 - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,DRIVE,13T 1 13127-1004 1
BUSHING,DRIVE SHAFT 2 92028-155 1
GEAR,INPUT5TH,23T 3 13129-1277 1
3RD-4TH GEAR,DRV SHFT 4 13129-1054 1
TOP GEAR,DRV SHAFT 5 13129-1055 1
2ND GEAR,DRV SHAFT 6 13129-1062 1
WASHER THRUST 7 92022-112 1
SHIM-KICK SHAFT 8 92022-144 AR
WASHER-PLAIN 25MM 9 92022-159 1
WASHER-LOCK 10 92024-033 1
WASHER-LOCK 11 92024-038 1
COLLAR 12 92027-289 1
BUSHING,OUTPUT 3RD GR 13 92028-1002 1
CIRCLIP 14 92033-015 1
CIRCLIP 15 92033-026 3
SHAFT,OUTPUT 16 13128-1015 1
LOW GEAR,OUTPUT SHAFT 17 13129-1056 1
2ND GEAR,OUTPUT SHAFT 18 13129-1057 1
3RD GEAR,OUTPUT SHAFT 19 13129-1058 1
4TH GEAR,OUTPUT SHAFT 20 13129-1059 1
5TH GEAR,OUTPUT SHAFT 21 13129-1060 1
TOP GEAR,OUTPUT SHAFT 22 13129-1061 1
ENGINE SPROCKET,15T 23 13144-1018 1
BALL STEEL 5/32' 24 600A0500 3
NUT,20MM 25 92015-1254 1
WASHER,SPLINE 26 92022-1083 1
WASHER THRUST 27 92022-112 1
SHIM-KICK SHAFT 28 92022-144 AR
WASHER-PLAIN 25MM 29 92022-159 1
WASHER-LOCK 30 92024-038 2
WASHER,THRUST 31 92026-079 1
COLLAR,ENG SPROCKET 32 92027-288 1
BUSHING,OUTPUT GEAR 33 92028-1268 1
CIRCLIP 34 92033-015 1
CIRCLIP 35 92033-026 3
"O" RING 36 92055-035 1
BEARING,B,5205ANX4PX 37 92045-031 2
BRG,N,20R25139 38 92046-044 2
RACE,OUT & DRV SHAFT 39 92048-1001 2
OIL SEAL SC325210 40 92050-024 1
