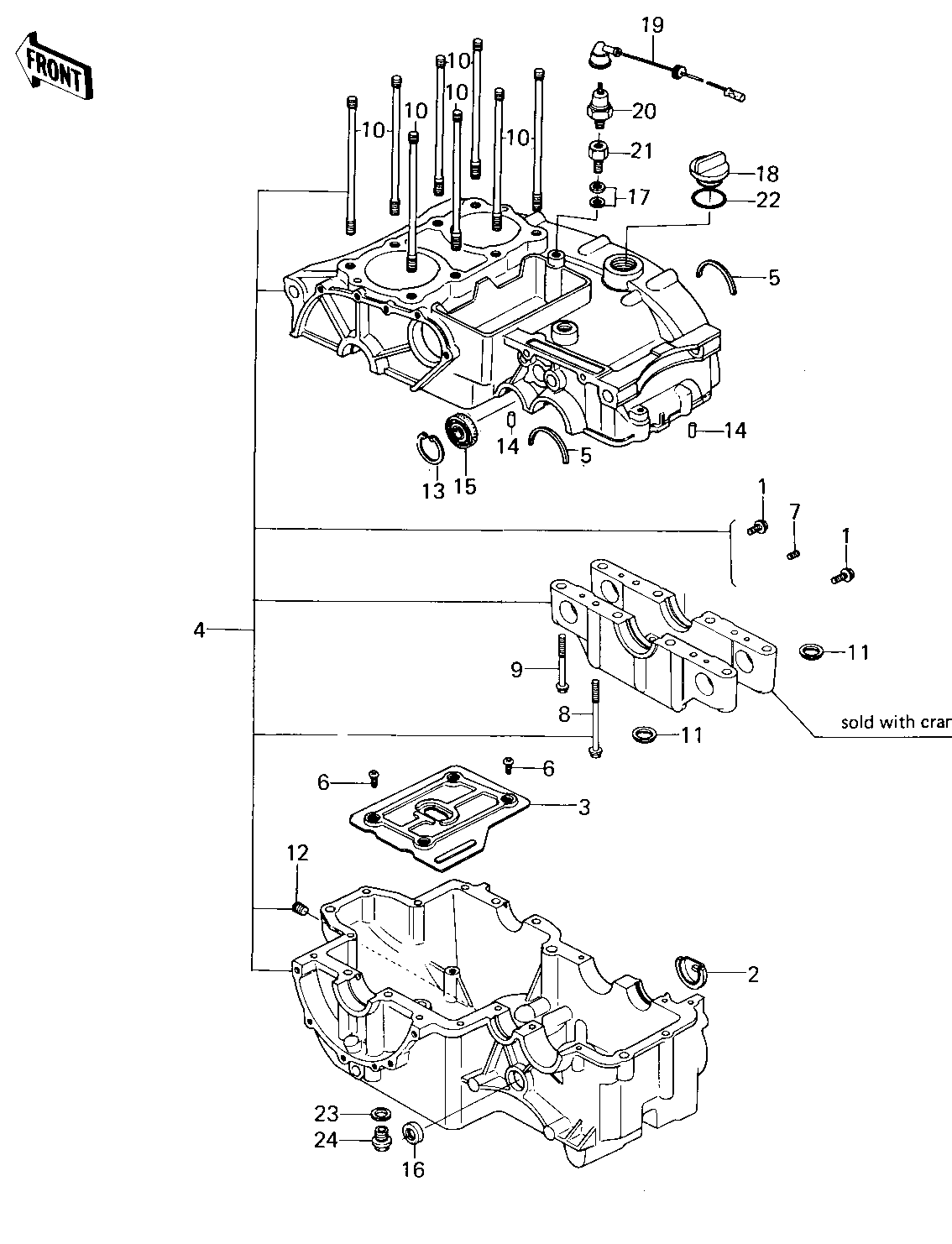

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,FLANGED,6X8 | 1 | 130P0608 | 8 | * | |
| BOLT,FLANGED,6X8 | 1 | 130P0608 | 8 | * | |
| RECEIVER,OIL | 2 | 13045-1001 | 1 | ||
| PLATE,CRANKCASE | 3 | 13169-1103 | 1 | ||
| SET-CRANKCASE | 4 | 14001-5087 | 1 | ||
| RING BEARING SETTING | 5 | 14013-004 | 2 | ||
| SCREW PAN HEAD 6X12 | 6 | 220B0612 | 4 | ||
| SCREW,6X6 | 7 | 290Q0606 | 4 | * | |
| SCREW,6X6 | 7 | 290Q0606 | 4 | * | |
| BOLT,FLANGED,10X91 | 8 | 92001-1004 | 4 | * | |
| BOLT,FLANGED,10X91 | 8 | 92001-1004 | 4 | * | |
| BOLT,FLANGED,10X91 | 8 | 92001-1004 | 3 | ||
| BOLT,FLANGED,8X58 | 9 | 92001-1005 | 4 | ||
| STUD,10X153 | 10 | 92004-062 | 4 | * | |
| STUD,10X153 | 10 | 92004-062 | 4 | * | |
| O RING,0.D=18MM | 11 | 92055-048 | 2 | ||
| PLUG,OIL SWITCH | 12 | 92066-059 | 2 | * | |
| PLUG,OIL SWITCH | 12 | 92066-059 | 2 | * | |
| CIRCLIP,36M/M | 13 | 481J3600 | 1 | ||
| PIN DOWEL 6MM | 14 | 92042-016 | 2 | ||
| OIL SEAL,PUSH ROD | 15 | 92049-1041 | 1 | ||
| OIL SEAL,TB13225.5 | 16 | 92051-005 | 1 | ||
| GASKET,10X14.5X1.5 | 17 | 11009-1105 | 2 | ||
| PLUG,OIL FILLER | 18 | 16115-013 | 1 | ||
| WIRE,LEAD,OIL SWITCH | 19 | 26011-1078 | 1 | ||
| SWITCH,OIL PRESSURE | 20 | 27010-1157 | 1 | ||
| BOLT,OIL SWITCH | 21 | 92001-1020 | 1 | ||
| "0" RING,31MM | 22 | 92055-049 | 1 | ||
| GASKET,DRIN PLUG | 23 | 92065-097 | 1 | ||
| PLUG,OIL DRAIN,12X15 | 24 | 92066-1174 | 1 |
| BOLT,FLANGED,6X8 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | * |
| BOLT,FLANGED,6X8 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | * |
| RECEIVER,OIL | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CRANKCASE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SET-CRANKCASE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING BEARING SETTING | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X6 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | * |
| SCREW,6X6 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | * |
| BOLT,FLANGED,10X91 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | * |
| BOLT,FLANGED,10X91 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | * |
| BOLT,FLANGED,10X91 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X58 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STUD,10X153 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | * |
| STUD,10X153 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | * |
| O RING,0.D=18MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG,OIL SWITCH | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | * |
| PLUG,OIL SWITCH | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | * |
| CIRCLIP,36M/M | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN DOWEL 6MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,PUSH ROD | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,TB13225.5 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,10X14.5X1.5 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG,OIL FILLER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE,LEAD,OIL SWITCH | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,OIL PRESSURE | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,OIL SWITCH | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,31MM | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,DRIN PLUG | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,OIL DRAIN,12X15 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
