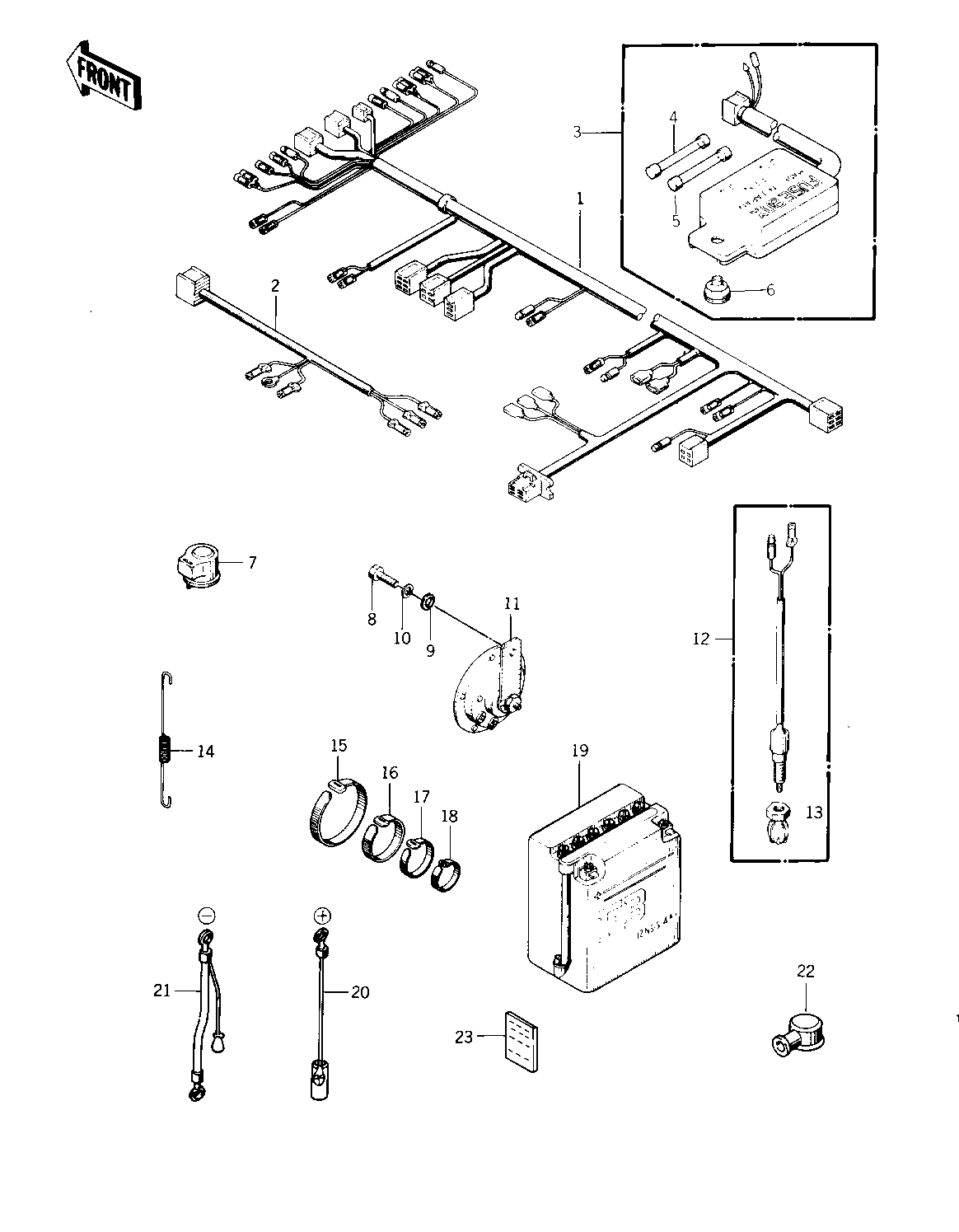

1976 Special - CHASSIS ELECTRICAL EQUIPMENT ('76-'77 S2
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WIRING HARNESS,MAIN | 1 | 26001-136 | 1 | ||
| WIRING HARNESS REAR | 2 | 26002-049 | 1 | ||
| FUSE ASSY | 3 | 26004-035 | 1 | ||
| FUSE-20A | 4 | 26006-005 | 2 | ||
| FUSE 10A | 5 | 26006-003 | 3 | ||
| DAMPER RUBBER,FUSE | 6 | 92075-279 | 1 | ||
| RELAY-TURN SIGNAL | 7 | 27002-011 | 1 | ||
| BOLT,8X20 | 8 | 115G0820 | 1 | ||
| WASHER PLAIN 8MM | 9 | 410B0800 | 1 | ||
| WASHER SPRING 8MM | 10 | 461F0800 | 1 | ||
| HORN | 11 | 27003-1006 | 1 | ||
| SWITCH,BRAKE LIGHT | 12 | 27010-025 | 1 | ||
| NUT,BRAKE LAMP SWITCH | 13 | 27037-001 | 1 | ||
| SPRING,BRAKE LIGHT SW | 14 | 27011-015 | 1 | ||
| BAND,LONG | 15 | 92072-032 | 5 | KZ400-S2 | |
| BAND,MIDDLE | 16 | 92072-031 | 5 | KZ400-S2 | |
| BAND,SHORT | 17 | 92072-030 | 10 | KZ400-S2 | |
| BAND,BREATHER WIRE | 18 | 92072-067 | 3 | KZ400-S2 | |
| FB BAT 12N5.5-4A | 19 | 26012-022 | 1 | KZ400-S2 | |
| YUA BAT 12N5.5-4A | 19 | K26012-022 | 1 | KZ400-S3 | |
| WIRE,BATTERY LEAD | 20 | 26010-046 | 1 | ||
| WIRE,BATTERY GROUND | 21 | 26010-047 | 1 | ||
| CAP BAT TERMINAL RUBB | 22 | 92073-001 | 1 | ||
| LABEL-WARNING,BATTERY | 23 | 56040-1036 | 1 |
