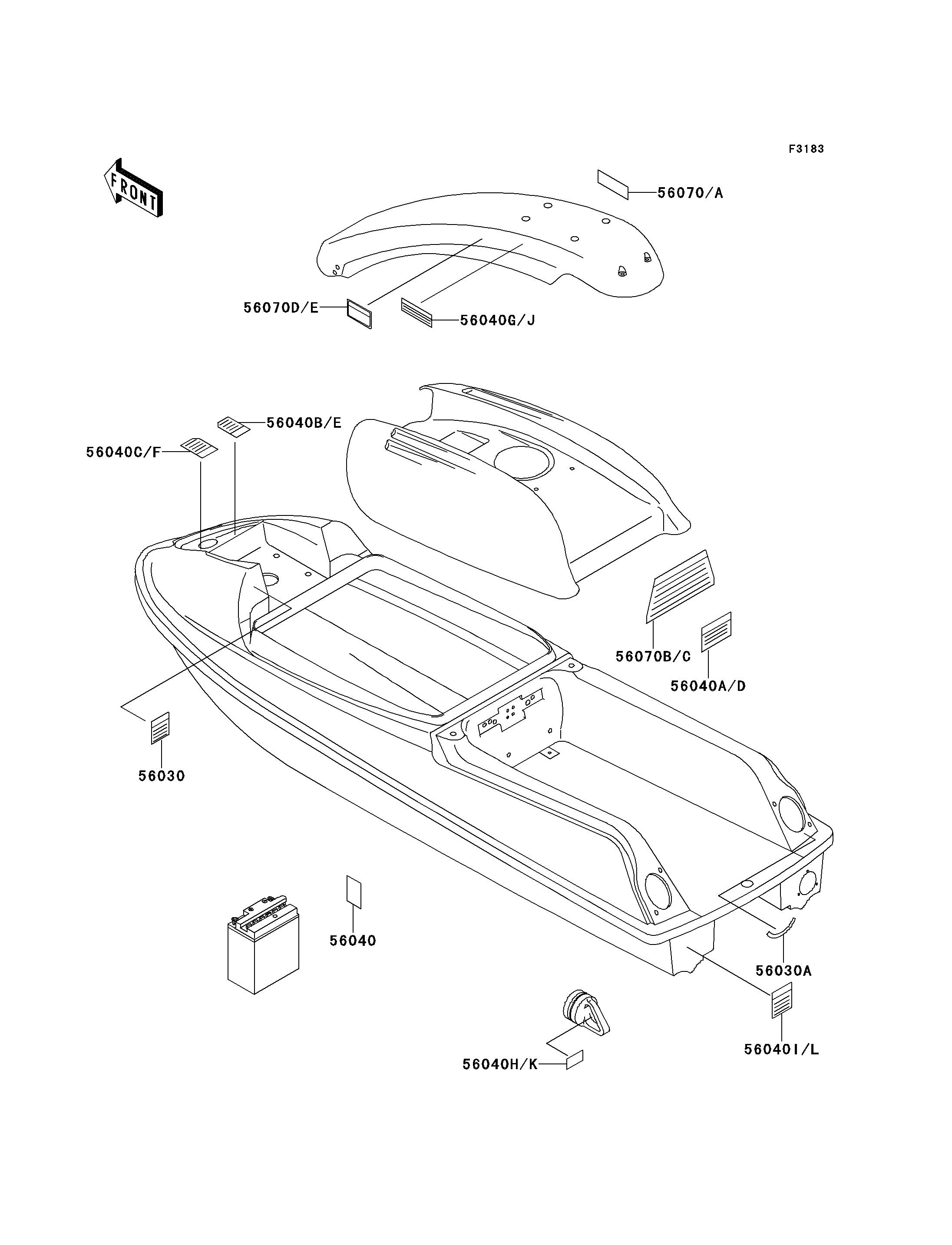

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,FIRE EXTINGUISHER | 56030A | 56030-3789 | 1 | ||
| LABEL-WARNING,CAUTION SAFETY | 56040A | 56040-3933 | 1 | ||
| LABEL-WARNING,FUEL SUPPLY | 56040B | 56040-3934 | 1 | ||
| LABEL-WARNING,OIL CAUTION | 56040C | 56040-3935 | 1 | ||
| LABEL-WARNING,CAUTION SAFETY | 56040G | 56040-3944 | 1 | ||
| LABEL-WARNING,CAUTION SAFETY | 56040H | 56040-3945 | 2 | ||
| LABEL-WARNING,NOZZLE | 56040I | 56040-3946 | 1 | ||
| LABEL-WARNING,CAUTION SAFETY | 56070 | 56070-3723 | 1 | ||
| LABEL-WARNING,IMPORTANT SAFETY | 56070B | 56070-3740 | 1 | ||
| LABEL-WARNING,TETHER SWITCH | 56070D | 56070-3787 | 1 | ||
| LABEL,OIL RECOMMENDED(FRENCH) | 56030 | 56030-3765 | 1 | CN | |
| LABEL,BATTERY CAUTION(FRENCH) | 56040 | 56040-1106 | 1 | CN | |
| LABEL-WARNING,CAUTION SAFETY | 56040D | 56040-3940 | 1 | CN | |
| LABEL,FUEL SUPPLY(FRENCH) | 56040E | 56040-3941 | 1 | CN | |
| LABEL-WARNING,OIL CAUTION | 56040F | 56040-3942 | 1 | CN | |
| LABEL-WARNING,CAUTION SAFETY | 56040J | 56040-3952 | 1 | CN | |
| LABEL-WARNING,CAUTION SAFETY | 56040K | 56040-3953 | 2 | CN | |
| LABEL,NOZZLE CHECK(FRENCH) | 56040L | 56040-3954 | 1 | CN | |
| LABEL,CAUTION SAFETY(FRENCH) | 56070A | 56070-3725 | 1 | CN | |
| LABEL,IMPORTANT SAFETY(FRENCH) | 56070C | 56070-3742 | 1 | CN | |
| LABEL,TETHER SWITCH(FRENCH) | 56070E | 56070-3802 | 1 | CN |
