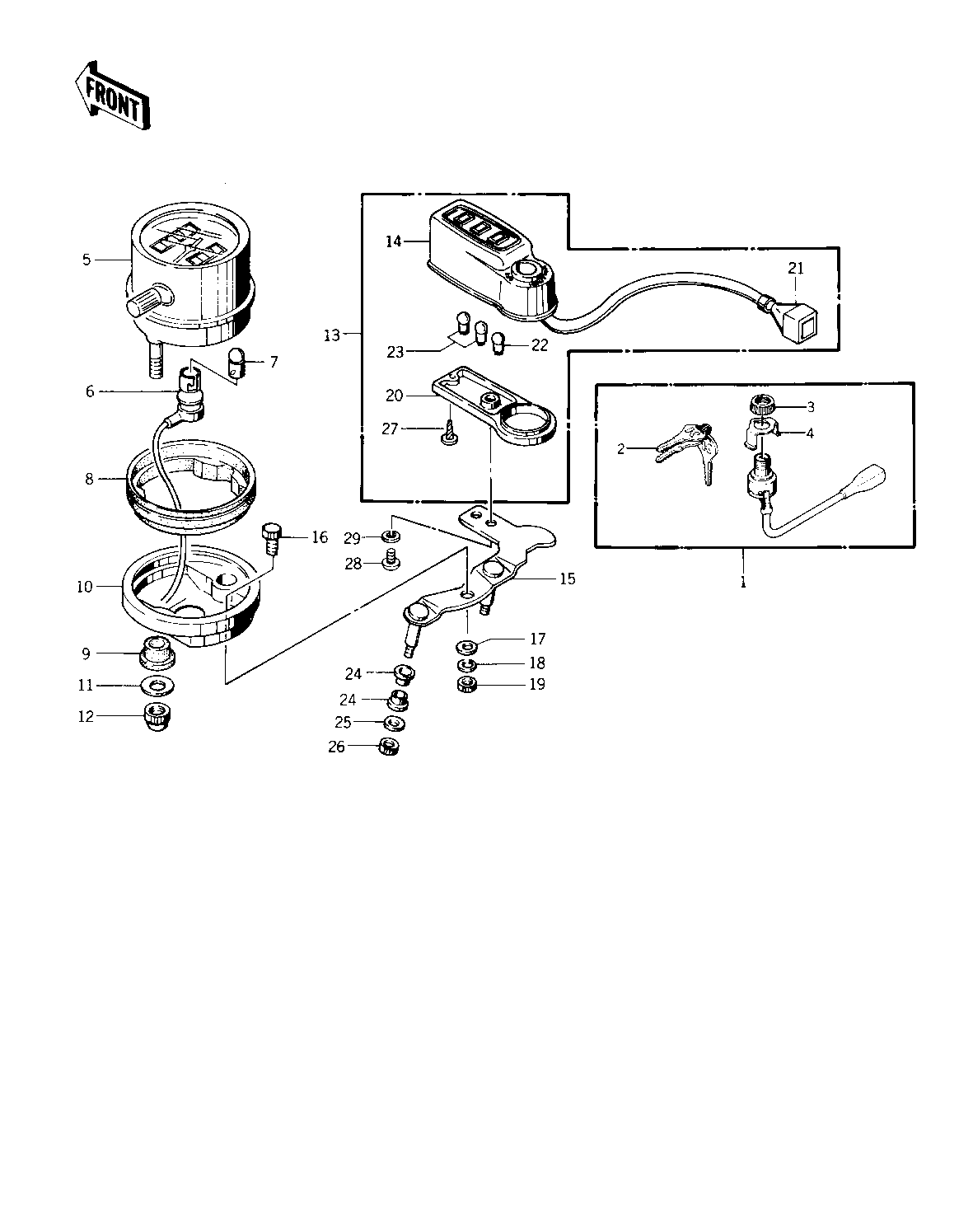

1976 Special - METER/IGNITION SWITCH ('76-'77 S2/S3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH ASSY,IGNITION 1 27005-089 1
KEY SET,#751 2 27008-064-51 1
KEY SET, #752 2 27008-064-52 1
KEY SET, #753 2 27008-064-53 1
KEY SET, #754 2 27008-064-54 1
KEY SET,#755 2 27008-064-55 1
KEY SET, #756 2 27008-064-56 1
KEY SET, #757 2 27008-064-57 1
KEY SET,#758 2 27008-064-58 1
KEY SET, #759 2 27008-064-59 1
KEY SET, #760 2 27008-064-60 1
KEY SET,#761 2 27008-064-61 1
KEY SET,#762 2 27008-064-62 1
KEY SET,#763 2 27008-064-63 1
KEY SET,#764 2 27008-064-64 1
KEY SET,#765 2 27008-064-65 1
KEY SET,#766 2 27008-064-66 1
KEY SET,#767 2 27008-064-67 1
KEY SET,#768 2 27008-064-68 1
KEY SET,#769 2 27008-064-69 1
KEY SET,#770 2 27008-064-70 1
KEY SET, #771 2 27008-064-71 1
KEY SET, #772 2 27008-064-72 1
KEY SET,#773 2 27008-064-73 1
KEY SET,#774 2 27008-064-74 1
KEY SET, #775 2 27008-064-75 1
KEY SET, #776 2 27008-064-76 1
KEY SET, #777 2 27008-064-77 1
KEY SET, #778 2 27008-064-78 1
KEY SET, #779 2 27008-064-79 1
KEY SET, #780 2 27008-064-80 1
KEY SET, #781 2 27008-064-81 1
KEY SET, #782 2 27008-064-82 1
KEY SET, #783 2 27008-064-83 1
KEY SET,#784 2 27008-064-84 1
KEY SET, #785 2 27008-064-85 1
KEY SET, #786 2 27008-064-86 1
KEY SET, #787 2 27008-064-87 1
KEY SET, #788 2 27008-064-88 1
KEY SET, #789 2 27008-064-89 1
KEY SET, #790 2 27008-064-90 1
KEY SET, #791 2 27008-064-91 1
KEY SET, #792 2 27008-064-92 1
KEY SET, #793 2 27008-064-93 1
KEY SET, #794 2 27008-064-94 1
KEY,BLANK 2-1 27008-1013 AR
NUT,IGNITION SW LOCK 3 27007-004 1
HOLDER,IGNITION SW 4 27019-004 1
SPEEDOMETER ASSY,MPH 5 25006-061 1 U.S.A
SPEEDOMETER ASSY,KP H (Canada) 5 25006-074 1 CANADA
SOCKET,SPEEDOMETER 6 25010-020 1
BULB 12V 3W 7 92069-018 1
SHOCK DAMPER,SPEEDMET 8 25019-031 1
DAMPER RUBBER-METER 9 25019-013 1
COVER,SPEEDOMETER 10 25012-022 1
WASHER PLAIN 5MM 11 411B0500 2
NUT-CAP,5MM 12 322C0500 2
LIGHT ASSY,PILOT 13 23016-021 1
COVER,INDICATOR,UPPER 14 25023-016 1
BRACKET,SPEEDOMETER 15 25008-048 1
BOLT,HEX HEAD,8X16 16 92003-212 1
WASHER PLAIN 8MM 17 411B0800 1
WASHER SPRING 8MM 18 461F0800 1
NUT,8MM 19 311B0800 1
COVER,INDICATOR,LOWER 20 25024-017 1
SOCKET,INDICATOR 21 25011-052 1
BULB 12V 1.5W 22 92069-017 1 KZ400-S2
BULB 12V 3W 22 92069-018 1 KZ400-S3
BULB 12V 3W 23 92069-018 2
DAMPER RUBBER 24 92075-257 4
WASHER,PLAIN,6MM 25 92022-284 2
NUT 6MM 26 311B0600 2
SCREW,TAPPING 27 92008-012 1
SCREW PAN HEAD 5X10 28 220B0510 1
WASHER SPRING 6MM 29 461F0600 1
