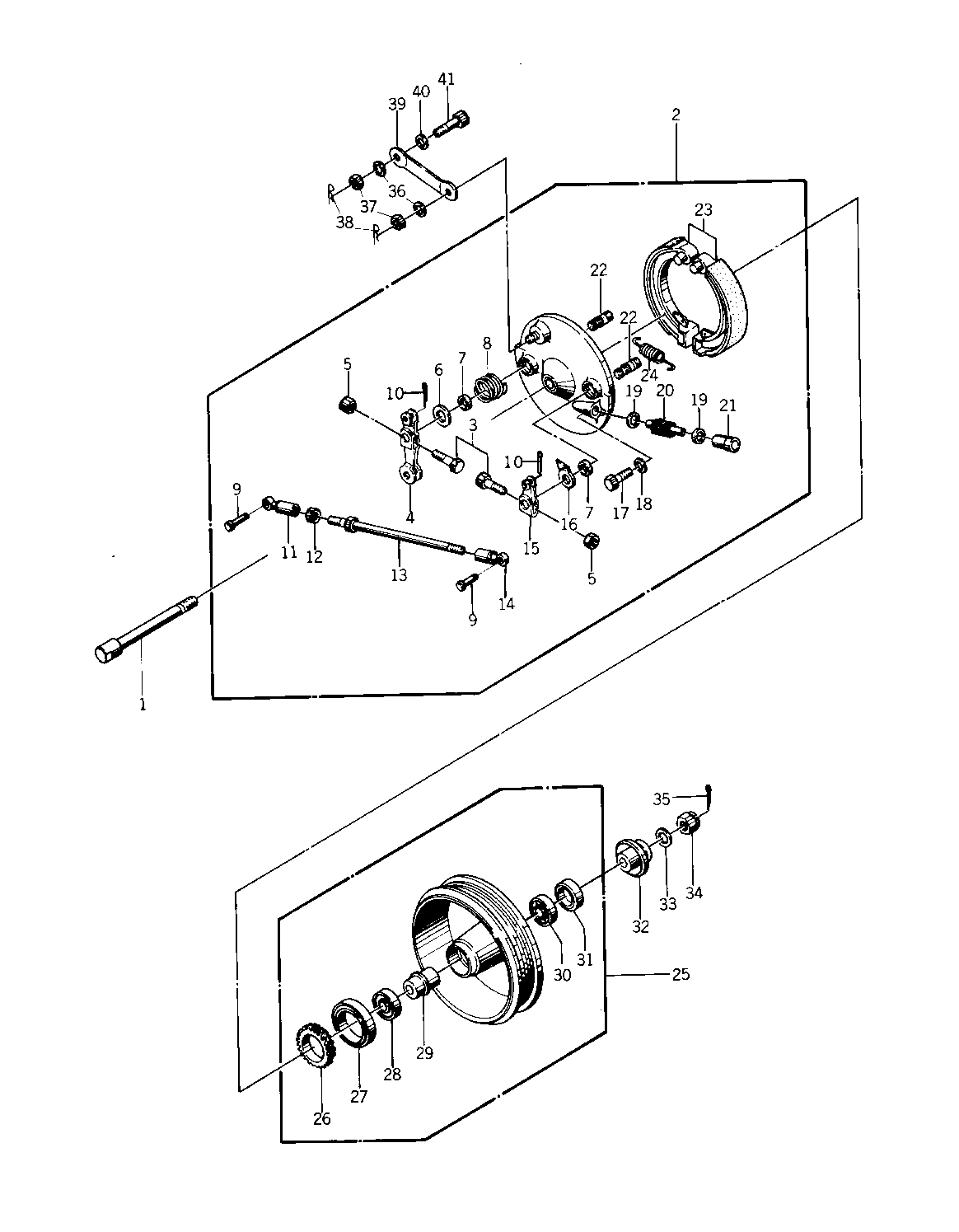

1976 Special - FRONT HUB/BRAKE ('76-'77 S2/S3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,FRONT 1 41068-045 1
PANEL-ASY,FR BRK BUFF 2 41035-062-80 1 BUFF FINISH
.BOLT-UPSET 3 112G0630 2
.LEVER FRT BRK CAM 1ST 4 41053-011 1
.NUT,6MM 5 41072-007 2
.WASHER,BRAKE CAMSHAFT 6 41052-005 1
.DUST SHIELD BRAKE CAM 7 41051-001 2
.SPRING FR BRK CAM LEV 8 41056-001 1
.PIN BRAKE CONNECT ROD 9 41055-003 2
.PIN COTTER 1.2X10 10 550D1210 2
.ROD END,BRK CONNECT 11 41058-008 1
.NUT,5MM 12 311B0500 1
.ROD BRK CAM LEV CONCT 13 41057-004 1
.ROD END,BRK CONNECT 14 41058-009 1
.LEVER FRT BRK CAM 2ND 15 41053-012 1
.INDICATOR,FR BK SHOE 16 41085-015 1
.BOLT-UPSET 17 112G0618 1
.WASHER PLAIN 6MM 18 411B0600 1
.WASHER PINION THRUST 19 41063-003 2
.PINION SPEEDOMETER 20 41060-007 1
.BUSH SPEDMETER PINION 21 41062-003 1
.CAM SHAFT,FRONT BRAKE 22 41050-016 2
.SHOE,BRAKE 23 41048-019 2
.SPRING FRNT BRK SHOE 24 41049-004 2
DRUM-ASSY,FR BRK 25 41034-007 1
.GEAR SPEEDOMETER 26 41059-009 1
.OIL SEAL WOC55687 27 92050-017 1
.SPACER F AXLE BEARING 29 41039-011 1
BEARING BALL #6302 30 601B6302 1
.OIL SEAL WTC25428 31 92052-005 1
COLLAR,FRONT AXLE 32 41069-029 1
WASHER PLAIN 14MM 33 410B1400 1
NUT,14MM 34 42045-020 1
PIN COTTER 3.0X25 35 550D3025 1
WASHER SPRING 10MM 36 461F1000 2
NUT,10MM 37 314B1000 2
NUT,10MM 37 314B1000 2
PIN,SNAP 38 554A0800 2
PIN,SNAP 38 554A0800 2
TORQUE LINK,FR BRAKE 39 43007-042 1
WASHER PLAIN 10MM 40 410B1000 1
BOLT-HEX HEAD,6MM 41 92003-069 1
