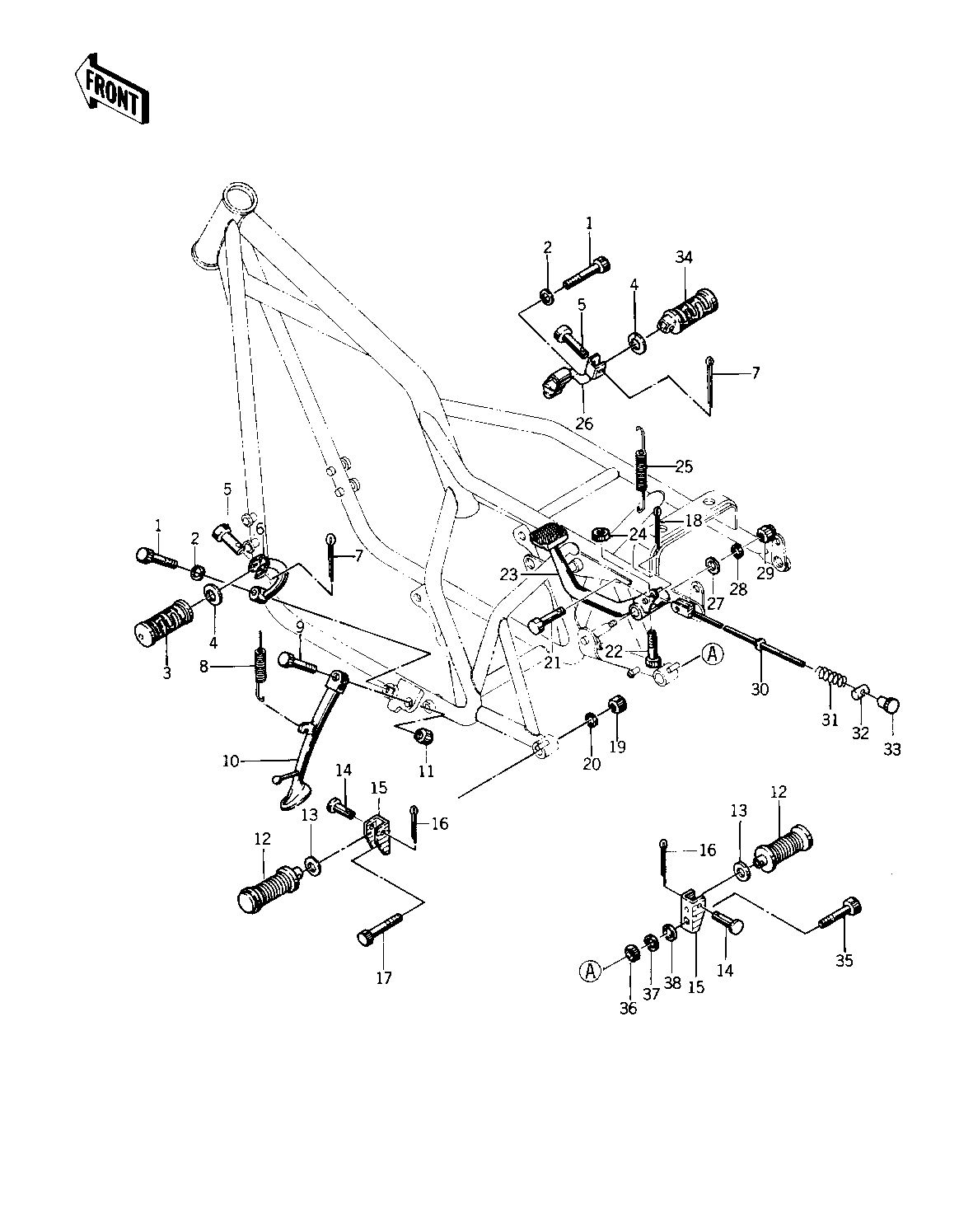

1976 Special - FOOTRESTS/STAND/BRAKE PEDAL ('76-'77 S2/

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-HEX HEAD,12X36 1 113B1236A 2
WASHER SPRING 12MM 2 461F1200 2
BOLT-HEX HEAD,12X36 3 113B1236A 2
WASHER,PLAIN 4 92022-250 2
PIN-FOOTREST BAR FIT 5 92043-080 2
BRACKET,FOOTREST,L.H 6 34003-053 1
PIN COTTER 2.5X16 7 550D2516 2
SPRING,SIDE STAND 8 34025-007 1
BOLT, SIDE STAND FIT 9 92003-157 1
STAND-SIDE 10 34024-048 1
NUT 10MM 11 315B1000 1
RUBBER,FOOTREST 12 92076-027 2
WASHER-PLAIN (OPT) 13 92022-199 2
PIN 14 92043-1464 2
BRACKET,STEP 15 32054-1021 2
PIN,COTTER,2.0X12 16 550D2012 2
BOLT-SMALL-FINE,10X45 17 113G1045 1
PIN COTTER 2.5X16 18 550D2516 1
NUT,10MM 19 314B1000 2
WASHER SPRING 10MM 20 461F1000 1
PIN,BRAKE ROD FITTING 21 92043-090 1
BOLT-UPSET 22 112G0625 1
PEDAL,BRAKE 23 43001-064 1
NUT 6MM 24 311B0600 1
SPRING,BRAKE PEDAL 25 43005-029 1
BRACKET,FOOTREST,R.H 26 34003-054 1
WASHER,8.5X20X1.6 27 92022-1561 1
WASHER SPRING 8MM 28 461F0800 1
NUT,CAP AND LOCK,8MM 29 92019-013 1
ROD,BRAKE 30 43011-026 1
SPRING,BRAKE ROD 31 43012-001 1
PIN-BRAKE ROD 32 92043-065 1
NUT-BRAKE ROD ADJUST 33 92015-042 1 KZ400-S2
NUT-BRAKE ROD ADJUST 33 92015-042 1 KZ400-S3
BAR-FOOTREST,R.H 34 34028-012 1
BOLT,HEX HEAD,10X50 35 92001-1254 1
NUT,10MM 36 314B1000 1
WASHER SPRING 10MM 37 461F1000 1
WASHER PLAIN 10MM 38 410B1000 2
