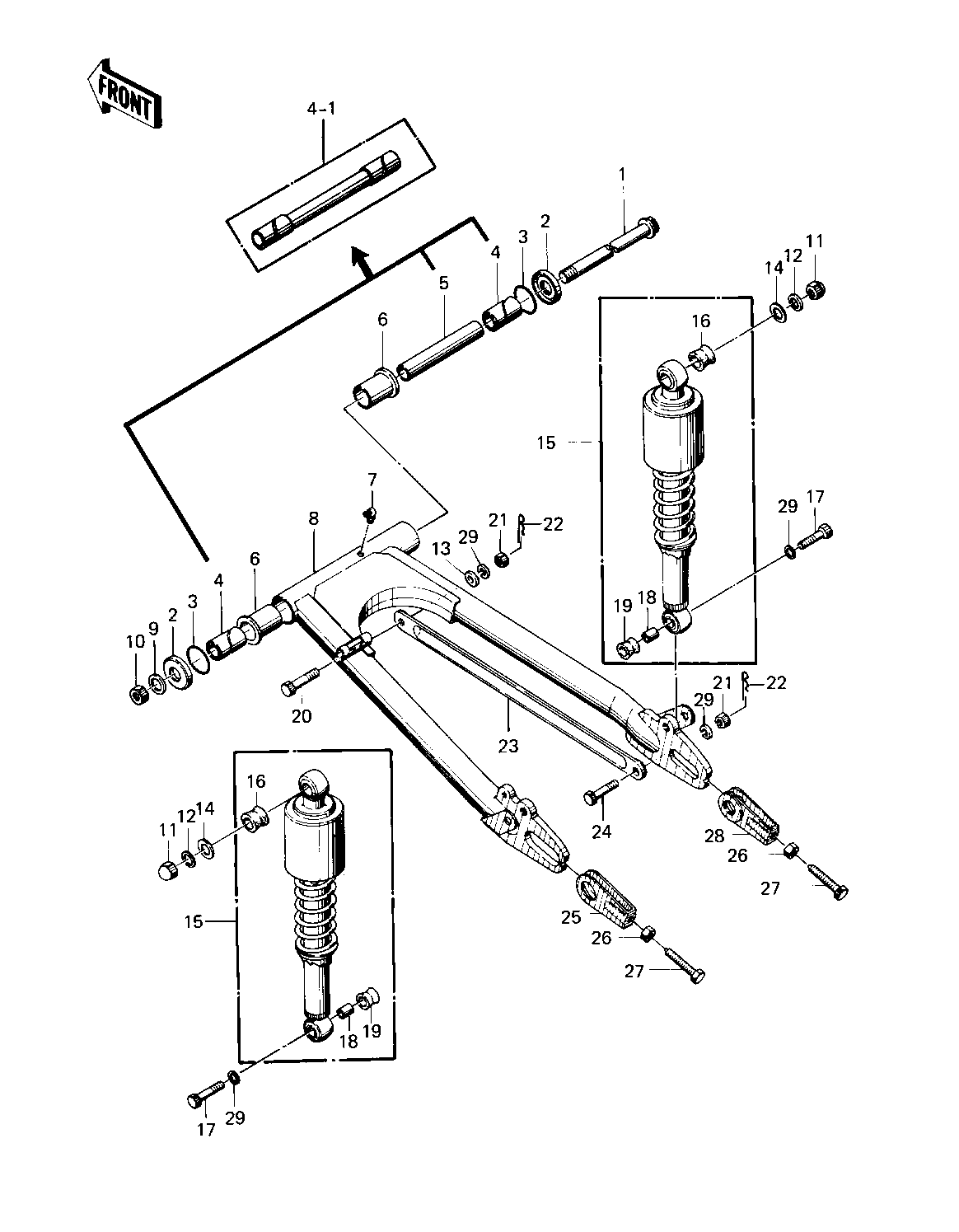

1976 Special - SWING ARM/SHOCK ABSORBERS ('76-'77 S2/S3

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,SWING ARM PIVOT 1 33032-046 1
CAP-SWING ARM 2 33035-004 2
"0" RING,30MM 3 671B2530 2
SLEEVE-SWING ARM,SHRT 4 33034-013 2 KZ400-S2
SLEEVE, SWING ARM 4-1 33034-028 2 KZ400-S3
COLLAR,SWING ARM 5 33036-006 1 AZ400-S2
BUSHING-SWING ARM 6 33033-009 2
GREASE NIPPLE 7 92005-002 1
ARM,SWING 8 33001-073 1
WASHER PLAIN 14MM 9 410B1400 1
NUT-LOCK,14MM 10 92019-011 1
NUT SHOCK ABSORBER 11 92020-003 2
WASHER SPRING 10MM 12 461F1000 2
WASHER PLAIN 10MM 13 410B1000 1
WASHER,PLAIN 14 92022-1022 2 WHN EXH USE 92022-1022
WASHER,PLAIN 14 92022-1022 2
SHOCK ABSBR RR 15 45014-115 2
BUSHING,SHCK ABS RUB 16 45017-015 2
BOLT HEX HEAD 10X35 17 113N1035 2
BUSHING,SHOCK ABSORB 18 45016-008 2
BUSHING, SHCK ABS RUB 19 45017-012 2
BOLT,HEX HEAD,10X57 20 92003-169 1 KZ400-S2
BOLT 20 92003-096 1 KZ400-S3
NUT,10MM 21 314B1000 2 KZ400-S2
NUT 10MM 21 315B1000 2 KZ400-S3
PIN,SNAP 22 554A0800 2
TORQUE LINK,FR BRAKE 23 43007-042 1 KZ400-S2
TORQUE LINK REAR BRK 23 43007-016 1 KZ400-S3
BOLT HEX HEAD 10MM 24 92003-034 1
ADJUSTER,CHAIN,L.H 25 33040-062 1 D=24.80
NUT 8MM 26 312B0800 2
BOLT,8X50 27 92001-1399 2
ADJUSTER-CHAIN 28 33040-043 1 D=17.80
WASHER SPRING 10MM 29 461F1000 4
