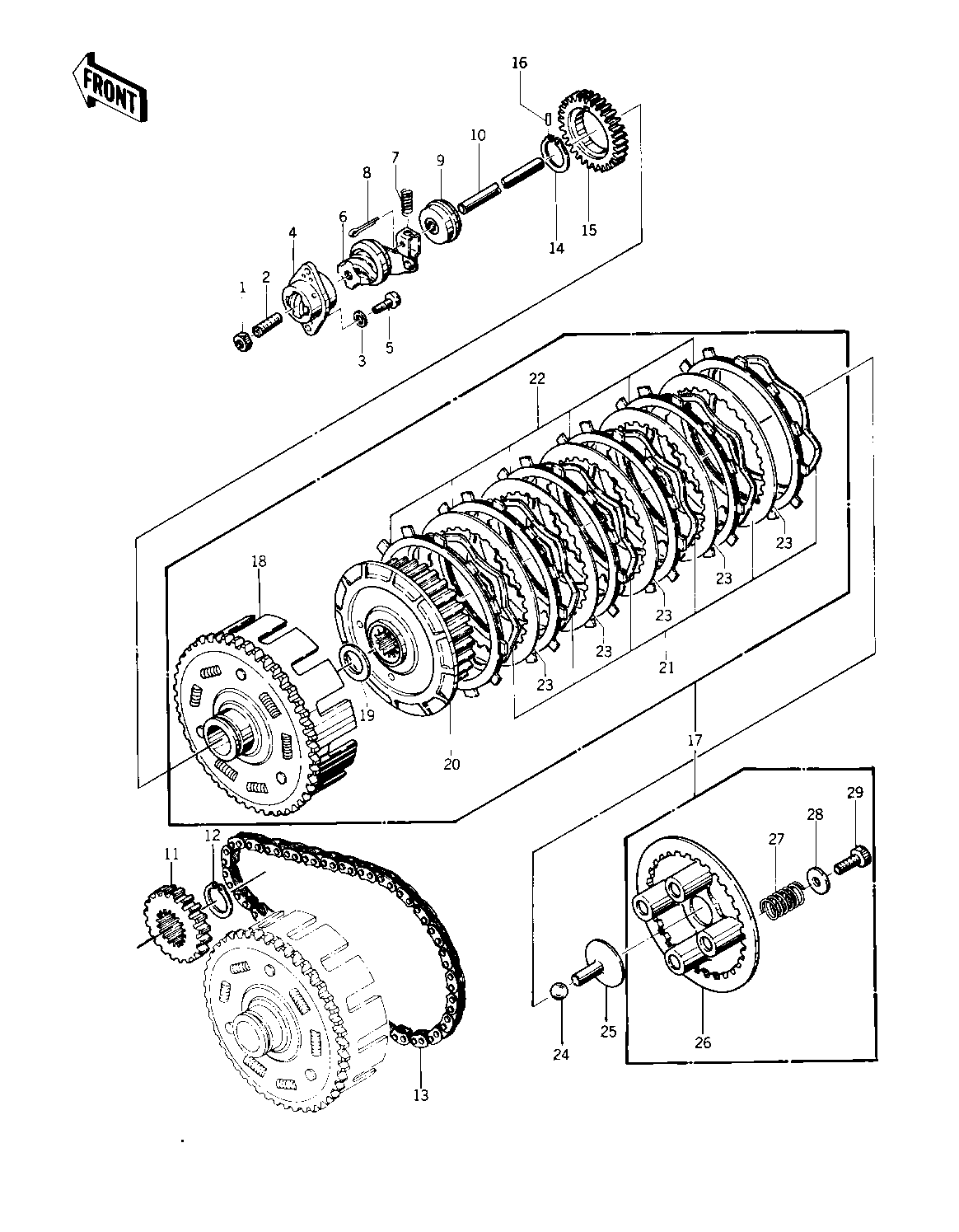

1976 Special - CLUTCH ('76-'77 S2/S3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT 8MM 1 318B0800 1
SCREW,SLOTTED,8X25 2 92014-014 1
WASHER PLAIN 6MM 3 411B0600 2
OUTER,CLUTCH RELEASE 4 13118-007 1
SCREW PAN HEAD 6X16 5 220B0616 2
INNER,CLUTCH RELEASE 6 13102-013 1
SPRING-CLUTCH RELEASE 7 92081-069 1
PIN COTTER 1.6X15 8 550D1615 1
OIL SEAL,PUSH ROD 9 92050-068 1
OIL SEAL,PUSH ROD 9 92049-1041 AL
ROD,PUSH,CLUTCH 10 13116-1017 1
ROD,PUSH,CLUTCH 10 13116-1017 1
SPROCKET,PRIMARY 11 13121-030 1
CIRCLIP,30MM 12 480J3000 1
CHAIN,PRIMARY DRIVE 13 13122-005 1
CIRCLIP, 38MM 14 480J3800 1
GEAR,OIL PUMP 15 16084-019 1 KZ400-S2
GEAR,OIL PUMP 15 16084-019 1 KZ400-S3
PIN, DOWELL, 6X6 16 610A0606 1
CLUTCH-ASSY 17 13081-074 1
HOUSING,CLUTCH 18 13095-045 1
WASHER,CLUTCH THRUST 19 92022-288 1
HUB,CLUTCH 20 13087-040 1
RING,CLUTCH STEEL 21 13229-005 6
PLATE,FRICTION 22 13088-1001 6
PLATE,FRICTION 22 13088-1001 6
PLATE,CLUTCH STEEL 23 13089-026 5
BALL STEEL 3/8' 24 600A1200 1
PUSHER,CLTCH SPRG PLT 25 13116-029 1
PLATE,CLUTCH SPRING 26 13187-007 1
SPRING,CLUTCH 27 92081-1033 4
SPRING,CLUTCH 27 92081-1033 4
HOLDER,CLUTCH SPRING 28 13091-011 4
BOLT-UPSET 29 112G0618 4
