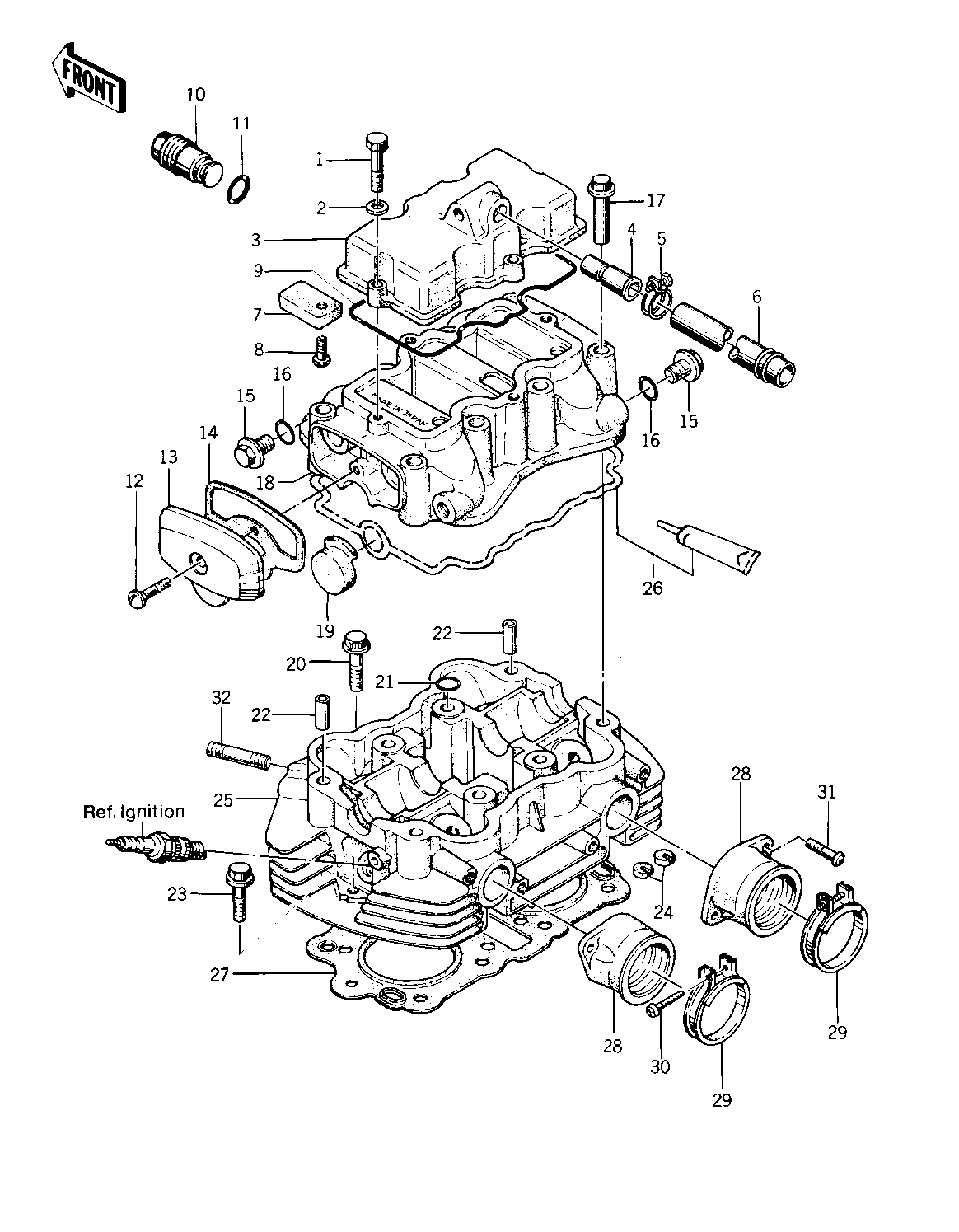

1976 Special - CYLINDER HEAD/COVERS ('76-'77 S2/S3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT HEX HEAD 8X28 1 114G0828 4
WASHER PLAIN 8MM 2 410B0800 4
COVER,BREATHER 3 14070-005 1
BREATHER JOINT 4 14067-006 1
BREATHER JOINT 4 14067-006 1
CLAMP,BREATHER HOSE 5 92037-123 2
CLAMP,BREATHER HOSE 5 92037-192 2
HOSE,BREATHER 6 92059-125 1
PLATE,BREATHER 7 14068-006 1
"O" RING,BRETHER COV 9 92055-064 1
PLUG,TACHOMETER GEAR 10 92066-060 1
RING-O,10MM 11 92055-1149 1
SCREW OVL CNTSK 6X25 12 222E0625 2
CAP,CYL HEAD COVER 13 11027-003 2
GASKET,CYL HEAD COVER 14 11023-007 2
PLUG 15 92066-066 4
RING-O 16 92055-1146 4
NUT,CYLINDER HEAD 17 92015-071 8
UNAVAILABLE IN PRICE BOOK 18 11022-010-2H 1 KZ400-S2
COVER,CYLINDER HEAD 18 11022-013-2H 1 KZ400-S3
COVER,CYLINDER HEAD 18 11022-013-2H 1 BARREL FINISH
CAP,CLY HEAD COVER 19 92073-035 2
BOLT, HEX HEAD, 6X34 20 92003-159 2
"O" RING,HD COV BOLT 21 92055-067 4
PIN,DOWEL,12MM 22 92042-031 2
BOLT, HEX HEAD, 8X34 23 92003-153 2
DAMPER RUBBER,CYL HD 24 92075-255 8
CYLINDER HEAD,BARREL 25 11002-018-2H 1 BARREL FINISH
CLEAR SILICONE 26 K61079-007 AR FOR CYLINDER HEAD COVER
GASKET,CYLINDER HEAD 27 11004-1003 1
DUCT,ENGINE INTAKE 28 16065-037 2 KZ400-S2
DUCT,ENGINE INTAKE 28 16065-048 2 KZ400-S3
CLAMP,57MM,BLACK 29 92037-1452 2 KZ400-S2
CLAMP,CARBURETOR 29 92037-1021 2 KZ400-S3
SCREW-PAN-CROS 30 220B0535 2 KZ400-S2
SCREW-PAN-CROS,5X25 30 220B0525 2 KZ400-S3
SCREW PAN HEAD 6X18 31 220B0618 4
STUD,6X46 32 92004-049 4
