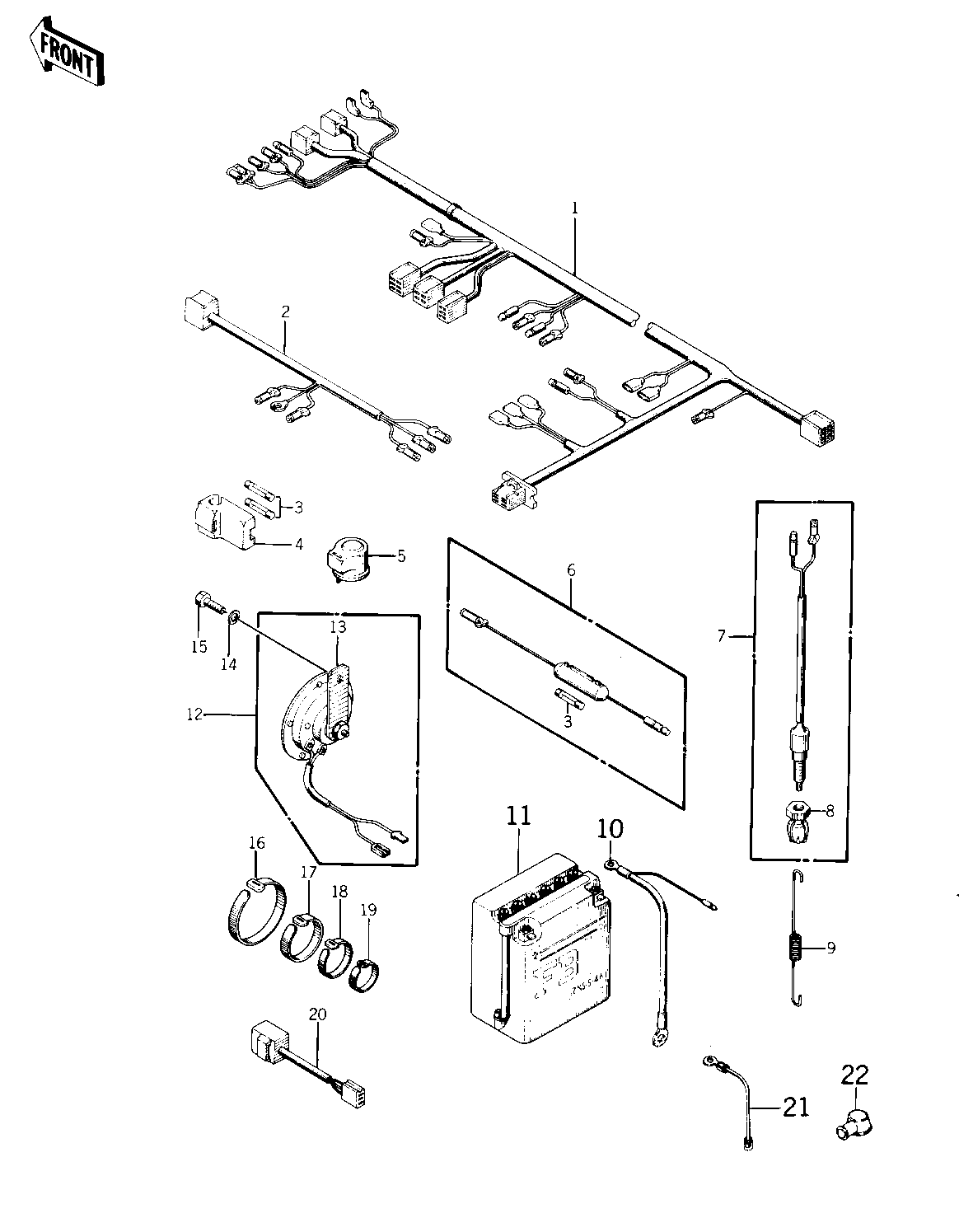

1975 Special - CHASSIS ELECTRICAL EQUIPMENT ('75 S)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WIRING HARNESS MAIN | 1 | 26001-119 | 1 | ||
| WIRING HARNESS REAR | 2 | 26002-049 | 1 | ||
| FUSE-20A | 3 | 26006-005 | 3 | ||
| HOLDER,SPARE FUSE | 4 | 26016-002 | 1 | ||
| RELAY-TURN SIGNAL | 5 | 27002-011 | 1 | ||
| FUSE ASSY 20A | 6 | 26004-024 | 1 | ||
| SWITCH,BRAKE LIGHT | 7 | 27010-025 | 1 | ||
| NUT,BRAKE LAMP SWITCH | 8 | 27037-001 | 1 | ||
| SPRING,BRAKE LIGHT SW | 9 | 27011-015 | 1 | ||
| WIRE-BATTERY GROUND | 10 | 26010-039 | 1 | ||
| FB BAT 12N5.5-4A | 11 | 26012-022 | 1 | ||
| YUA BAT 12N5.5-4A | 11 | K26012-022 | 1 | ||
| HORN | 12 | 27003-053 | 1 | ||
| BRACKET,HORN | 13 | 27038-002 | 4 | ||
| WASHER SPRING 8MM | 14 | 461F0800 | 1 | ||
| BOLT-SMALL-UPSET,8X14 | 15 | 115B0814 | 1 | ||
| BAND,LONG | 16 | 92072-032 | 5 | ||
| BAND,MIDDLE | 17 | 92072-031 | 5 | ||
| BAND,SHORT | 18 | 92072-030 | 10 | ||
| BAND,BREATHER WIRE | 19 | 92072-067 | 3 | ||
| SWITCH,BK LIGHT IND | 20 | 28019-002 | 1 | ||
| WIRE-BATTERY LEAD | 21 | 26010-038 | 1 | ||
| CAP BAT TERMINAL RUBB | 22 | 92073-001 | 1 |
