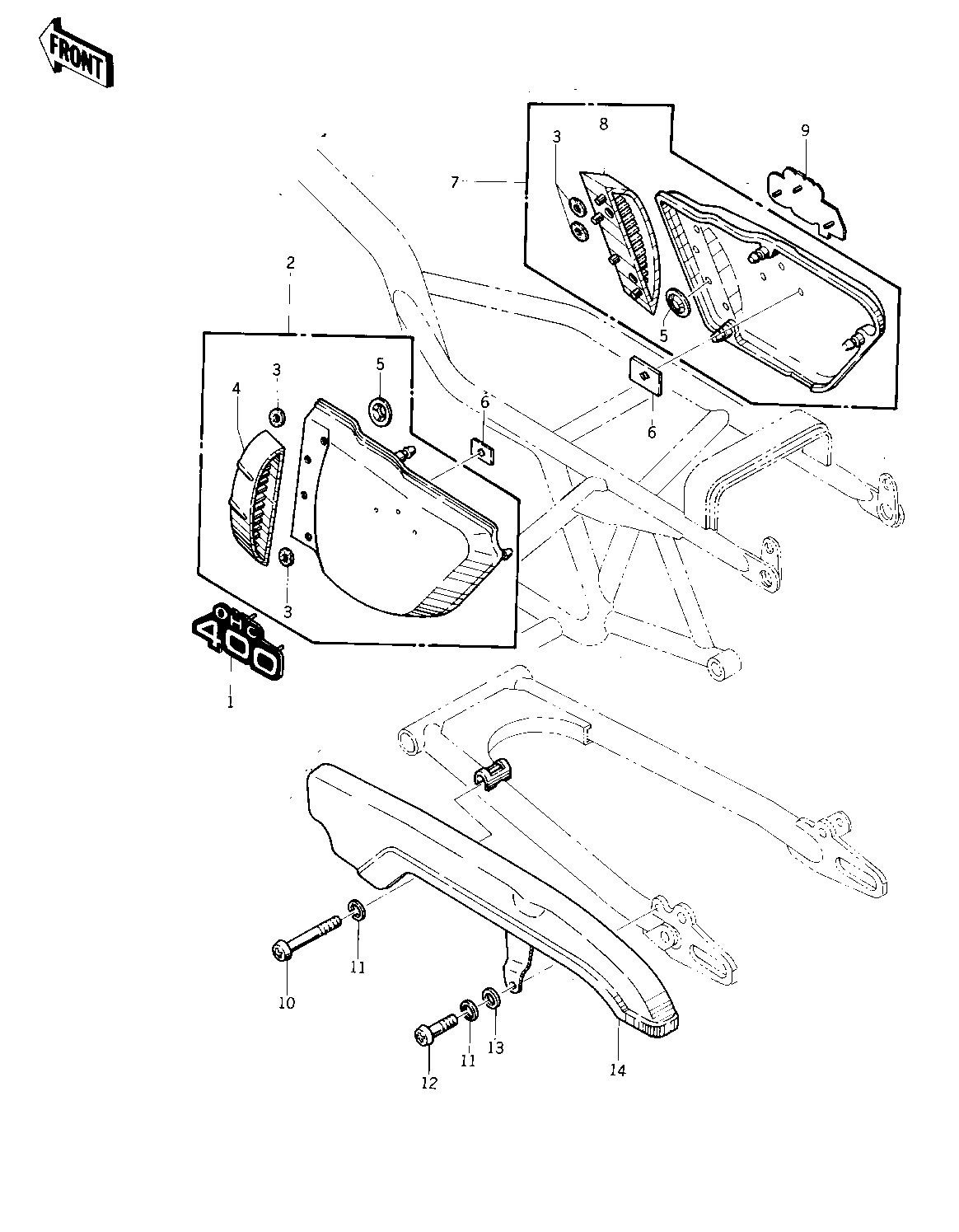

1975 Special - SIDE COVERS/CHAIN COVER ('75 S)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,SIDE COVER,R.H | 1 | 56018-177 | 1 | ||
| COVER,L.H SIDE,H.RED | 2 | 36001-048-2K | 1 | ||
| WASHER,RUBBER | 3 | 92094-013 | 8 | ||
| TRIMING,L.H SIDE COV | 4 | 36029-001 | 1 | ||
| NUT,LOCK,5MM | 5 | 92018-004 | 8 | ||
| NUT,LOCK,3MM | 6 | 92018-005 | 6 | ||
| COVER,RH SIDE,H.RED | 7 | 36007-042-2K | 1 | ||
| TRIMING,R.H SIDE COV | 8 | 36029-002 | 1 | ||
| EMBLEM,SIDE COVER,R.H | 9 | 56018-177 | 1 | ||
| SCREW PAN HEAD 6X60 | 10 | 220E0660 | 1 | ||
| WASHER SPRING 6MM | 11 | 461F0600 | 2 | ||
| SCREW PAN HEAD 6X12 | 12 | 220E0612 | 1 | ||
| WASHER-PLAIN,6MM | 13 | 411D0600 | 1 | ||
| CASE-CHAIN,BLACK | 14 | 36014-063-10 | 1 | BLACK |
