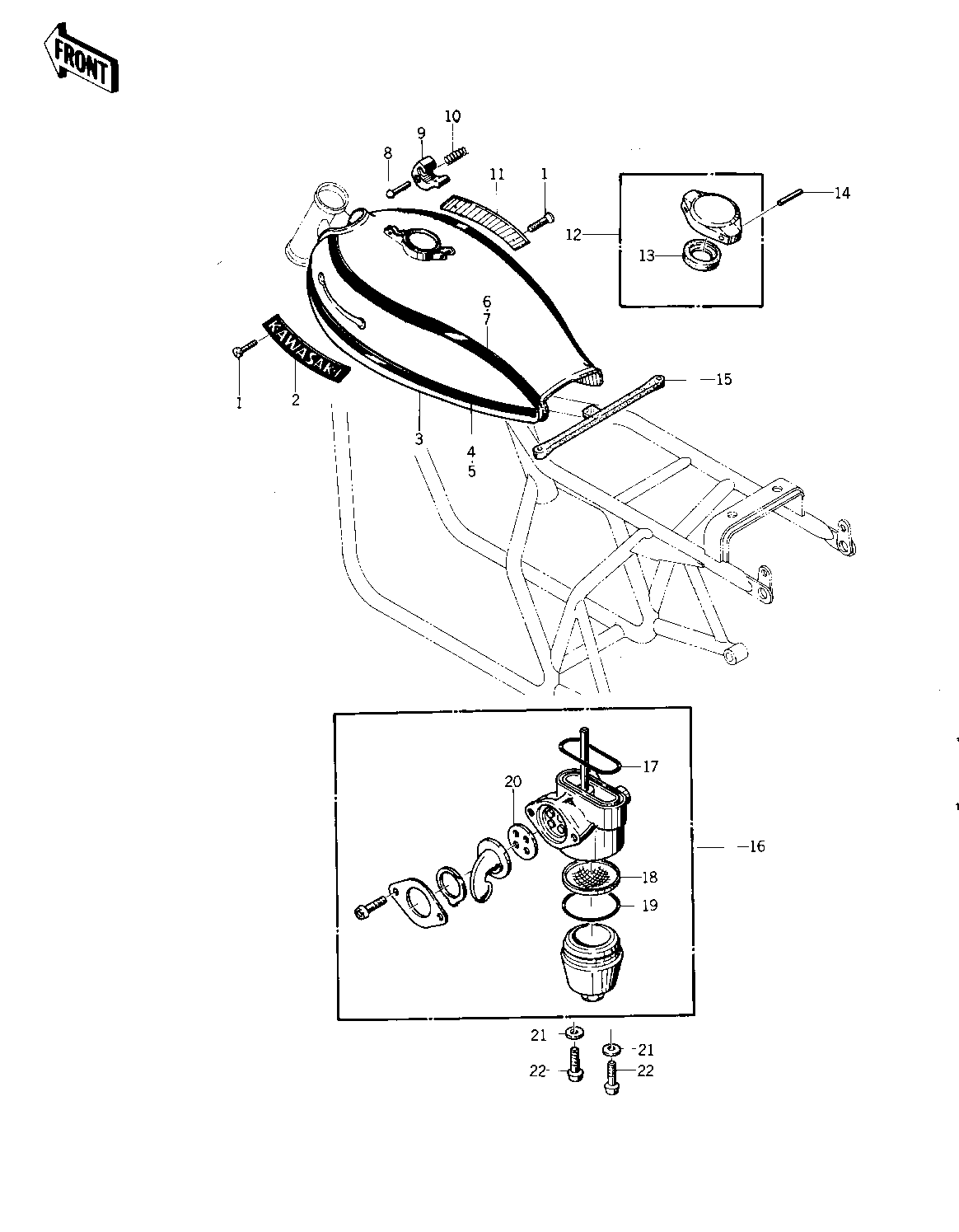

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-CSK-CROS | 1 | 221C0306 | 4 | ||
| EMBLEM,FUEL TANK,L.H | 2 | 56014-1013 | 1 | ||
| TANK-FUEL,H.RED | 3 | 51001-100-2K | 1 | ||
| DECAL,FL TK STR,L.H | 4 | 56027-220-SP | 1 | * | |
| DECAL,FL TK STR,L.H | 4 | 56027-220-SP | 1 | * | |
| DECAL,FL TK STR,R.H | 5 | 56027-219-SP | 1 | * | |
| DECAL,FL TK STR,R.H | 5 | 56027-219-SP | 1 | * | |
| DECAL,FL TK STR,R.H | 6 | 56027-218-SP | 1 | * | |
| DECAL,FL TK STR,R.H | 6 | 56027-218-SP | 1 | * | |
| DECAL,FL TK STR,L.H | 7 | 56027-217-SP | 1 | * | |
| DECAL,FL TK STR,L.H | 7 | 56027-217-SP | 1 | ||
| PIN,TANK CAP | 8 | 92043-091 | 1 | ||
| HOOK,FUEL TANK CAP | 9 | 51063-002 | 1 | ||
| SPRING-HOOK | 10 | 51053-003 | 1 | ||
| EMBLEM,FUEL TANK,R.H | 11 | 56014-1014 | 1 | ||
| CAP ASSY,FUEL TANK | 12 | 51048-007 | 1 | ||
| GASKET-FUEL TANK CAP | 13 | 51059-008 | 1 | ||
| PIN,TANK CAP FIT | 14 | 92043-096 | 1 | ||
| BAND,FUEL TANK | 15 | 92072-042 | 1 | ||
| COCK ASSY,FUEL | 16 | 51023-051 | 1 | ||
| "O" RING,FL COCK JONT | 17 | 51039-004 | 1 | ||
| STRAINER, FUEL | 18 | 51038-009 | 1 | ||
| "O" RING, FL COCK CUP | 19 | 51039-005 | 1 | ||
| GASKET,FUEL COCK CUP | 20 | 92065-095 | 1 | ||
| GASKET,FUEL COCK | 21 | 92065-096 | 2 | ||
| SCREW PAN HEAD 6X35 | 22 | 220B0635 | 1 |
