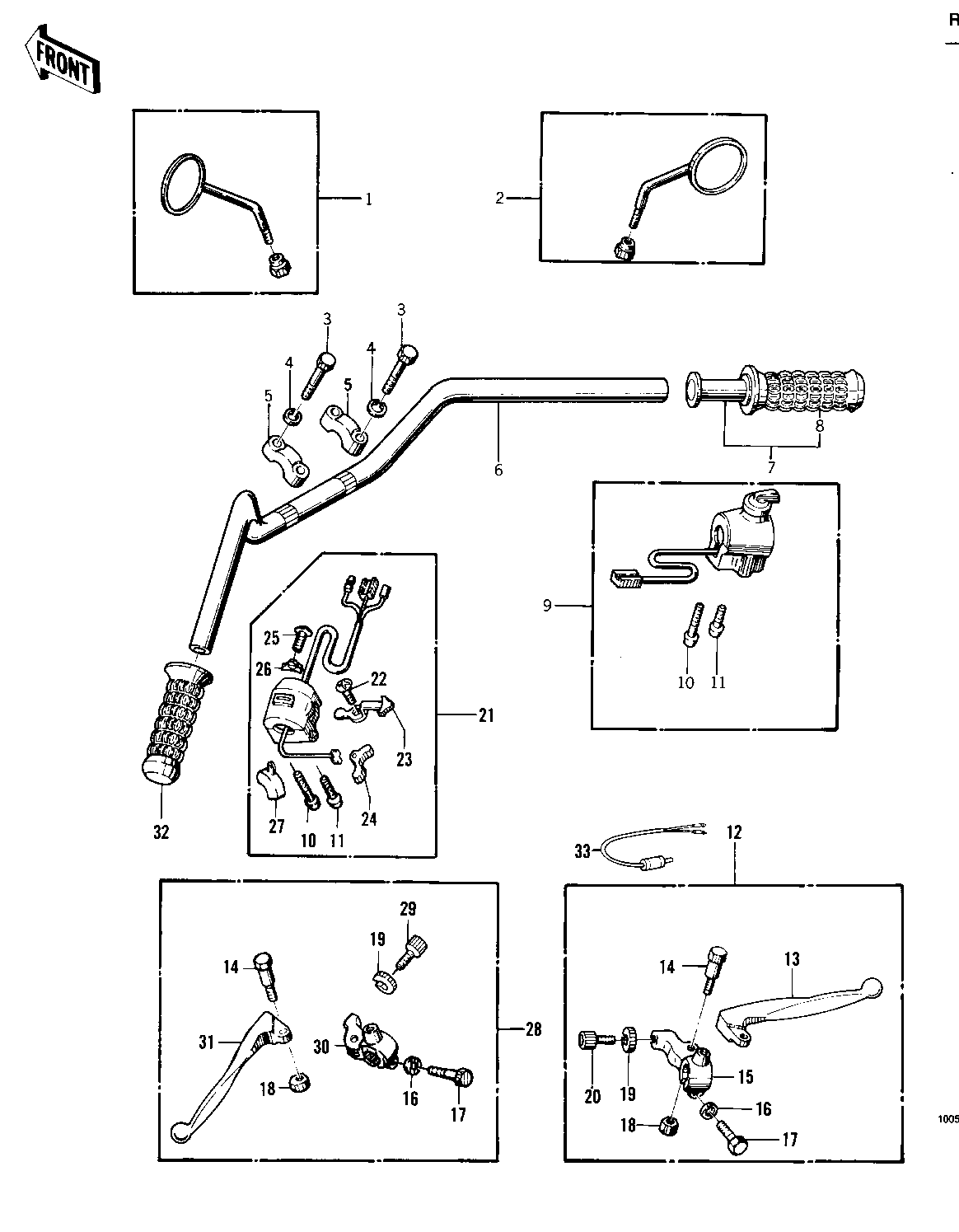

1975 Special - HANDLEBAR ('75 S)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REAR VIEW MIRROR,L.H 1 56003-009 1
REAR VIEW MIRROR,R.H 2 56002-020 1
BOLT 8X38 3 92001-1405 4
WASHER SPRING 8MM 4 461F0800 4
HOLDER-HANDLEBAR 5 46012-008 2
HANDLEBAR 6 46003-034 1
GRIP ASSY,THROTTLE 7 46019-025 1
RUBBER-R.H GRIP 8 46061-012 1
CASE ASSY-R.H 9 46132-020 1 W/O BUTTON
CASE ASSY R.H 9 46132-014 AL FROM KZ400D
SCREW-PAN-CROS 10 220B0535 2
SCREW PAN HEAD 5X30 11 220B0530 2
LEVER ASSY,FRNT BRAKE 12 46021-031 1
LEVER FRONT BRAKE 13 46058-004 1
BOLT,HEX HEAD,5X22 14 92007-046 2
HOLDER-FR BRK LEV,BLK 15 46060-009-21 1
WASHER PLAIN 6MM 16 410B0600 2
BOLT HEX HEAD 6X25 17 110N0625 2
NUT-LOCK,5MM 18 92019-014 2
NUT-LOCK 19 46056-005 2
SCREW CABLE ADJUST 20 46055-003 1
HOUSING ASSY,CONT,L.H 21 46091-1079 1
SCREW CNTSNK HD 3X8 22 221B0308A 1
KNOB,LIGHTING SW L.H 23 46043-005 1
BUTTON, HORN PUSH 24 46028-006 1
L.H GRIP SWITCH KIT 25-27 99990-530 1
.SCREW PAN HEAD 3X5 25 220B0305A 1
.KNOB,LIGHTING SW L.H 26 46044-013 1
.SWITCH,L.H 27 46089-014 1
LEVER ASSY,CLUTCH 28 46076-044 1
SCREW ADJUST 29 46055-006 1
HOLDER-CLUTCH LEV,BLK 30 46094-011-21 1
LEVER-CLUTCH 31 46092-015 1
RUBBER-L.H GRIP 32 46075-017 1
SWITCH-FR. BRAKE LAMP 33 27021-004 1
