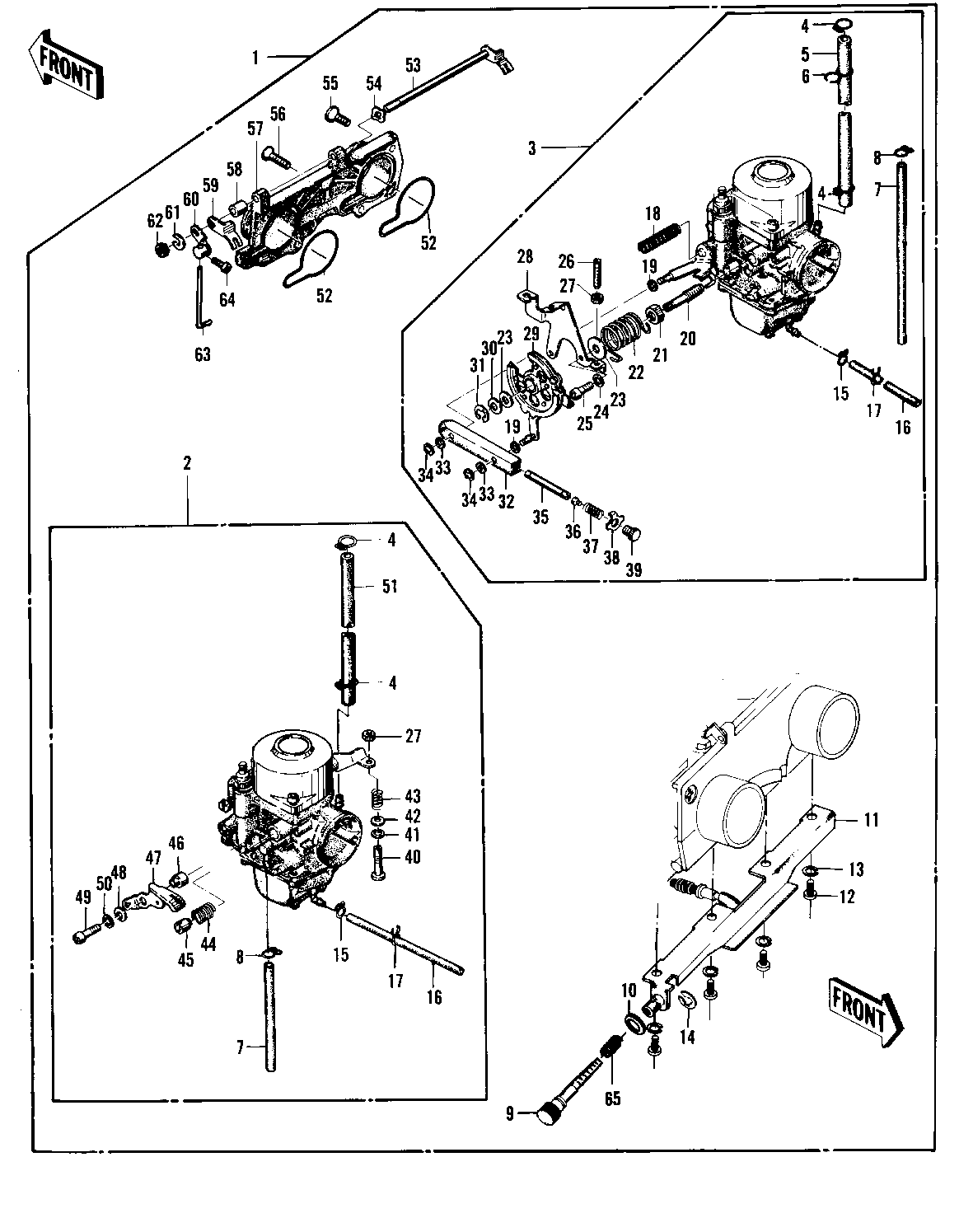

1975 Special - CARBURETOR ASSY ('75 S)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1 16001-246 1
CARBURETOR,R.H 2 16001-247 1
CARBURETOR,L.H 3 16001-248 1
CLAMP,FUEL HOSE 4 92037-1040 4
HOSE,FUEL 5 92059-112 1 5.3 X 240 MM
CLAMP,FUEL HOSE 6 16044-005 1
HOSE 7 92059-110 2
CLAMP,HOSE 8 16044-004 2
SCREW,THROTTLE STOP 9 16021-024 1
WASHER,PLAIN,7MM 10 16039-029 2 FOR 16055-008
PLATE,THR STOP SCREW 11 16055-008 1 UP THRU F/NOS. 004539 (JPN)
STAY PLATE 11-1 16065-044 1 AFTER F/NOS. 004539 (JPN) & 56
SCREW-PAN-CRSOSS,4X12 12 220B0412 1 FOR 16055-008
SCREW PAN HEAD 4X16 12-1 220B0416 4 FOR 16065-044
WASHER SPRING 4MM 13 461F0400 1 FOR 16055-008
CIRCLIP 6MM 14 482J6000 1
CLAMP,TUBE,OVERFLOW 15 92037-1142 2
HOSE,FUEL OVERFLOW 16 92059-111 2 3.5 X 360 MM
CLAMP,OVERFLOW HOSE 17 16044-002 2
SPRING,THR CABLE PLY 18 16040-013 1
WASHER,WAVE 19 16034-009 2
SCREW,BALANCE ADJUST 20 16041-008 1
NUT,5MM 21 16003-010 1
SPRING,ADJUST 22 16040-011 1
WASHER,PLAIN 23 16039-023 2
WASHER SPRING 5MM 24 461F0500 2
SCREW PAN HEAD 5X10 25 220B0510 2
SCREW,SLOTTED 26 16046-006 1
NUT,5MM 27 16003-011 2
HOLDER,THR CABL PULY 28 16070-002 1
PULLEY,THROTTLE CABL 29 16074-003 1
WASHER,PLAIN,8MM 30 16039-024 1
CIRCLIP 6MM 31 482J6000 1
LINK,ADJUSTER 32 16071-002 1
WASHER,PLAIN,3MM 33 16039-030 2
CIRCLIP 34 16008-013 2
ROD CABLE ADJUSTING 35 16002-015 1
PLUG,CABLE ADJST ROD 36 16042-007 1
SPRING,CABLE ADJUST 37 16040-012 1
WASHER,LOCK,7MM 38 16054-006 1
BOLT,HEX HEAD,7MM 39 16067-007 1
SCREW,THROTTLE STOP 40 16021-025 1
WASHER,PLAIN,5MM 41 16039-025 1
WASHER,PLAIN,5MM 42 16039-026 1
SPRING,THR STOP SCREW 43 16022-012 1
SPRING,CHOKE LEVER 44 16040-014 1
CONTACT,CHOKE LEVER 45 16147-002 1
COLLAR,CHOKE LEVER 46 16073-010 1
LEVER,CHOKE 47 16063-006 1
WASHER,PLAIN 48 16039-027 1
SCREW PAN HEAD 5X20 49 220B0520 1
WASHER SPRING 5MM 50 461F0500 1
HOSE,FUEL 51 92059-113 1 5.3 X 150 MM
"O" RING,CARB MOUNT 52 16038-015 2
SHAFT,THROTTLE VALVE 53 16041-009 1
WASHER,WAVE 54 16034-010 2
SCREW PAN HEAD 6X16 55 220B0616 2
SCREW PAN HEAD 6X20 56 220B0620 2
PLATE,CARB MOUNTING 57 16070-003 1
COLLAR,CHOKE LEV SHFT 58 16073-011 1
LEVER,THROTTLE VALVE 59 16063-007 1
LEVER,THROTTLE VALVE 60 16063-008 1
WASHER,LOCK,6MM 61 16054-007 1
NUT,6MM 62 16003-012 1
ROD 63 16024-013 1
SCREW PAN HEAD 3X5 64 220B0305A 1
SPRING,THR STOP SCREW 65 16022-011 1
