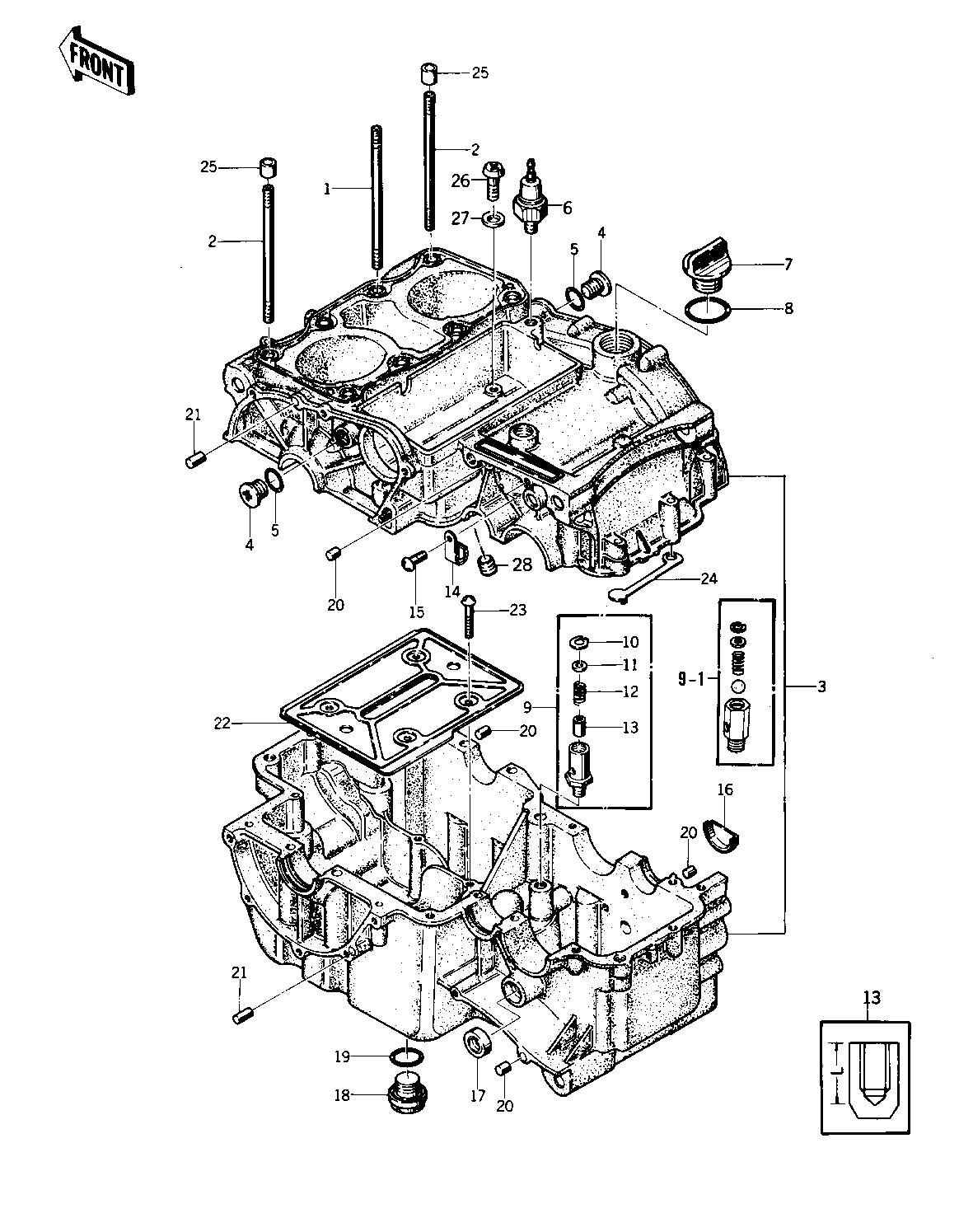

1975 Special - CRANKCASE ('75 S)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
.STUD,8X201 1 92004-052 6
.STUD,8X210 2 92004-053 2
CRANKCASE SET 3 14001-102 1
CRANKCASE SET 3 14001-102 1 INCL PARTS MARKED
.PLUG 4 92066-067 2
PLUG 4 92066-067 2
."O" RING,13.5MM 5 92055-073 2
SWITCH,OIL PRESSURE 6 27010-1157 1
PLUG,OIL FILLER 7 16115-013 1
"0" RING,31MM 8 92055-049 1
RELEAF VALVE ASSY 9 16130-1001 1 - E/NO. 027555
RELEAF VALVE ASSY 9-1 16130-1001 1 E/NO. 027556 -
SPACER,RELEAF VALVE 11 92026-097 1 USE 16130-1001
SPRING,RELEAF VALVE 12 16133-003 1 USE 16130-1001
PISTON,RELEAF VALVE 13 16126-002 1 USE 16130-1001
CLAMP,WIRING HARNESS 14 21126-008 1
CLAMP,WIRING HARNESS 14 21126-008 AL
SCREW PAN HEAD 6X12 15 220B0612 1
RECEIVER,OIL 16 14015-005 1
OIL SEAL,TB13225.5 17 92051-005 1 FOR 14001-071
.PLUG,OIL DRAIN 18 92001-1183 1 FOR 14001-071
PLUG,OIL DRAIN,12X15 18 92066-1174 1 FOR 14001-102
"O" RING,22MM 19 670B2022 1 FOR 14001-071
.GASKET,DRIN PLUG 19 92065-097 1 FOR 14001-102
.PIN-DOWEL 20 92042-007 12
.PIN,DOWEL,6X12 21 551A0612 2
PLATE 22 14082-001 1
.SCREW PAN HEAD 6X12 23 220B0612 4
CLAMP,OVERFLOW HOSE 24 92037-149 2
.PIN,DOWEL,10X8.2X14 25 92043-1037 2
SCREW PAN HEAD 6X12 26 220B0612 1
WASHER,PLAIN 27 92022-304 1
.NOZZLE,OIL BIAS 28 92062-011 1
