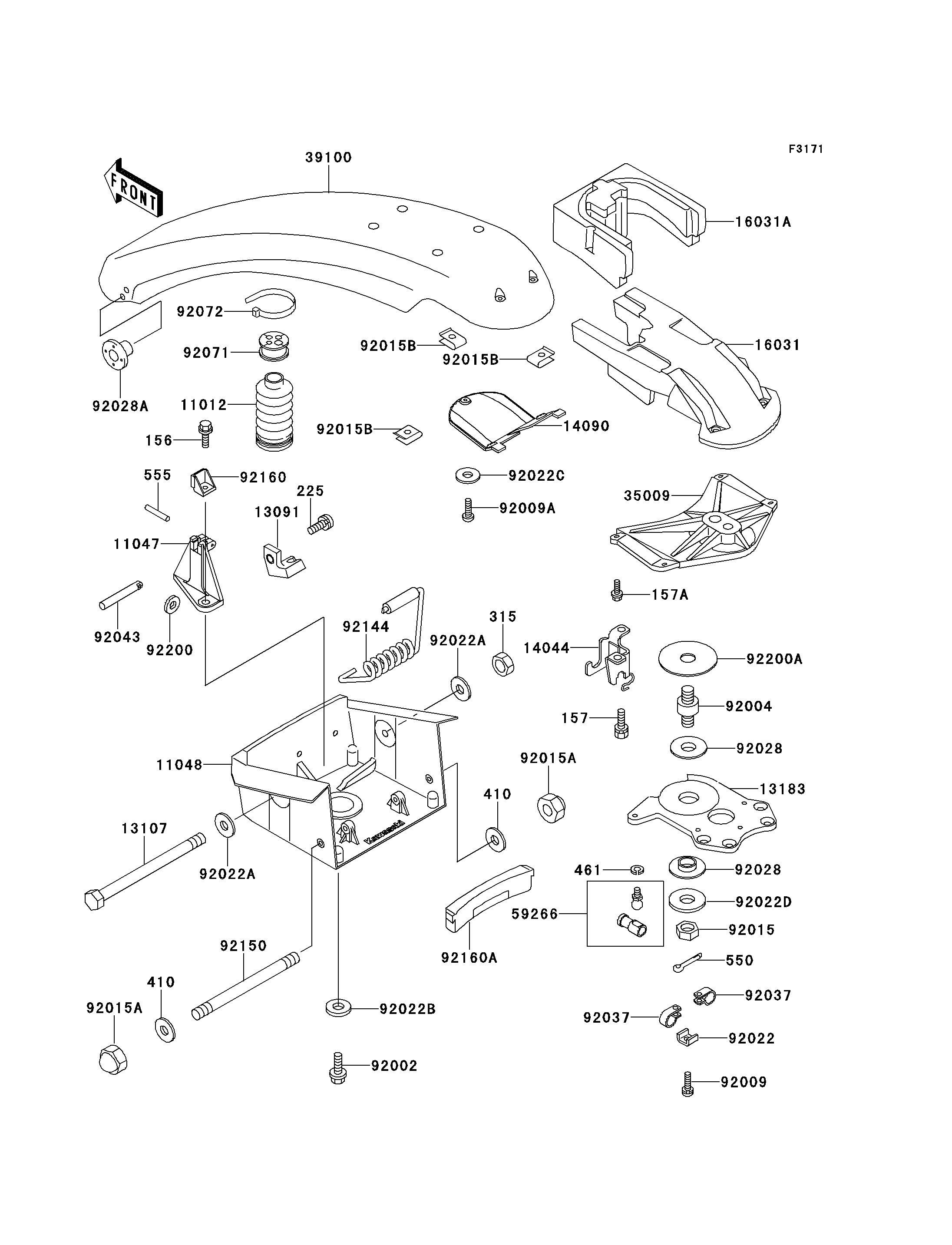

1995 750 SXi - Handle Pole(JS750-B1)

DOWNLOAD PDF
SELECT A NEW PART
156
156
157
157
157A
157A
11012
11012
11047
11047
11048
11048
13091
13091
13107
13107
13183
13183
14044
14044
14090
14090
16031
16031
16031A
16031A
35009
35009
39100
39100
59266
59266
92002
92002
92004
92004
92009
92009
92009A
92009A
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92015B
92015B
92015B
92015B
92022
92022
92022A
92022A
92022A
92022A
92022B
92022B
92022C
92022C
92022D
92022D
92028
92028
92028
92028
92028A
92028A
92037
92037
92037
92037
92043
92043
92071
92071
92072
92072
92144
92144
92150
92150
92160
92160
92160A
92160A
92200
92200
92200A
92200A
225
225
315
315
410
410
410
410
461
461
550
550
555
555
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WP,6X16 156 156R0616 3
BOLT-WSP,6X16 157 157R0616 2
BOLT-WSP,6X20 157A 157R0620 4
CAP 11012 11012-3754 1
BRACKET 11047 11047-3800 1
BRACKET,PIVOT SHAFT,J.WHITE 11048 11048-3785-8C 1
HOLDER 13091 13091-3774 1
SHAFT,PIVOT 13107 13107-3725 1
PLATE,HANDLEBER 13183 13183-3793 1
HOLDER-CABLE 14044 14044-3716 1
COVER,HANDLE POLE,N.ROSE 14090 14090-3708-5B 1
FLOAT,HANDLE POLE 16031 16031-3801 1
FLOAT,HANDLE POLE 16031A 16031-3809 1
BRACE 35009 35009-3707 1
POLE-COMP-HANDLE,N.ROSE 39100 39100-3713-5B 1
JOINT-BALL 59266 59266-3707 1
BOLT,8X25 92002 92002-3774 4
STUD 92004 92004-3728 1
SCREW,5X16 92009 92009-3736 1
SCREW,5X16 92009A 92009-3797 3
NUT,CASTLE,18MM 92015 92015-3006 1
NUT,CAP,6MM 92015A 92015-3755 2
NUT,CLIP,5MM 92015B 92015-3830 3
WASHER,CLAMP 92022 92022-3014 1
WASHER,15X34X2.0 92022A 92022-3738 2
WASHER,8.5X34X3 92022B 92022-3746 4
WASHER 92022C 92022-567 3
WASHER 92022D 92022-571 1
BUSHING 92028 92028-3743 2
BUSHING,STEERING 92028A 92028-3752 2
CLAMP,LEAD WIRE 92037 92037-3007 2
PIN 92043 92043-3739 1
GROMMET 92071 92071-3788 1
BAND 92072 92072-3778 1
SPRING 92144 92144-3735 1
BOLT,6X119 92150 92150-3787 1
DAMPER 92160 92160-3790 2
DAMPER 92160A 92160-3846 1
WASHER,3.5X12X1 92200 92200-3723 1
WASHER,20.5X80X3 92200A 92200-3725 1
SCREW-PAN-WSP-CROS,5X16 225 225R0516 1
NUT-HEX-FINE,14MM 315 315R1400 1
WASHER-PLAIN-SMALL,6MM 410 410S0600 2
WASHER-SPRING,6MM 461 461S0600 1
PIN-COTTER,4X40 550 550S4040 1
PIN-SPRING,3X25 555 555B0325 1
