Parts Diagrams |

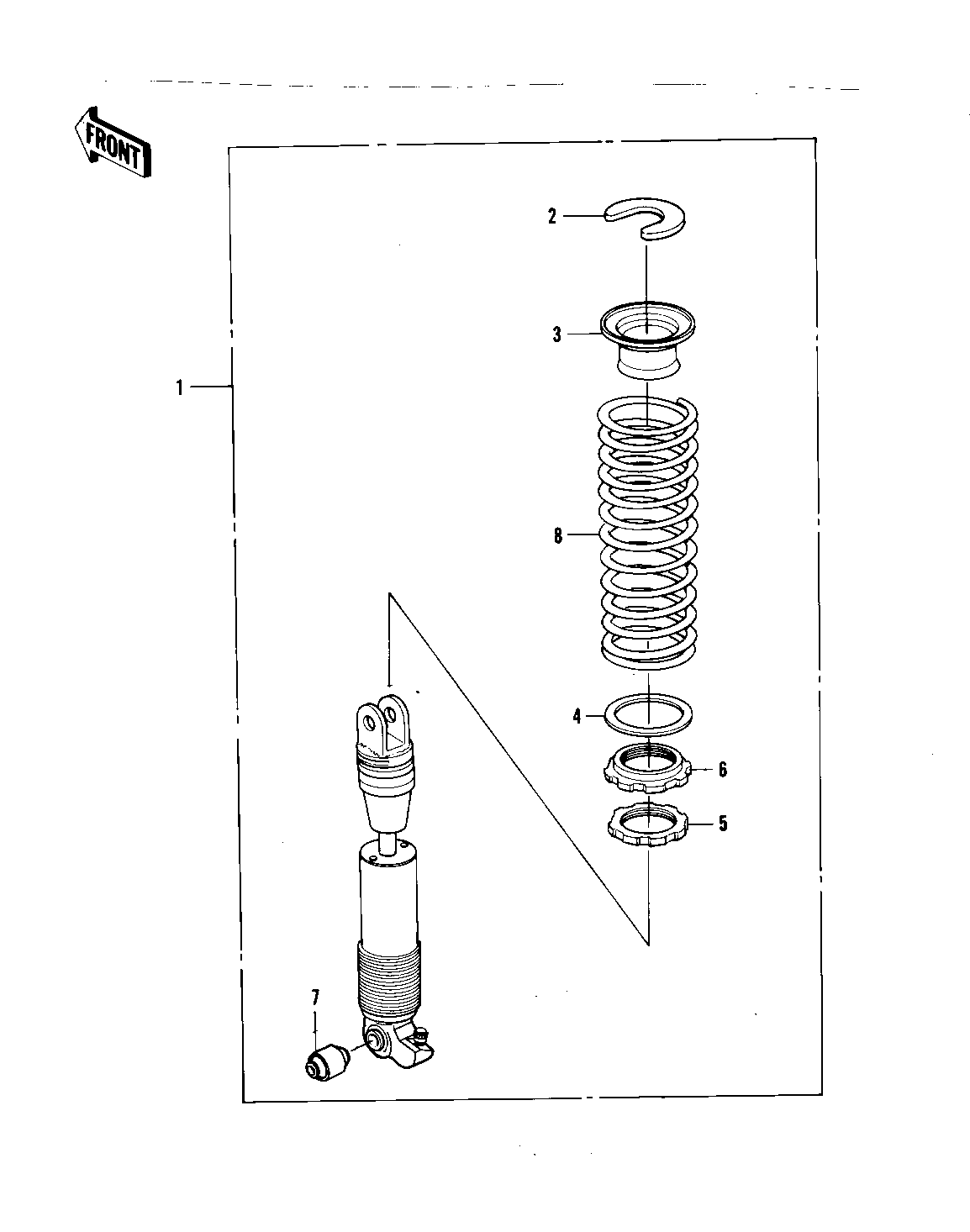

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHOCK ABSBR RR | 1 | 45014-4008 | 1 | ||
| GUIDE,SPRING | 2 | 13070-1041 | 1 | ||
| SPRING GUIDE,SHK ABS | 3 | 13070-4003 | 1 | ||
| WASHER,SPRING | 4 | 92022-1235 | 1 | ||
| NUT,SPRING ADJUST | 5 | 92015-1139 | 1 | ||
| NUT,SPRING ADJUST | 6 | 92015-1140 | 1 | ||
| BUSHING-RUBBER,SHOCKA | 7 | 92092-1008 | 1 | ||
| SPRING,RR SHOCK,STD | 8 | 92081-1372 | 1 | ||
| SPRING | 8 | 92081-1320 | (1 | I.D.=YELLOW/WHITE | |
| SPRING | 8 | 92081-1322 | (1 | I.D.=YELLOW/BLUE |
| SHOCK ABSBR RR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,SPRING | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING GUIDE,SHK ABS | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,SPRING | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,SPRING ADJUST | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,SPRING ADJUST | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER,SHOCKA | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,RR SHOCK,STD | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | I.D.=YELLOW/WHITE |
| SPRING | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | I.D.=YELLOW/BLUE |
