Parts Diagrams |

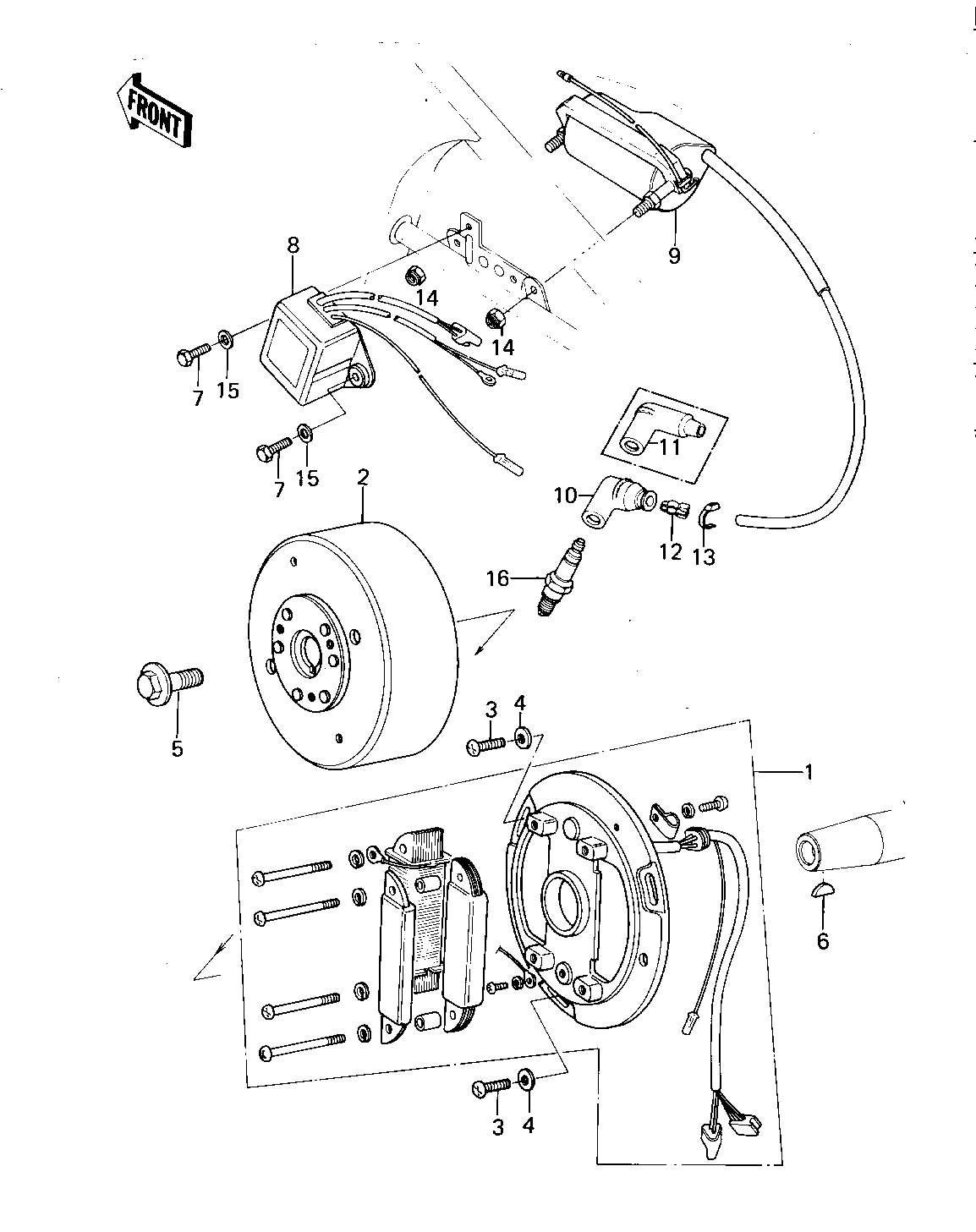

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STATOR ASSY | 1 | 21003-1032 | 1 | ||
| FLYWHEEL,MAGNETO | 2 | 21007-1012 | 1 | ||
| SCREW PAN HEAD 5X20 | 3 | 220B0520 | 3 | ||
| WASHER PLAIN 5MM | 4 | 411B0500 | 3 | ||
| BOLT,10X40 | 5 | 92001-1201 | 1 | ||
| WOODRUFF KEY | 6 | 92038-001 | 1 | ||
| BOLT-UPSET | 7 | 112G0618 | 2 | ||
| IGNITER | 8 | 21119-1009 | 1 | ||
| COIL,IGNITION | 9 | 21121-1032 | 1 | ||
| CAP ASSY,SPARK PLUG | 10 | 21160-1009 | 1 | CANADA & U.K. | |
| CAP,SPARK PLUG | 11 | 21130-1006 | 1 | U.S. & EXPORT | |
| TERMINAL,PLUG CAP | 12 | 21169-001 | 1 | U.S. & EXPORT | |
| CLAMP,SPARK PLUG CAP | 13 | 92037-1173 | 1 | U.S. & EXPORT | |
| NUT | 14 | 92019-008 | 2 | ||
| WASHER PLAIN | 15 | 92022-024 | 2 | ||
| SPARK PLUG B8ES | 16 | B8ES | 1 | U.S. & EXPORT | |
| SPARK PLUG BR8ES | 16 | BR8ES | 1 | RESISTOR, CANADA & U.K. |
| STATOR ASSY | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLYWHEEL,MAGNETO | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X20 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 5MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X40 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| IGNITER | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL,IGNITION | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP ASSY,SPARK PLUG | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CANADA & U.K. |
| CAP,SPARK PLUG | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | U.S. & EXPORT |
| TERMINAL,PLUG CAP | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | U.S. & EXPORT |
| CLAMP,SPARK PLUG CAP | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | U.S. & EXPORT |
| NUT | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPARK PLUG B8ES | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | U.S. & EXPORT |
| SPARK PLUG BR8ES | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | RESISTOR, CANADA & U.K. |
