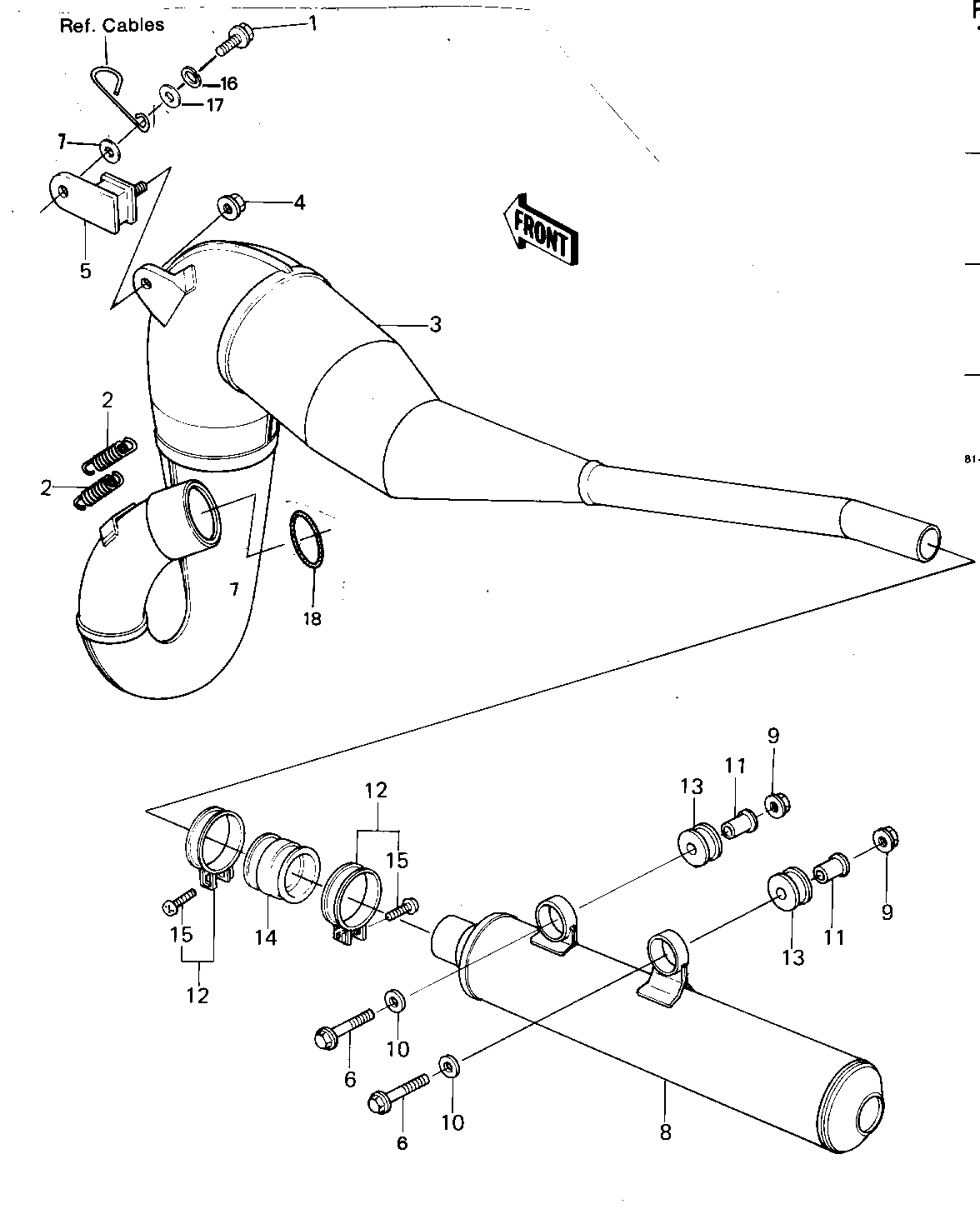

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SMALL-UPSET 8X25 | 1 | 115G0825 | 1 | ||
| SPRING-CONNECTOR | 2 | 18071-003 | 2 | ||
| BODY-COMP-MUFFLER,BLK | 3 | 18002-1136 | 1 | ||
| NUT,LOCK,8MM | 4 | 92015-1124 | 1 | ||
| DAMPER,MUFFLER FITING | 5 | 92075-1060 | 1 | ||
| BOLT,FLANGED,8X30 | 6 | 130G0830 | 2 | ||
| WASHER,8.5X20X1.6 | 7 | 92022-1561 | 1 | ||
| MUFFLER,F.BLACK | 8 | 18002-1163 | 1 | ||
| NUT,LOCK,8MM | 9 | 92015-1124 | 2 | ||
| WASHER,PLAIN | 10 | 92022-298 | 2 | ||
| COLLAR,FUEL TANK FITT | 11 | 92027-1134 | 2 | ||
| CLAMP,MUFFLER | 12 | 92037-177 | 2 | ||
| DAMPER,MUFFLER | 13 | 92075-1196 | 2 | ||
| DUST SHIELD,MUFFLER | 14 | 92093-1014 | 1 | ||
| SCREW-PAN-CROS,5X25 | 15 | 220B0525 | 2 | ||
| WASHER SPRING 8MM | 16 | 461F0800 | 1 | ||
| WASHER PLAIN 8MM | 17 | 410B0800 | 1 | ||
| "0" RING,55MM,MUFFLER | 18 | 92055-1057 | 1 |
